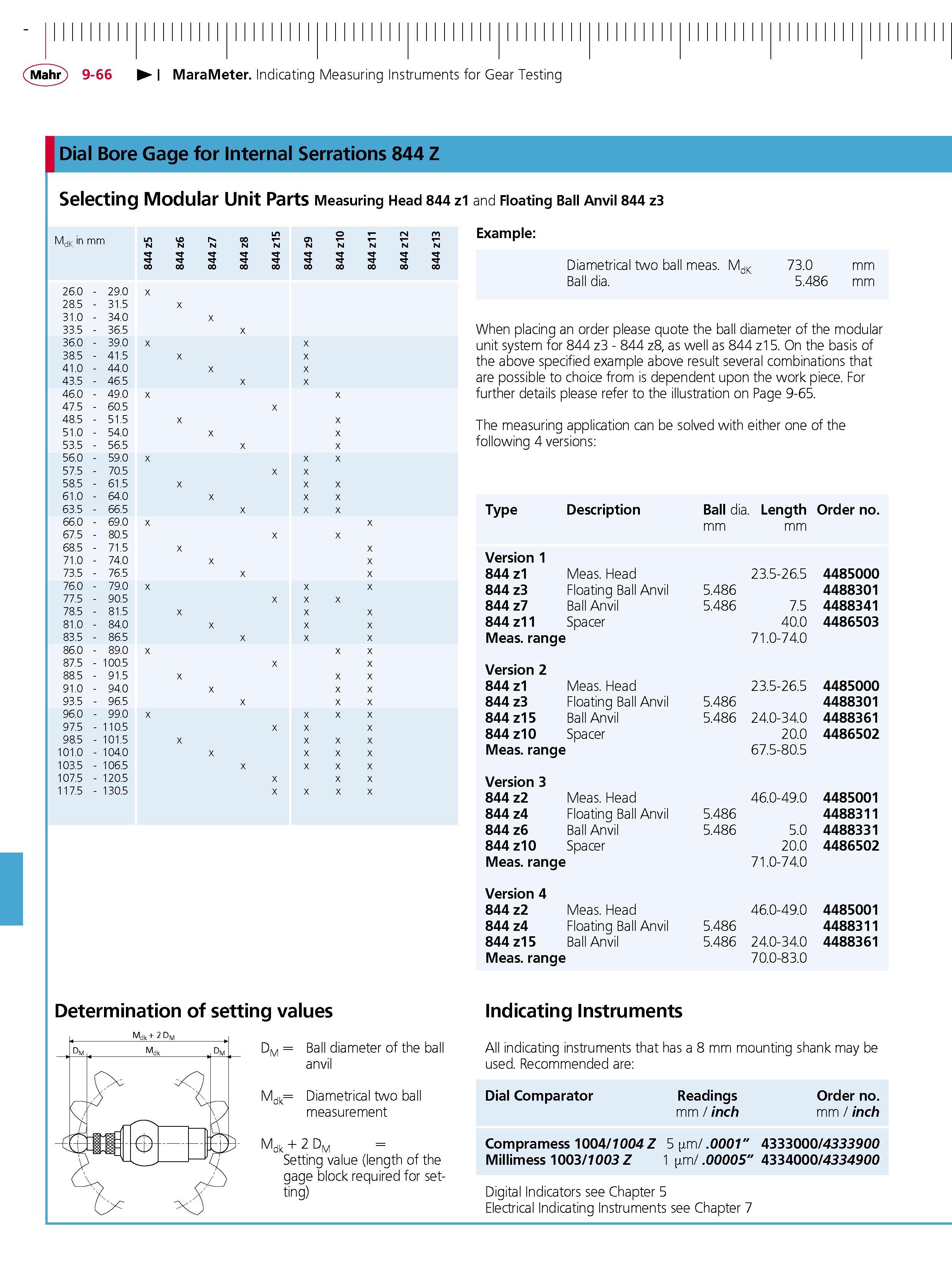

MaraMeter. Indicating Measuring Instruments for Gear Testing Dial Bore Gage for Internal Serrations 844 Z Selecting Modular Unit Parts Measuring Head 844 z1 and Floating Ball Anvil 844 z3 Example MdK in mm 26.0 28.5 31.0 33.5 36.0 38.5 41.0 43.5 46.0 47.5 48.5 51.0 53.5 56.0 57.5 58.5 61.0 63.5 66.0 67.5 68.5 71.0 73.5 76.0 77.5 78.5 81.0 83.5 86.0 87.5 88.5 91.0 93.5 96.0 97.5 98.5 - 29.0 - 31.5 - 34.0 - 36.5 - 39.0 - 41.5 - 44.0 - 46.5 - 49.0 - 60.5 - 51.5 - 54.0 - 56.5 - 59.0 - 70.5 - 61.5 - 64.0 - 66.5 - 69.0 - 80.5 - 71.5 - 74.0 - 76.5 - 79.0 - 90.5 - 81.5 - 84.0 - 86.5 - 89.0 - 100.5 - 91.5 - 94.0 - 96.5 - 99.0 - 110.5 - 101.5 101.0 - 104.0 103.5 - 106.5 107.5 - 120.5 117.5 - 130.5 Diametrical two ball meas. M Ball dia. dK 73.0 5.486 mm mm When placing an order please quote the ball diameter of the modular unit system for 844 z3 - 844 z8 as well as 844 z15. On the basis of the above specified example above result several combinations that are possible to choice from is dependent upon the work piece. For further details please refer to the illustration on Page 9-65. The measuring application can be solved with either one of the following 4 versions Type Description Ball dia . Length Order no. mm mm Version 1 844 z1 Meas. Head 23.5-26.5 4485000 844 z3 Floating Ball Anvil 5.486 4488301 844 z7 Ball Anvil 5.486 7.5 4488341 844 z11 Spacer 40.0 4486503 Meas. range 71.0-74.0 Version 2 844 z1 Meas. Head 23.5-26.5 4485000 844 z3 Floating Ball Anvil 5.486 4488301 844 z15 Ball Anvil 5.486 24.0-34.0 4488361 844 z10 Spacer 20.0 4486502 Meas. range 67.5-80.5 Version 3 844 z2 Meas. Head 46.0-49.0 4485001 844 z4 Floating Ball Anvil 5.486 4488311 844 z6 Ball Anvil 5.486 5.0 4488331 844 z10 Spacer 20.0 4486502 Meas. range 71.0-74.0 Version 4 844 z2 Meas. Head 46.0-49.0 4485001 844 z4 Floating Ball Anvil 5.486 4488311 844 z15 Ball Anvil 5.486 24.0-34.0 4488361 Meas. range 70.0-83.0 Determination of setting values Indicating Instruments Dm Ball diameter of the ball anvil Mdk Diametrical two ball measurement Mdk 2 dm Setting value (length of the gage block required for setting) All indicating instruments that has a 8 mm mounting shank may be used. Recommended are Dial Comparator Readings mm inch Order no. mm inch Compramess 1004 1004 Z 5 m .0001" 4333000 4333900 Millimess 1003 1003 Z 1 m .00005" 4334000 4334900 Digital Indicators see Chapter 5 Electrical Indicating Instruments see Chapter 7
