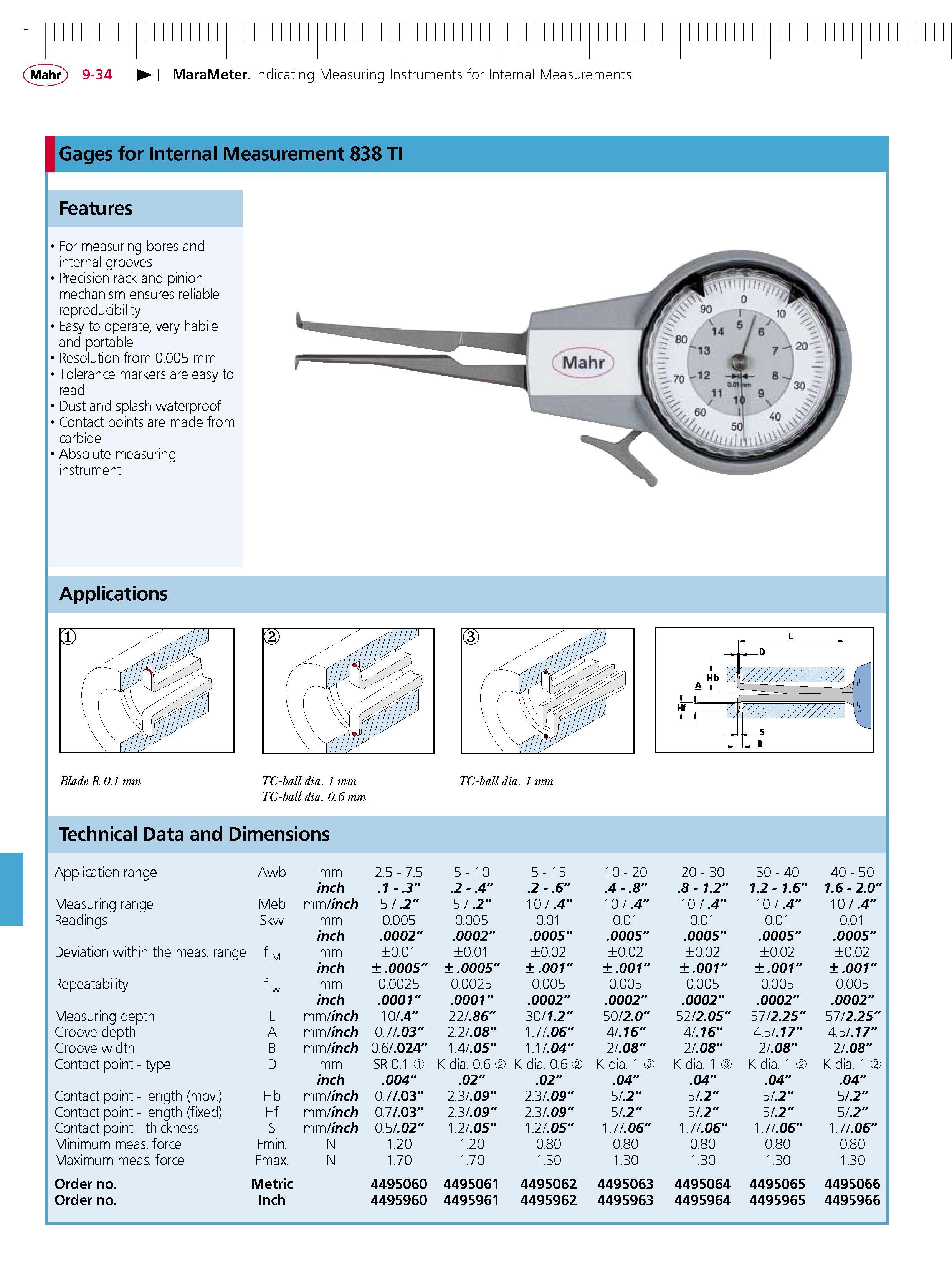

MaraMeter. Indicating Measuring Instruments for Internal Measurements Gages for Internal Measurement 838 TI Features For measuring bores and internal grooves Precision rack and pinion mechanism ensures reliable reproducibility Easy to operate very habile and portable Resolution from 0.005 mm Tolerance markers are easy to read Dust and splash waterproof Contact points are made from carbide Absolute measuring instrument Applications Blade R 0.1 mm TC-ball dia. 1 mm TC-balldia. 0.6mm TC-ball dia. 1 mm Technical Data and Dimensions Application range Measuring range Readings Deviation within the meas. range Repeatability Measuring depth Groove depth Groove width Contact point - type Contact point - length (mov.) Contact point - length (fixed) Contact point - thickness Minimum meas. force Maximum meas. force Order no. Order no. Awb mm 2.5 - 7.5 5 - 10 5 - 15 10 - 20 20 - 30 30 - 40 40 - 50 inch .1 - .3" .2 - .4" .2 - .6" .4 - .8" .8 -1.2" 1.2 -1.6" 1.6 - 2.0" Meb mm inch 5 .2" 5 .2" 10 .4" 10 .4" 10 .4" 10 .4" 10 .4" Skw mm 0.005 0.005 0.01 0.01 0.01 0.01 0.01 inch .0002" .0002" .0005" .0005" .0005" .0005" .0005" f M mm 0.01 0.01 0.02 0.02 0.02 0.02 0.02 inch .0005" .0005" .001" .001" .001" .001" .001" f w mm 0.0025 0.0025 0.005 0.005 0.005 0.005 0.005 inch .0001" .0001" .0002" .0002" .0002" .0002" .0002" L mm inch 10 .4" 22 .86" 30 1.2" 50 2.0" 52 2.05" 57 2.25" 57 2.25" A mm inch 0.7 .03" 2.2 .08" 17 .06" 4 .16" 4 .16" 4.5 .17" 4.5 .17" B mm inch 0.6 .024" 1.4 .05" 1.1 .04" 2 .08" 2 .08" 2 .08" 2 .08" D mm SR 0.1 K dia. 0.6 K dia. 0.6 K dia. 1 K dia. 1 K dia. 1 K dia. 1 inch .004" .02" .02" .04" .04" .04" .04" Hb mm inch 0.7 .03" 2.3 .09" 2.3 .09" 5 .2" 5 .2" 5 .2" 5 .2" Hf mm inch 0.7 .03" 2.3 .09" 2.3 .09" 5 .2" 5 .2" 5 .2" 5 .2" S mm inch 0.5 .02" 1.2 .05" 12 .05" 1.7 .06" 1.7 .06" 1.7 .06" 11 .06" Fmin. N 1.20 1.20 0.80 0.80 0.80 0.80 0.80 Fmax. N 1.70 1.70 1.30 1.30 1.30 1.30 1.30 Metric 4495060 4495061 4495062 4495063 4495064 4495065 4495066 Inch 4495960 4495961 4495962 4495963 4495964 4495965 4495966
