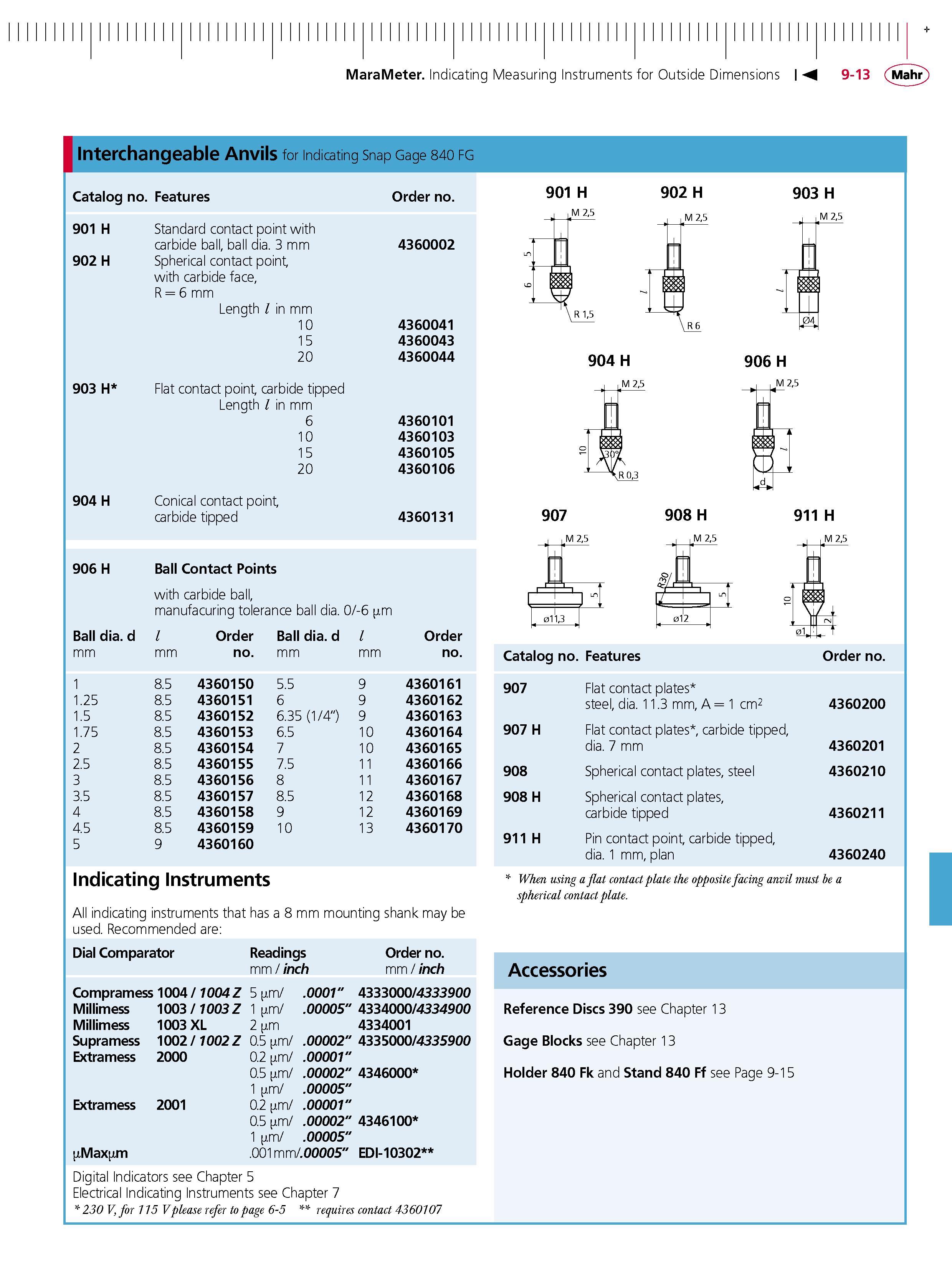

MaraMeter. Indicating Measuring Instruments for Outside Dimensions Interchangeable Anvils for Indicating Snap Gage 840 FG Catalog no. Features 901 H Standard contact point with carbide ball ball dia. 3 mm 902 H Spherical contact point with carbide face R 6 mm Length in mm 10 15 20 903 H Flat contact point carbide tipped Length in mm 6 10 15 20 904 H Conical contact point carbide tipped Order no. 4360002 4360041 4360043 4360044 4360101 4360103 4360105 4360106 4360131 906 H Ball Contact Points with carbide ball manufacuring tolerance ball dia. 0 -6 m Ball dia. d Order Ball dia. d Order mm mm no. mm mm no. 1 8.5 4360150 5.5 9 4360161 1.25 8.5 4360151 6 9 4360162 1.5 8.5 4360152 6.35 (1 4") 9 4360163 1.75 8.5 4360153 6.5 10 4360164 2 8.5 4360154 7 10 4360165 2.5 8.5 4360155 7.5 11 4360166 3 8.5 4360156 8 11 4360167 3.5 8.5 4360157 8.5 12 4360168 4 8.5 4360158 9 12 4360169 4.5 8.5 4360159 10 13 4360170 5 9 4360160 Indicating Instruments All indicating instruments that has a 8 mm mounting shank may be used. Recommended are Dial Comparator Compramess 1004 1004 Z Millimess 1003 1003 Z Millimess 1003 XL Supramess 1002 1002 Z Extramess 2000 Extramess 2001 Readings mm inch Max im 5 m 1 m 2 m 0.5 m 0.2 m 0.5 m 1 m 0.2 m 0.5 m 1 m .0001" .00005" .00002" .00001" .00002" .00005" .00001" .00002" .00005" .001 mm .00005" Order no. mm inch 4333000 4333900 4334000 4334900 4334001 4335000 4335900 4346000 4346100 EDI-10302 Digital Indicators see Chapter 5 Electrical Indicating Instruments see Chapter 7 230V for115 V please refer to page 6-5 requires contact 4360107 901 H M 25 902 H M 25 903 H M 25 R 15 R 6 w 904 H M 25 906 H M 25 907 M 25 908 H M 25 911 H M 25 Catalog no. Features Order no. 907 Flat contact plates steel dia. 11.3 mm A 1 cm2 4360200 907 H Flat contact plates carbide tipped dia. 7 mm 4360201 908 Spherical contact plates steel 4360210 908 H Spherical contact plates carbide tipped 4360211 911 H Pin contact point carbide tipped dia. 1 mm plan 4360240 When using a flat contact plate the opposite facing anvil must be a spherical contact plate. Accessories Reference Discs 390 see Chapter 13 Gage Blocks see Chapter 13 Holder 840 Fk and Stand 840 Ff see Page 9-15 011.3
