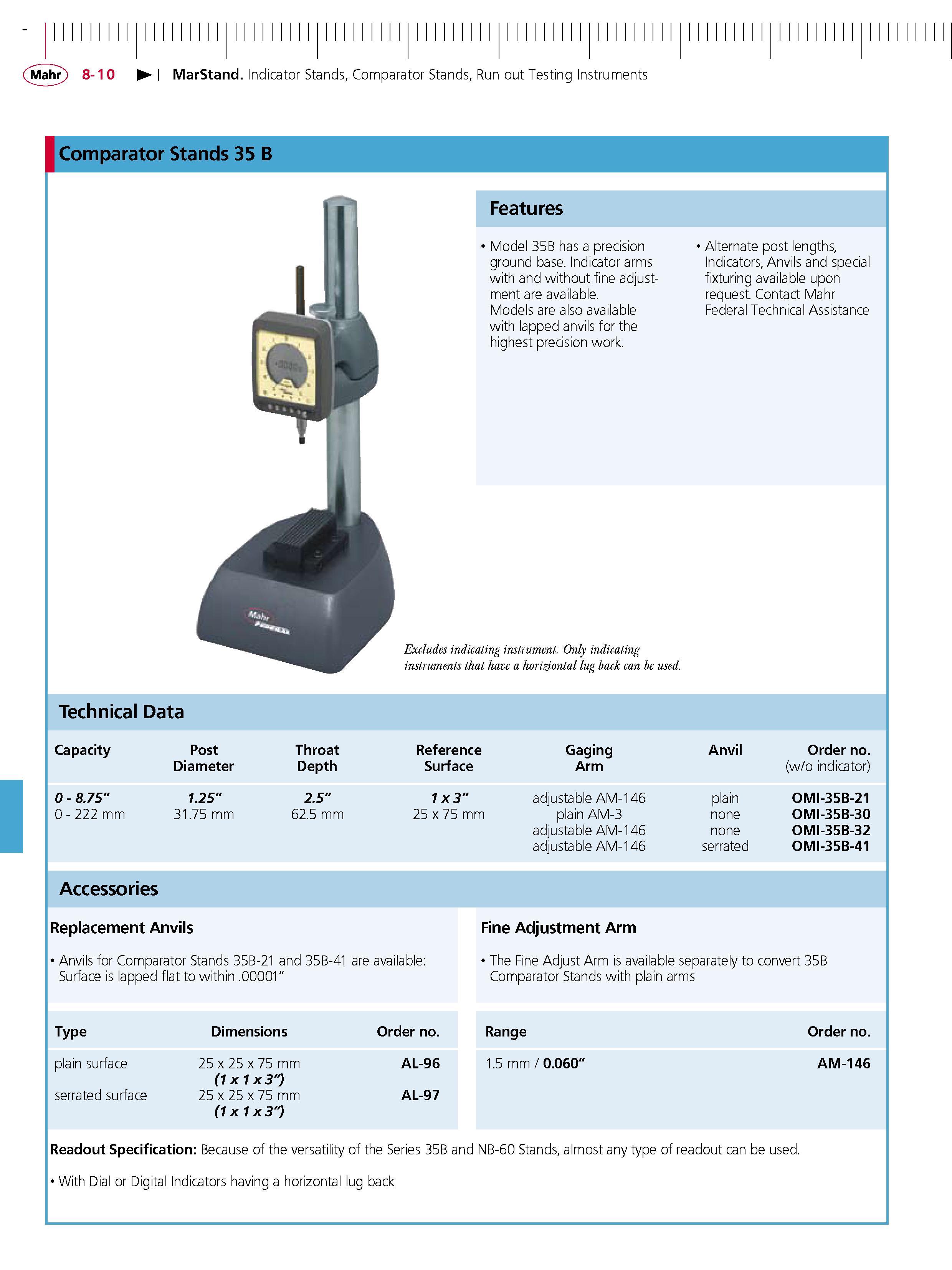

MarStand. Indicator Stands Comparator Stands Run out Testing Instruments Comparator Stands 35 B Features Model 35B has a precision ground base. Indicator arms with and without fine adjustment are available. Models are also available with lapped anvils for the highest precision work. Alternate post lengths Indicators Anvils and special fixturing available upon request. Contact Mahr Federal Technical Assistance Excludes indicating instrument. Only indicating instruments that have a horizontal lug back can be used. Technical Data Capacity Post Throat Reference Gaging Anvil Order no. Diameter Depth Surface Arm (w o indicator) 0 - 8.75" 1.25" 2.5" 1 x 3" adjustable AM-146 plain OMI-35B-21 0 - 222 mm 31.75 mm 62.5 mm 25 x 75 mm plain AM-3 none 0MI-35B-30 adjustable AM-146 none OMI-35B-32 adjustable AM-146 serrated OMI-35B-41 Accessories Replacement Anvils Anvils for Comparator Stands 35B-21 and 35B-41 are available Surface is lapped flat to within .00001" Type Dimensions Order no. plain surface 25 x 25 x 75 mm AL-96 (1 x 1 x 3") serrated surface 25 x 25 x 75 mm AL-97 (1 x 1 x 3") Fine Adjustment Arm The Fine Adjust Arm is available separately to convert 35B Comparator Stands with plain arms Range Order no. 1.5 mm 0.060" AM-146 Readout Specification Because of the versatility of the Series 35B and NB-60 Stands almost any type of readout can be used. With Dial or Digital Indicators having a horizontal lug back
