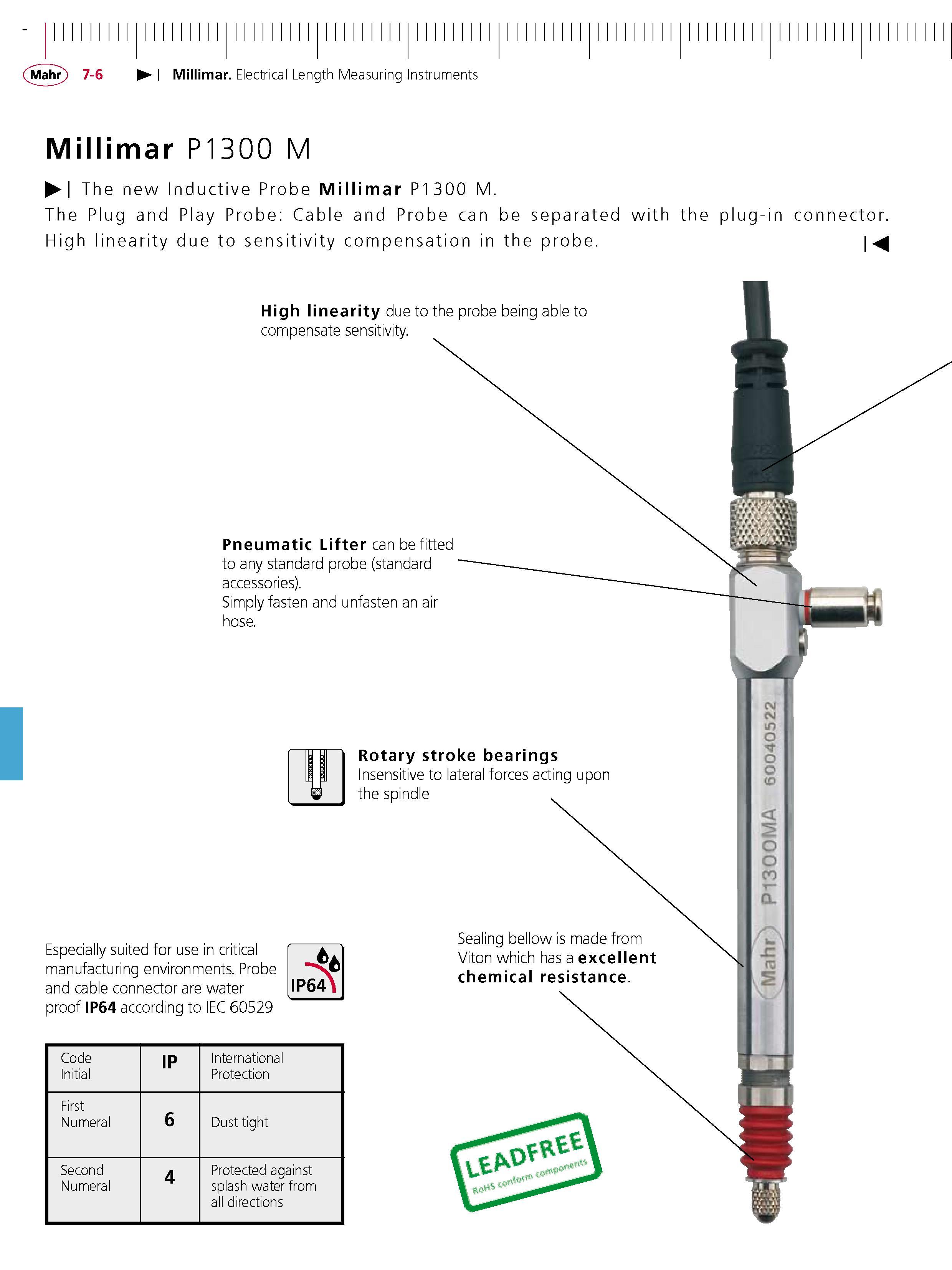

Millimar. Electrical Length Measuring Instruments Millimar P1300 M The new Inductive Probe Millimar P1 300 M. The Plug and Play Probe Cable and Probe can be separated with the plug-in connector. High linearity due to sensitivity compensation in the probe. High linearity due to the probe being able to compensate sensitivity. Pneumatic Lifter can be fitted to any standard probe (standard accessories). Simply fasten and unfasten an air hose. Especially suited for use in critical manufacturing environments. Probe and cable connector are water proof IP64 according to IEC 60529 IP64 Code Initial IP International Protection First Numeral 6 Dust tight Second Numeral 4 Protected against splash water from all directions Rotary stroke bearings Insensitive to lateral forces acting upon the spindle Sealing bellow is made from Viton which has a excellent chemical resistance.
