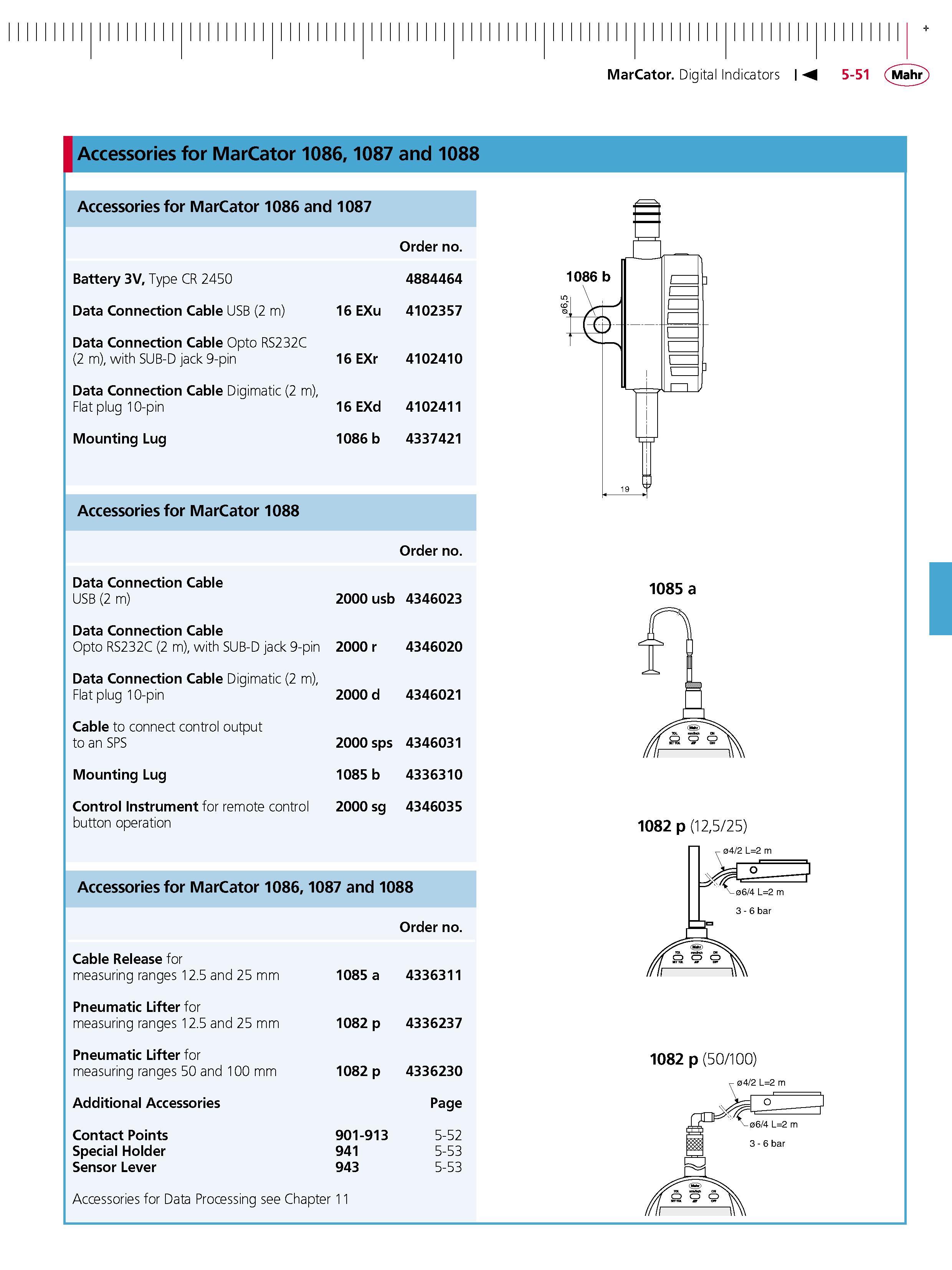

MarCator. Digital Indicators T Accessories for MarCator 1086 1087 and 1088 Accessories for MarCator 1086 and 1087 Order no. Battery 3V Type CR 2450 4884464 Data Connection Cable USB (2 m) 16 EXu 4102357 Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin 16 EXr 4102410 Data Connection Cable Digimatic (2 m) Flat plug 10-pin 16 EXd 4102411 Mounting Lug 1086 b 4337421 Accessories for MarCator 1088 Order no. Data Connection Cable USB (2 m) 2000 usb 4346023 Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin 2000 r 4346020 Data Connection Cable Digimatic (2 m) Flat plug 10-pin 2000 d 4346021 Cable to connect control output to an SPS 2000 sps 4346031 Mounting Lug 1085 b 4336310 Control Instrument for remote control button operation 2000 sg 4346035 Accessories for MarCator 1086 1087 and 1088 Order no. Cable Release for measuring ranges 12.5 and 25 mm 1085 a 4336311 Pneumatic Lifter for measuring ranges 12.5 and 25 mm 1082 p 4336237 Pneumatic Lifter for measuring ranges 50 and 100 mm 1082 p 4336230 Additional Accessories Page Contact Points Special Holder Sensor Lever 901-913 941 943 5-52 5-53 5-53 Accessories for Data Processing see Chapter 11 1086 b 1085 a 1082 p (125 25) - 04 2 L2 m -06 4 L2 m 3 - 6 bar 1082 p (50 100) - 04 2 L2 m
