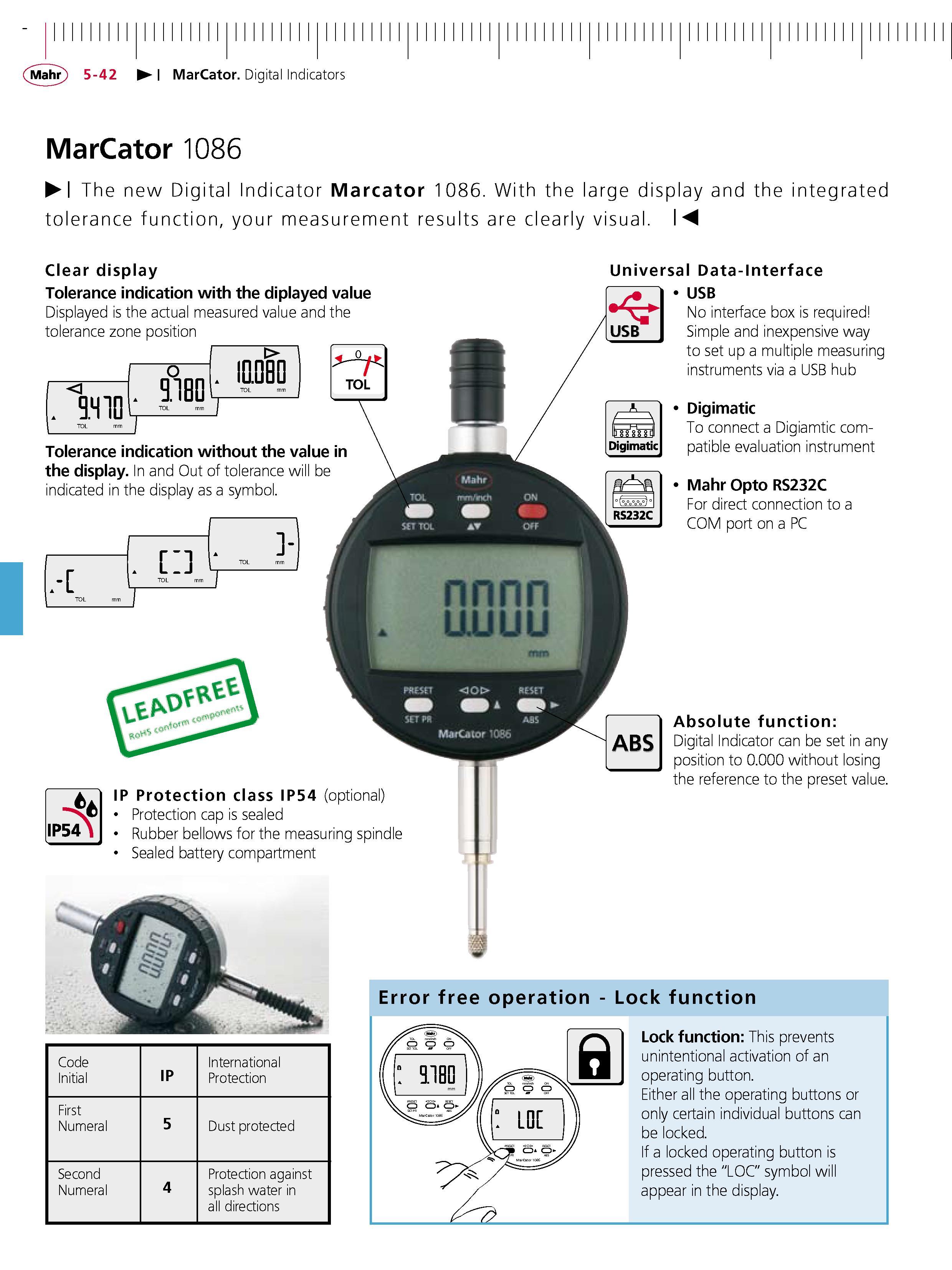

MarCator. Digital Indicators MarCator 1086 The new Digital Indicator Marcator 1086. With the large display and the integrated tolerance function your measurement results are clearly visual. 1 Clear display Tolerance indication with the diplayed value Displayed is the actual measured value and the tolerance zone position . Inn . flBD 1X Tolerance indicat ion without the value in the display. In and Out of tolerance will be indicated in the display as a symbol. - Universal Data-Interface ' USB No interface box is required Simple and inexpensive way to set up a multiple measuring instruments via a USB hub 1 Digimatic To connect a Digiamtic compatible evaluation instrument 1 Mahr Opto RS232C For direct connection to a COM port on a PC 6a IP Protection class IP54 (optional) Protection cap is sealed IP54 i Rubber bellows for the measuring spindle Sealed battery compartment 1 Absolute function Digital Indicator can be set in any position to 0.000 without losing the reference to the preset value. Error free operation - Lock function Code Initial P International Protection First Numeral 5 Dust protected Second 4 Protection against Numeral splash water in all directions Lock function This prevents unintentional activation of an operating button. Either all the operating buttons or only certain individual buttons can be locked. If a locked operating button is pressed the "LOC" symbol will appear in the display.
