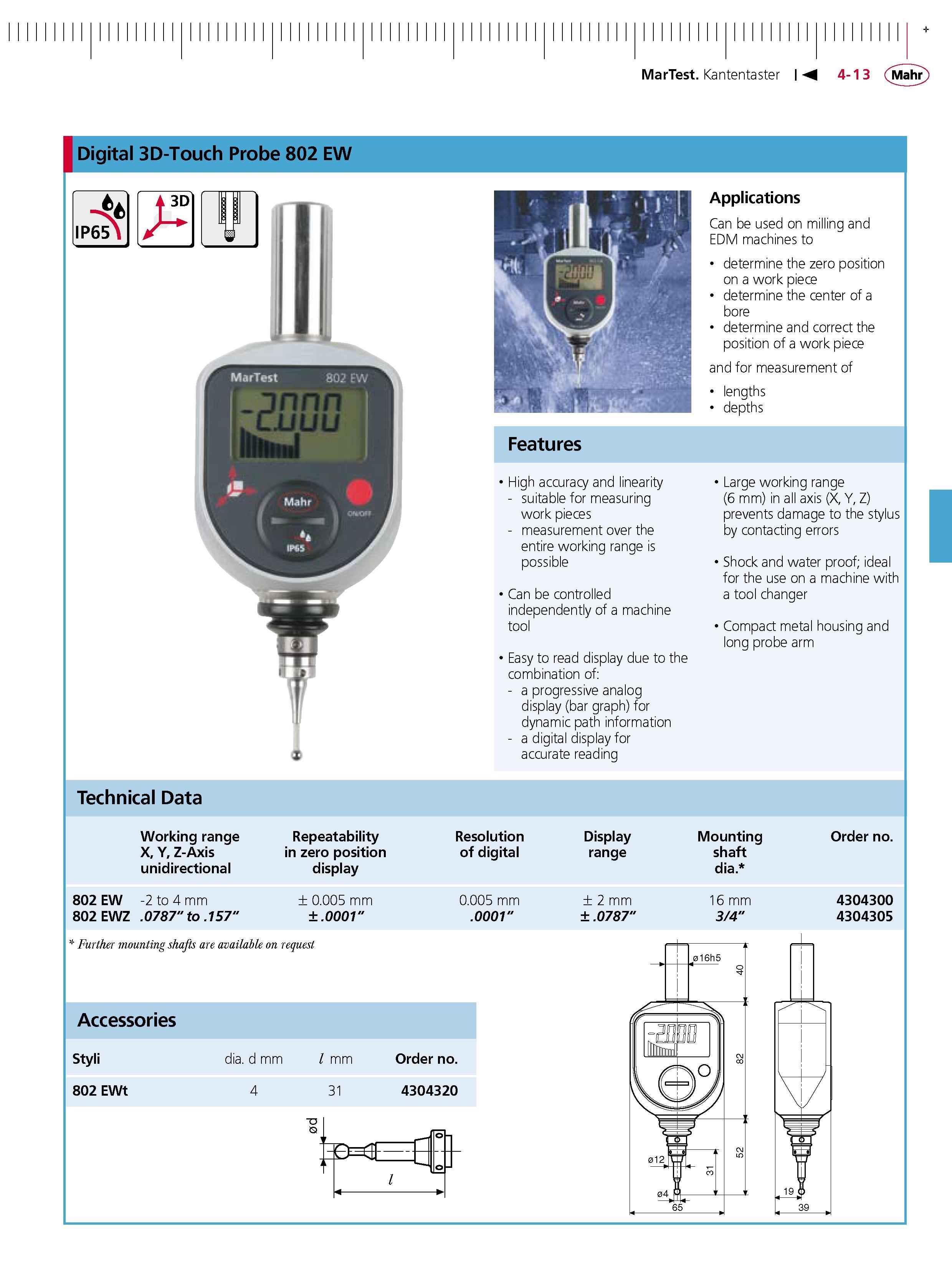

MarTest. Kantentaster IM Digital 3D-Touch Probe 802 EW 3D IP65 Wariest fMahr Applications Can be used on milling and EDM machines to determine the zero position on a work piece determine the center of a bore determine and correct the position of a work piece and for measurement of lengths depths Features High accuracy and linearity - suitable for measuring work pieces - measurement over the entire working range is possible Can be controlled independently of a machine tool Easy to read display due to the combination of - a progressive analog display (bar graph) for dynamic path information - a digital display for accurate reading Large working range (6 mm) in all axis (X Y Z) prevents damage to the stylus by contacting errors Shock and water proof; ideal for the use on a machine with a tool changer Compact metal housing and long probe arm Technical Data Working range Repeatability Resolution Display Mounting Order no. X Y Z-Axis in zero position of digital range shaft unidirectional display dia. 802 EW -2 to 4 mm 0.005 mm 0.005 mm 2 mm 16 mm 4304300 802 EWZ .0787" to .157" .0001" .0001" .0787" 3 4" 4304305 Further mounting shafts are available on request rh j r Accessories Styli dia. d mm mm Order no. 802 EWt 4 31 4304320 TD Q 191 59 .
