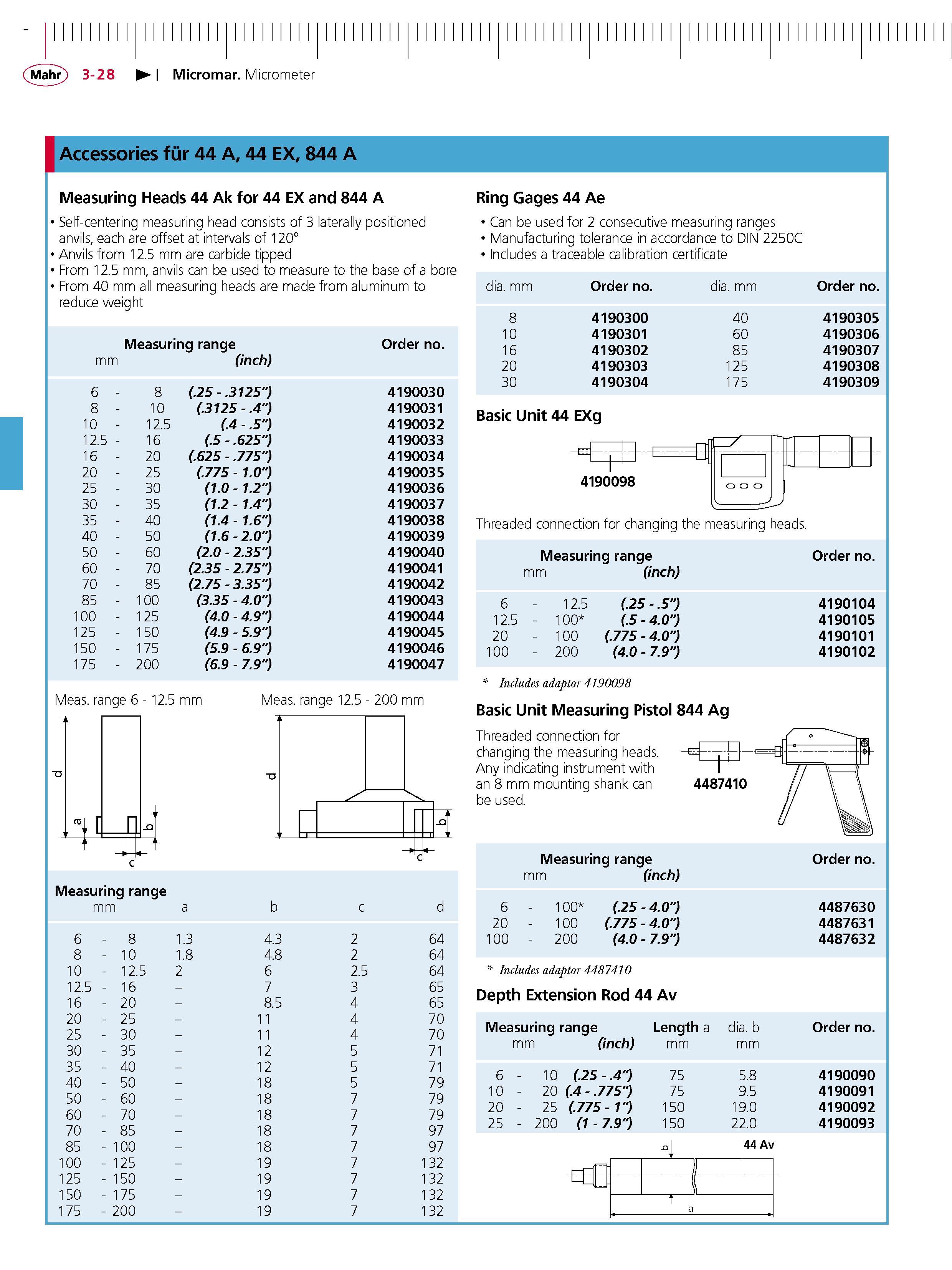

Micromar. Micrometer Accessories fur 44 A 44 EX 844 A Measuring range Order no. mm (inch) 6 - 8 (.25 - .3125") 4190030 8 - 10 (.3125 - .4") 4190031 10 - 12.5 (.4 - .5") 4190032 12.5 - 16 (.5 - .625") 4190033 16 - 20 (.625 - .775") 4190034 20 - 25 (.775 -1.0") 4190035 25 - 30 (1.0 -1.2") 4190036 30 - 35 (1.2 -1.4") 4190037 35 - 40 (1.4 -1.6") 4190038 40 - 50 (1.6 - 2.0") 4190039 50 - 60 (2.0 - 2.35") 4190040 60 - 70 (2.35 - 2.75") 4190041 70 - 85 (2.75 - 3.35") 4190042 85 - 100 (3.35 - 4.0") 4190043 100 - 125 (4.0 - 4.9") 4190044 125 - 150 (4.9 - 5.9") 4190045 150 - 175 (5.9 - 6.9") 4190046 175 - 200 (6.9 - 7.9") 4190047 Measuring Heads 44 Ak for 44 EX and 844 A Self-centering measuring head consists of 3 laterally positioned anvils each are offset at intervals of 120 Anvils from 12.5 mm are carbide tipped From 12.5 mm anvils can be used to measure to the base of a bore From 40 mm all measuring heads are made from aluminum to reduce weight Meas. range 6 - 12.5 mm Meas. range 12.5 - 200 mm n Measuring range mm 6 - 8 1.3 4.3 2 64 8 - 10 1.8 4.8 2 64 10 - 12.5 2 6 2.5 64 12.5 - 16 - 7 3 65 16 - 20 - 8.5 4 65 20 - 25 - 11 4 70 25 - 30 - 11 4 70 30 - 35 - 12 5 71 35 - 40 - 12 5 71 40 - 50 - 18 5 79 50 - 60 - 18 7 79 60 - 70 - 18 7 79 70 - 85 - 18 7 97 85 - 100 - 18 7 97 100 - 125 - 19 7 132 125 - 150 - 19 7 132 150 - 175 - 19 7 132 175 - 200 - 19 7 132 Ring Gages 44 Ae Can be used for 2 consecutive measuring ranges Manufacturing tolerance in accordance to DIN 2250C Includes a traceable calibration certificate dia. mm Order no. dia. mm Order no. 8 4190300 40 4190305 10 4190301 60 4190306 16 4190302 85 4190307 20 4190303 125 4190308 30 4190304 175 4190309 Basic Unit 44 EXg 4190098 Threaded connection for changing the measuring heads. Measuring range Order no. mm (inch) 6 - 12.5 (.25 - .5") 4190104 12.5 - 100 (.5 - 4.0") 4190105 20 - 100 (.775 - 4.0") 4190101 100 - 200 (4.0 - 7.9") 4190102 Includes adaptor 4190098 Basic Unit Measuring Pistol 844 Ag Threaded connection for changing the measuring heads. Any indicating instrument with an 8 mm mounting shank can be used. t 4487410 Measuring range Order no. mm (inch) 6 - 100 (.25 - 4.0") 4487630 20 - 100 (.775 - 4.0") 4487631 100 - 200 (4.0 - 7.9") 4487632 Includes adaptor 4487410 Depth Extension Rod 44 Av Measuring range Length a dia. b Order no. mm (inch) mm mm 6 - 10 (.25 - .4") 75 5.8 4190090 10 - 20 (.4 - .775") 75 9.5 4190091 20 - 25 (.775 - 1") 150 19.0 4190092 25 - 200 (1 - 7.9") 150 22.0 4190093 44 Av n J Li 1 T a b d a c
