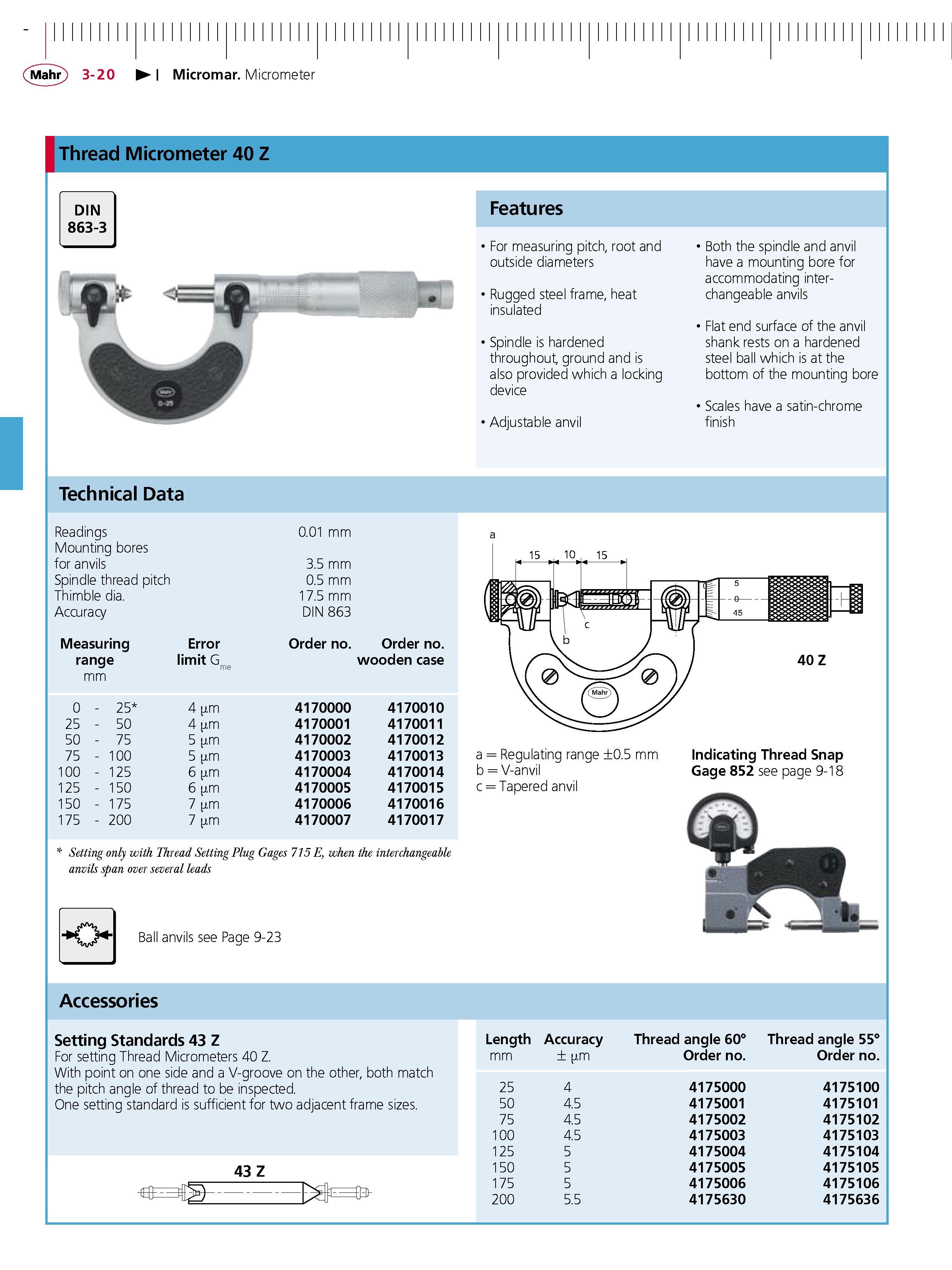

Micromar. Micrometer Thread Micrometer 40 Z Features For measuring pitch root and outside diameters Rugged steel frame heat insulated Spindle is hardened throughout ground and is also provided which a locking device Adjustable anvil Both the spindle and anvil have a mounting bore for accommodating interchangeable anvils Flat end surface of the anvil shank rests on a hardened steel ball which is at the bottom of the mounting bore Scales have a satin-chrome finish Technical Data Readings 0.01 mm Mounting bores for anvils 3.5 mm Spindle thread pitch 0.5 mm Thimble dia. 17.5 mm Accuracy DIN 863 Measuring Error Order no. Order no. range limit G me wooden case mm 0 - 25 4 m 4170000 4170010 25 - 50 4 m 4170001 4170011 50 - 75 5 m 4170002 4170012 75 - 100 5 m 4170003 4170013 100 - 125 6 m 4170004 4170014 125 - 150 6 m 4170005 4170015 150 - 175 7 m 4170006 4170016 175 - 200 7 m 4170007 4170017 15 10 15 a Regulating range 0.5 mm Indicating Thread Snap b V-anvil Gage 852 see page 9-18 c Tapered anvil Setting only with Thread Setting Plug Gages 715 E when the interchangeable anvils span over several leads Ball anvils see Page 9-23 Accessories Setting Standards 43 Z For setting Thread Micrometers 40 Z. With point on one side and a V-groove on the other both match the pitch angle of thread to be inspected. One setting standard is sufficient for two adjacent frame sizes. 43 Z Length Accuracy Thread angle 60 Thread angle 55 mm m Order no. Order no. 25 4 4175000 4175100 50 4.5 4175001 4175101 75 4.5 4175002 4175102 100 4.5 4175003 4175103 125 5 4175004 4175104 150 5 4175005 4175105 175 5 4175006 4175106 200 5.5 4175630 4175636 a
