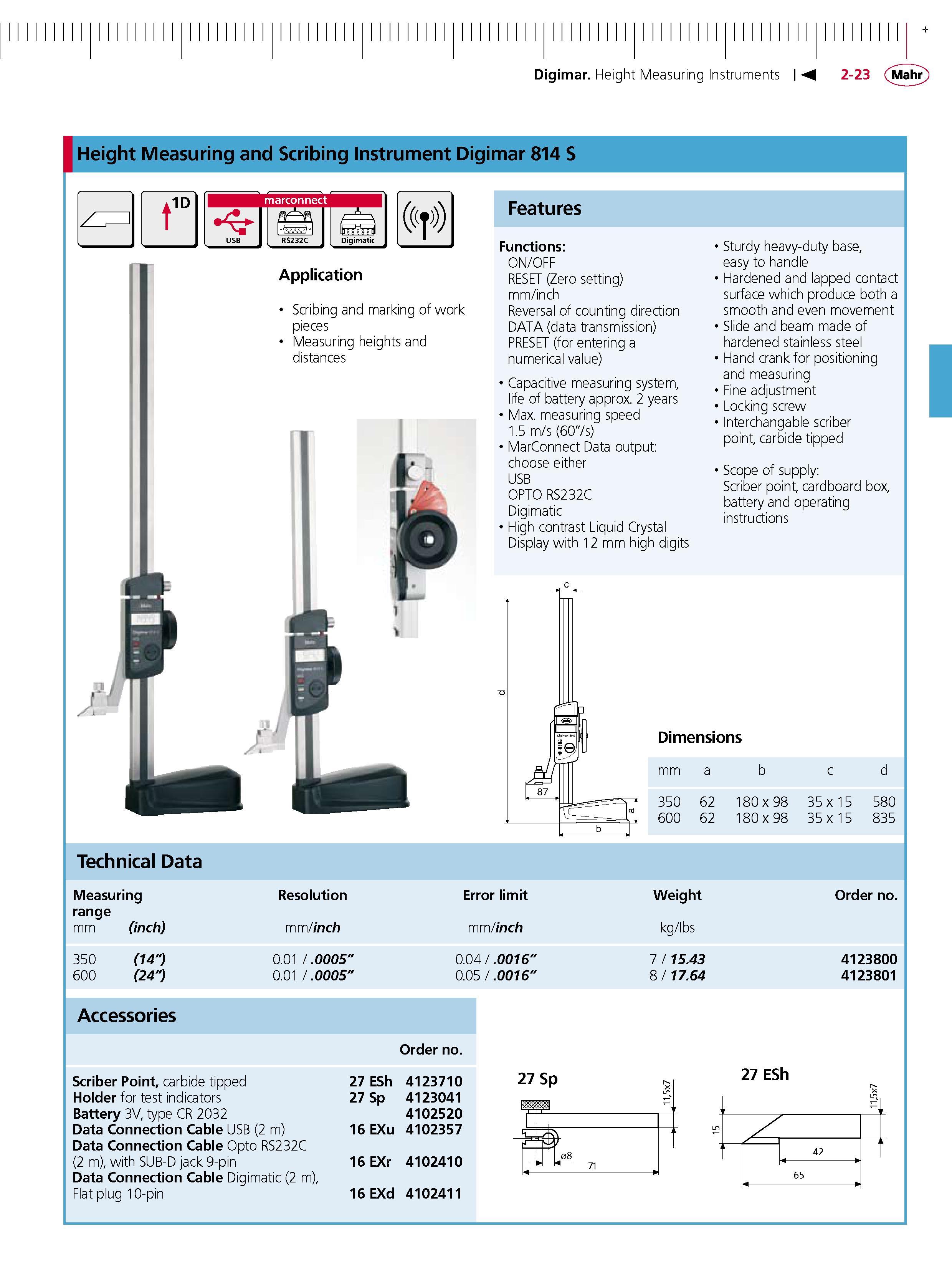

Digimar. Height Measuring Instruments Height Measuring and Scribing Instrument Digimar 814 S t 1D marconnect ((f) Scribing and marking of work pieces Measuring heights and distances A Features Functions ON OFF RESET (Zero setting) mm inch Reversal of counting direction DATA (data transmission) PRESET (for entering a numerical value) Capacitive measuring system life of battery approx. 2 years Max. measuring speed 1.5 m s (60" s) MarConnect Data output choose either USB OPTO RS232C Digimatic High contrast Liquid Crystal Display with 12 mm high digits Sturdy heavy-duty base easy to handle Hardened and lapped contact surface which produce both a smooth and even movement Slide and beam made of hardened stainless steel Hand crank for positioning and measuring Fine adjustment Locking screw Interchangable scriber point carbide tipped Scope of supply Scriber point cardboard box battery and operating instructions Dimensions mm a b c d 350 62 180 x 98 35 x 15 580 600 62 180 x 98 35 x 15 835 Technical Data Measuring range mm (inch) 350 600 (14") (24') Resolution mm inch 0.01 .0005" 0.01 .0005" Error limit mm inch 0.04 .0016" 0.05 .0016" Weight kg lbs 7 15.43 8 17.64 Order no. 4123800 4123801 Accessories Scriber Point carbide tipped Holder for test indicators Battery 3V type CR 2032 Data Connection Cable USB (2 m) Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin Data Connection Cable Digimatic (2 m) Flat plug 10-pin Order no. 27 ESh 4123710 27 Sp 4123041 4102520 16 EXu 4102357 16 EXr 4102410 16 EXd 4102411 27 Sp 27 ESh -si- 42 08 65
