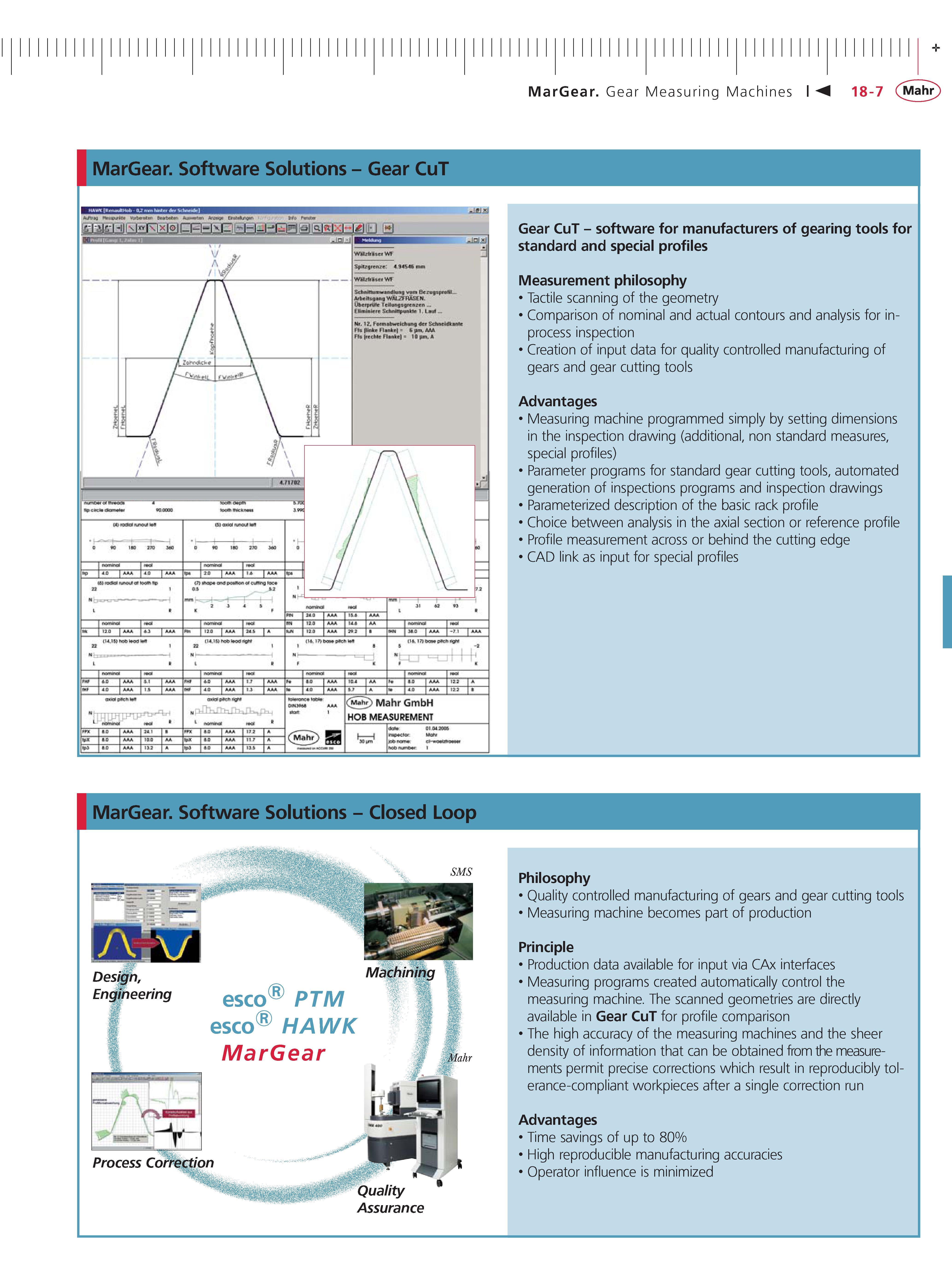

MarGear. Gear Measuring Machines MarGear. Software Solutions - Gear CuT Gear CuT - software for manufacturers of gearing tools for standard and special profiles Measurement philosophy Tactile scanning of the geometry Comparison of nominal and actual contours and analysis for inprocess inspection Creation of input data for quality controlled manufacturing of gears and gear cutting tools Advantages Measuring machine programmed simply by setting dimensions in the inspection drawing (additional non standard measures special profiles) Parameter programs for standard gear cutting tools automated generation of inspections programs and inspection drawings Parameterized description of the basic rack profile Choice between analysis in the axial section or reference profile Profile measurement across or behind the cutting edge CAD link as input for special profiles MarGear. Software Solutions - Closed Loop SMS esco PTM esco HAWK MarGear Process Correction Quality Assurance Philosophy Quality controlled manufacturing of gears and gear cutting tools Measuring machine becomes part of production Principle Production data available for input via CAx interfaces Measuring programs created automatically control the measuring machine. The scanned geometries are directly available in Gear CuT for profile comparison The high accuracy of the measuring machines and the sheer density of information that can be obtained from the measurements permit precise corrections which result in reproducibly tolerance-compliant workpieces after a single correction run Advantages Time savings of up to 80% High reproducible manufacturing accuracies Operator influence is minimized
