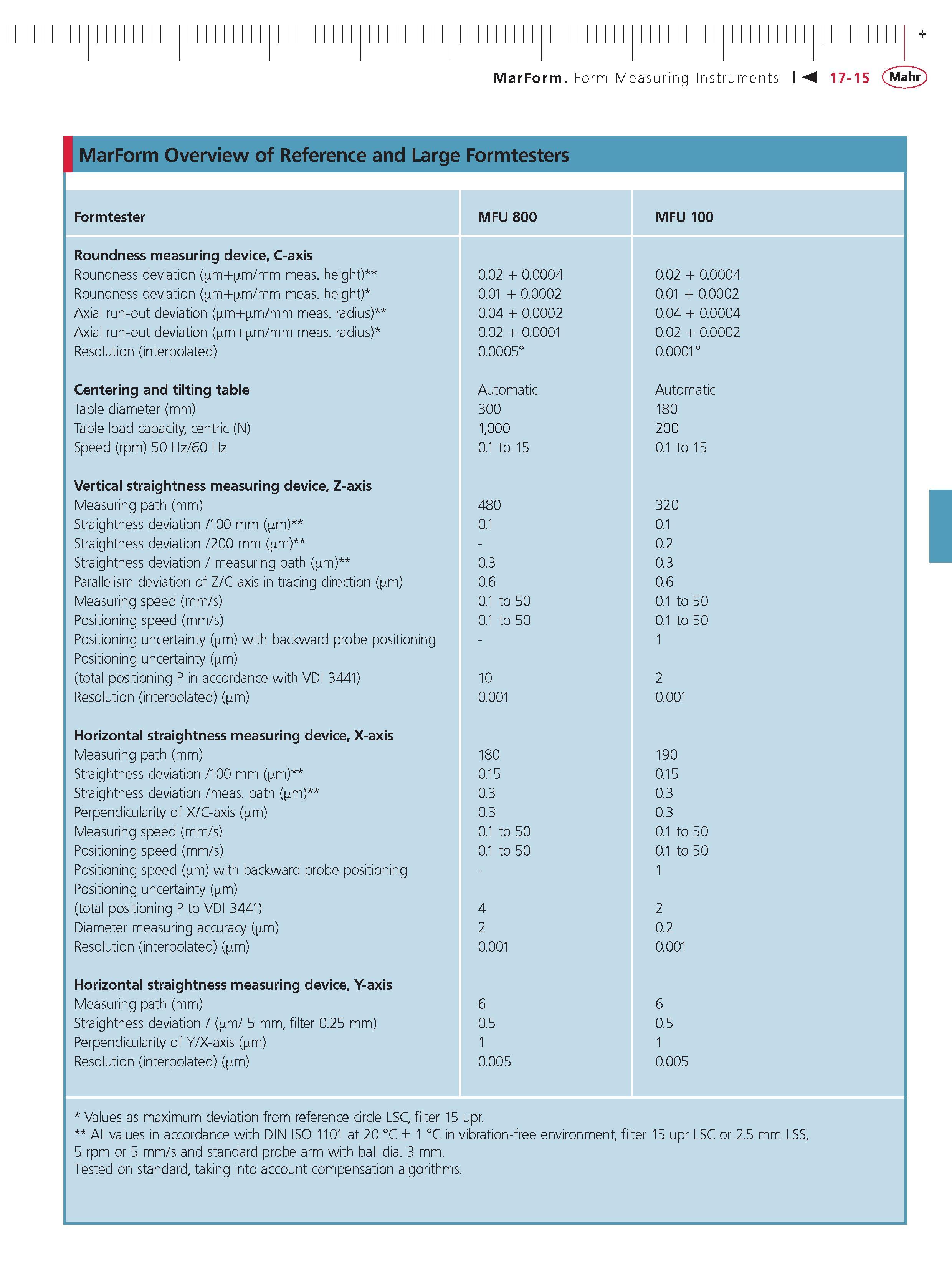

MarForm Overview of Reference and Large Formtesters Formtester MFU 800 MFU 100 Roundness measuring device C-axis Roundness deviation ( m+ m mm meas. height) 0.02 0.0004 0.02 0.0004 Roundness deviation ( m+ m mm meas. height) 0.01 0.0002 0.01 0.0002 Axial run-out deviation ( m+ m mm meas. radius) 0.04 0.0002 0.04 0.0004 Axial run-out deviation ( m+ m mm meas. radius) 0.02 0.0001 0.02 0.0002 Resolution (interpolated) 0.0005 0.0001 Centering and tilting table Automatic Automatic Table diameter (mm) 300 180 Table load capacity centric (N) 1000 200 Speed (rpm) 50 Hz 60 Hz 0.1 to 15 0.1 to 15 Vertical straightness measuring device Z-axis Measuring path (mm) 480 320 Straightness deviation 100 mm ( m) 0.1 0.1 Straightness deviation 200 mm ( m) - 0.2 Straightness deviation measuring path ( m) 0.3 0.3 Parallelism deviation of Z C-axis in tracing direction ( m) 0.6 0.6 Measuring speed (mm s) 0.1 to 50 0.1 to 50 Positioning speed (mm s) 0.1 to 50 0.1 to 50 Positioning uncertainty ( m) with backward probe positioning - 1 Positioning uncertainty ( m) (total positioning P in accordance with VDI 3441) 10 2 Resolution (interpolated) ( m) 0.001 0.001 Horizontal straightness measuring device X-axis Measuring path (mm) 180 190 Straightness deviation 100 mm ( m) 0.15 0.15 Straightness deviation meas. path ( m) 0.3 0.3 Perpendicularity of X C-axis ( m) 0.3 0.3 Measuring speed (mm s) 0.1 to 50 0.1 to 50 Positioning speed (mm s) 0.1 to 50 0.1 to 50 Positioning speed ( m) with backward probe positioning - 1 Positioning uncertainty ( m) (total positioning P to VDI 3441) 4 2 Diameter measuring accuracy ( m) 2 0.2 Resolution (interpolated) ( m) 0.001 0.001 Horizontal straightness measuring device Y-axis Measuring path (mm) 6 6 Straightness deviation ( m 5 mm filter 0.25 mm) 0.5 0.5 Perpendicularity of Y X-axis ( m) 1 1 Resolution (interpolated) ( m) 0.005 0.005 Values as maximum deviation from reference circle LSC filter 15 upr. All values in accordance with DIN ISO 1101 at 20 C 1 C in vibration-free environment filter 15 upr LSC or 2.5 mm LSS 5 rpm or 5 mm s and standard probe arm with ball dia. 3 mm. Tested on standard taking into account compensation algorithms.
