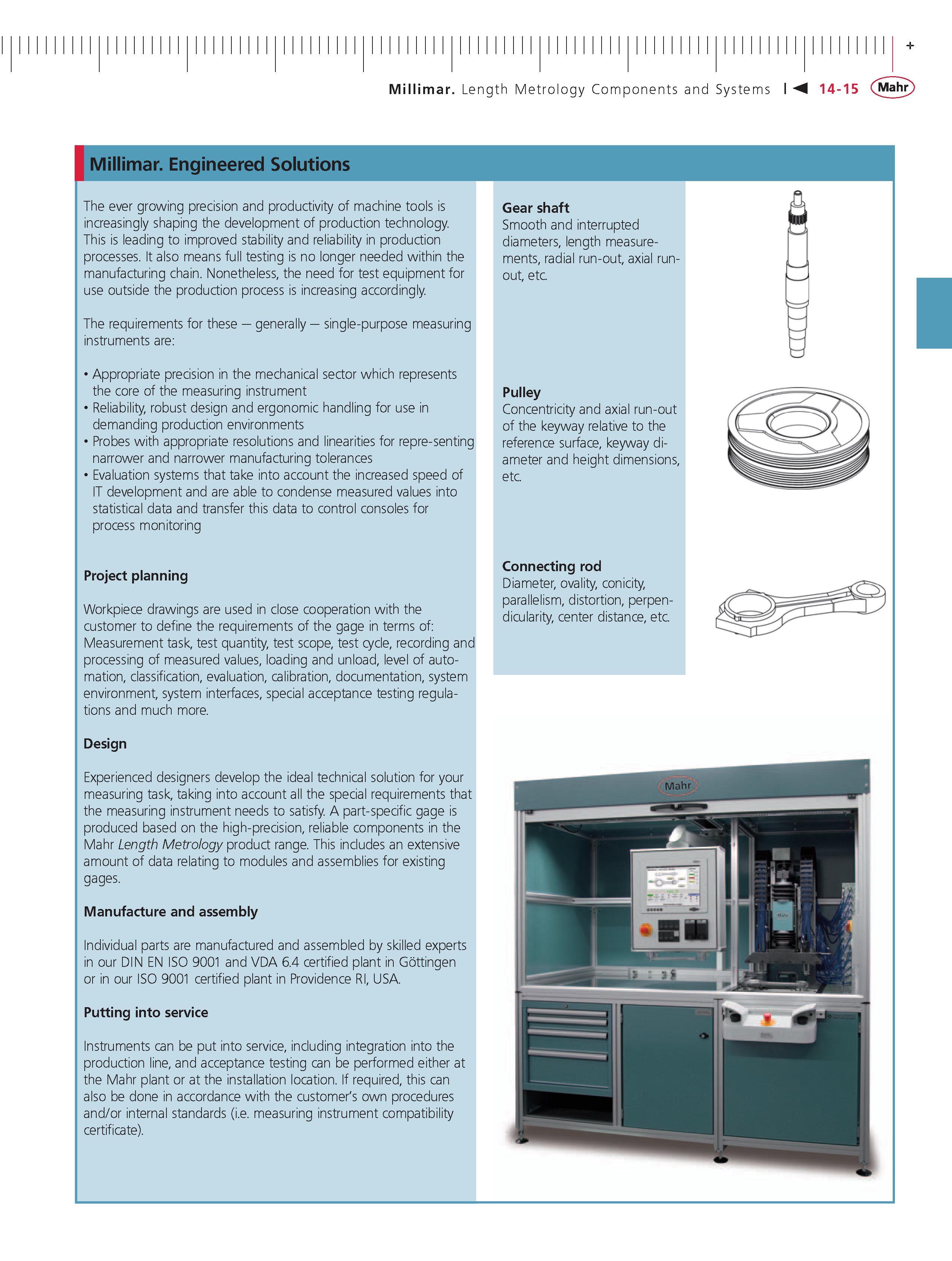

Millimar. Length Metrology Components and Systems Millimar. Engineered Solutions The ever growing precision and productivity of machine tools is increasingly shaping the development of production technology. This is leading to improved stability and reliability in production processes. It also means full testing is no longer needed within the manufacturing chain. Nonetheless the need for test equipment for use outside the production process is increasing accordingly. The requirements for these generally single-purpose measuring instruments are Gear shaft Smooth and interrupted diameters length measurements radial run-out axial runout etc. Appropriate precision in the mechanical sector which represents the core of the measuring instrument Reliability robust design and ergonomic handling for use in demanding production environments Probes with appropriate resolutions and linearities for repre-senting narrower and narrower manufacturing tolerances Evaluation systems that take into account the increased speed of IT development and are able to condense measured values into statistical data and transfer this data to control consoles for process monitoring Pulley Concentricity and axial run-out of the keyway relative to the reference surface keyway diameter and height dimensions etc. Project planning Workpiece drawings are used in close cooperation with the customer to define the requirements of the gage in terms of Measurement task test quantity test scope test cycle recording and processing of measured values loading and unload level of automation classification evaluation calibration documentation system environment system interfaces special acceptance testing regulations and much more. Design Experienced designers develop the ideal technical solution for your measuring task taking into account all the special requirements that the measuring instrument needs to satisfy. A part-specific gage is produced based on the high-precision reliable components in the Mahr Length Metrology product range. This includes an extensive amount of data relating to modules and assemblies for existing gages. Manufacture and assembly Individual parts are manufactured and assembled by skilled experts in our DIN EN ISO 9001 and VDA 6.4 certified plant in Gottingen or in our ISO 9001 certified plant in Providence RI USA. Putting into service Instruments can be put into service including integration into the production line and acceptance testing can be performed either at the Mahr plant or at the installation location. If required this can also be done in accordance with the customer's own procedures and or internal standards (i.e. measuring instrument compatibility certificate). Connecting rod Diameter ovality conicity parallelism distortion perpendicularity center distance etc.
