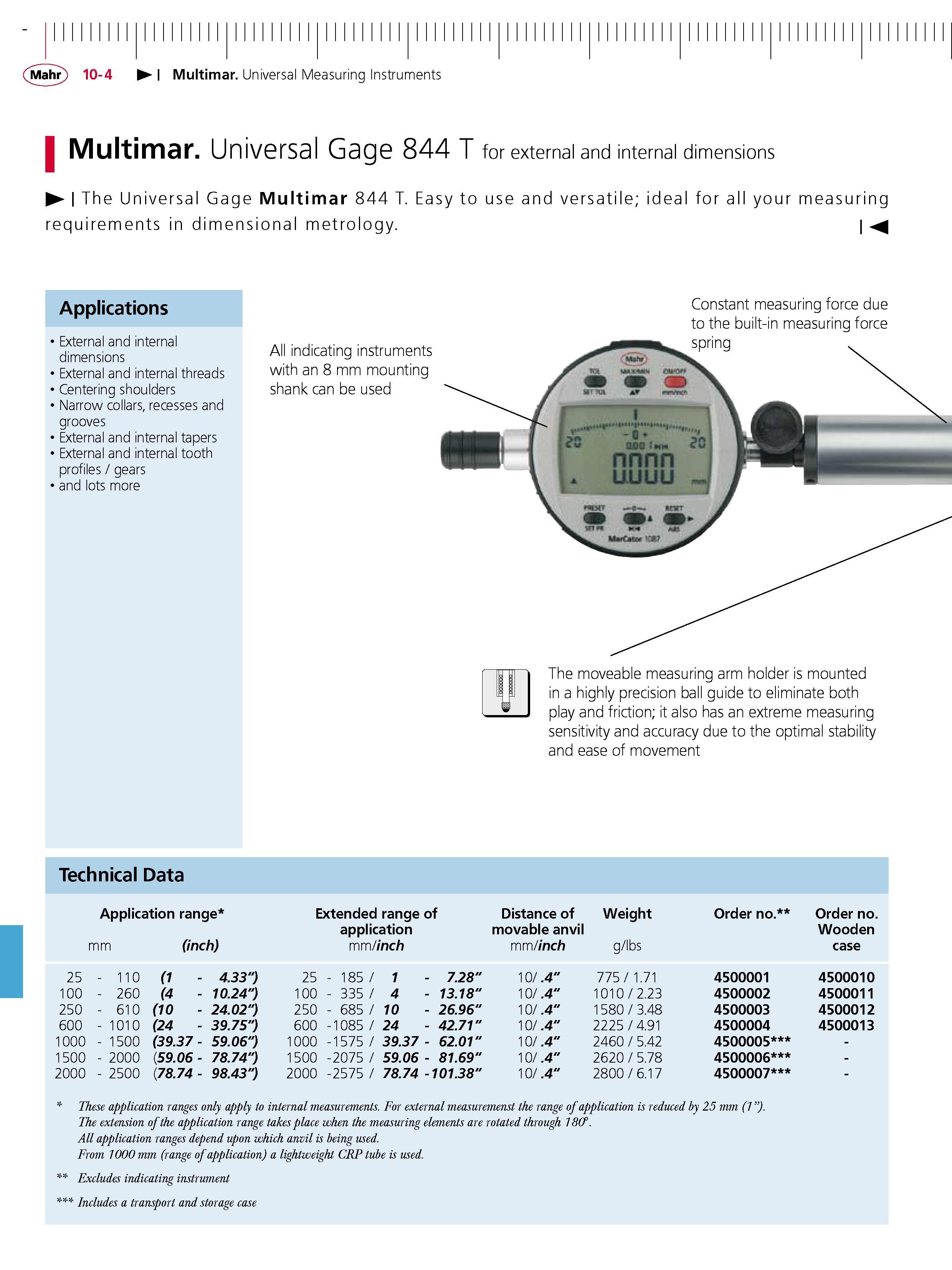

Multimar. Universal Measuring Instruments Multimar. Universal Gage 844 T for external and internal dimensions The Universal Gage Multimar 844 T. Easy to use and versatile; ideal for all your measuring requirements in dimensional metrology. Applications External and internal dimensions External and internal threads Centering shoulders Narrow collars recesses and grooves External and internal tapers External and internal tooth profiles gears and lots more All indicating instruments with an 8 mm mounting shank can be used Constant measuring force due to the built-in measuring force spring The moveable measuring arm holder is mounted in a highly precision ball guide to eliminate both play and friction; it also has an extreme measuring sensitivity and accuracy due to the optimal stability and ease of movement Technical Data Application range Extended range of Distance of Weight Order no. Order no. application movable anvil Wooden mm (inch) mm inch mm inch g lbs case 25 - 110 (1 - 4.33") 25 - 185 1 - 7.28" 10 .4" 775 1.71 4500001 4500010 100 - 260 (4 - 10.24") 100-335 4 - 13.18" 10 .4" 1010 2.23 4500002 4500011 250 - 610 (10 - 24.02") 250 - 685 10 - 26.96" 10 .4" 1580 3.48 4500003 4500012 600 - 1010 (24 - 39.75") 600 -1085 24 - 42.71" 10 .4" 2225 4.91 4500004 4500013 1000 - 1500 (39.37 - 59.06") 1000 -1575 39.37 - 62.01" 10 .4" 2460 5.42 4500005 - 1500 - 2000 (59.06 - 78.74") 1500 -2075 59.06 - 81.69" 10 .4" 2620 5.78 4500006 - 2000 - 2500 (78.74 - 98.43") 2000 -2575 78.74 - 101.38" 10 .4" 2800 6.17 4500007 - These application ranges only apply to internal measurements. For external measuremenst the range ofapplication is reduced by 25 mm (1). The extension of the application range takes place when the measuring elements are rotated through 180. All application ranges depend upon which anvil is being used. From 1000 mm (range ofapplication) a lightweight CRP tube is used. Excludes indicating instrument Includes a transport and storage case
