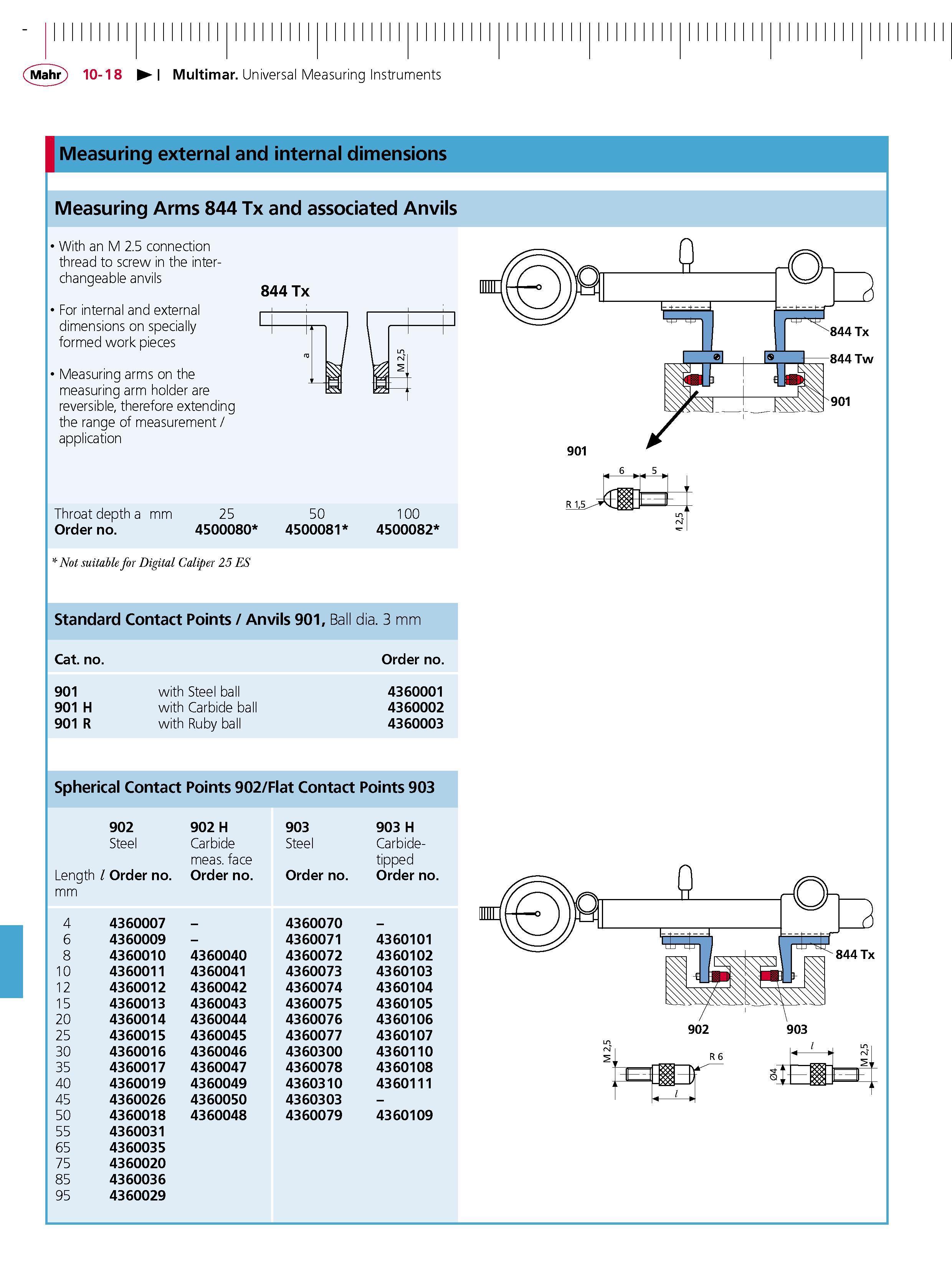

Multimar. Universal Measuring Instruments Measuring external and internal dimensions Measuring Arms 844 Tx and associated Anvils With an M 2.5 connection thread to screw in the interchangeable anvils For internal and external dimensions on specially formed work pieces Measuring arms on the measuring arm holder are reversible therefore extending the range of measurement application 844 Tx Throat depth a mm Order no. 25 4500080 50 4500081 100 4500082 Not suitable for Digital Caliper 25 ES Standard Contact Points Anvils 901 Ball dia. 3 mm Cat. no. 901 901 H 901 R with Steel ball with Carbide ball with Ruby ball Order no. 4360001 4360002 4360003 Spherical Contact Points 902 Flat Contact Points 903 902 902 H 903 903 H Steel Carbide Steel Carbide- meas. face tipped Length Order no. Order no. Order no. Order no. mm 4 4360007 4360070 - 6 4360009 - 4360071 4360101 8 4360010 4360040 4360072 4360102 10 4360011 4360041 4360073 4360103 12 4360012 4360042 4360074 4360104 15 4360013 4360043 4360075 4360105 20 4360014 4360044 4360076 4360106 25 4360015 4360045 4360077 4360107 30 4360016 4360046 4360300 4360110 35 4360017 4360047 4360078 4360108 40 4360019 4360049 4360310 4360111 45 4360026 4360050 4360303 - 50 4360018 4360048 4360079 4360109 55 4360031 65 4360035 75 4360020 85 4360036 95 4360029
