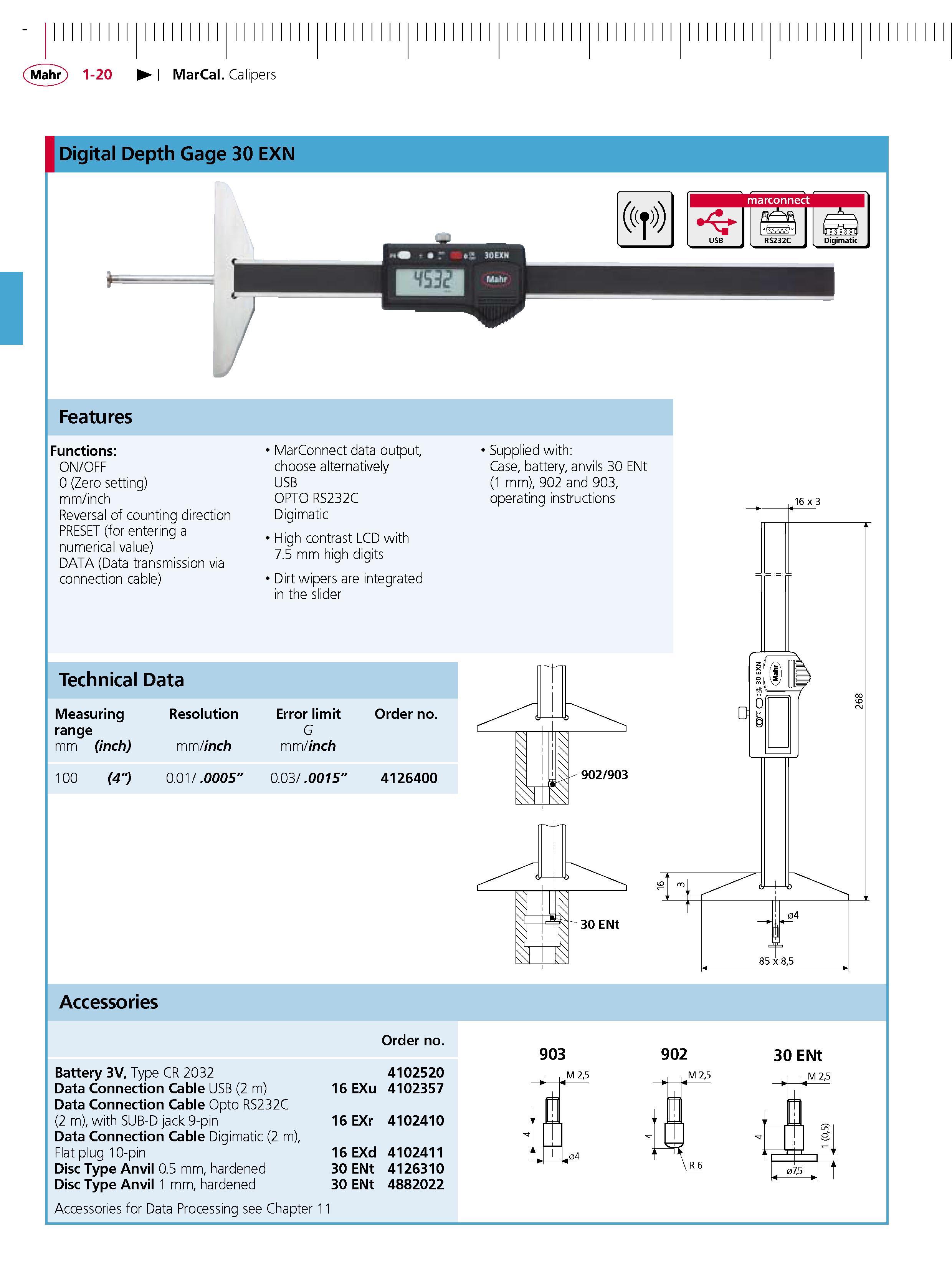

MarCal. Calipers Digital Depth Gage 30 EXN Features Functions ON OFF 0 (Zero setting) mm inch Reversal of counting direction PRESET (for entering a numerical value) DATA (Data transmission via connection cable) MarConnect data output choose alternatively USB OPTO RS232C Digimatic High contrast LCD with 7.5 mm high digits Dirt wipers are integrated in the slider Supplied with Case battery anvils 30 ENt (1 mm) 902 and 903 operating instructions 16 x 3 Technical Data Measuring Resolution Error limit Order no. range mm (inch) mm inch G mm inch 100 (4") 0.01 .0005" 0.03 .0015" 4126400 Accessories Battery 3V Type CR 2032 Data Connection Cable USB (2 m) Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin Data Connection Cable Digimatic (2 m) Flat plug 10-pin Disc Type Anvil 0.5 mm hardened Disc Type Anvil 1 mm hardened Accessories for Data Processing see Chapter 11 Order no. 4102520 16 EXu 4102357 16 EXr 4102410 16 EXd 4102411 30 ENt 4126310 30 ENt 4882022 903 902 30 ENt
