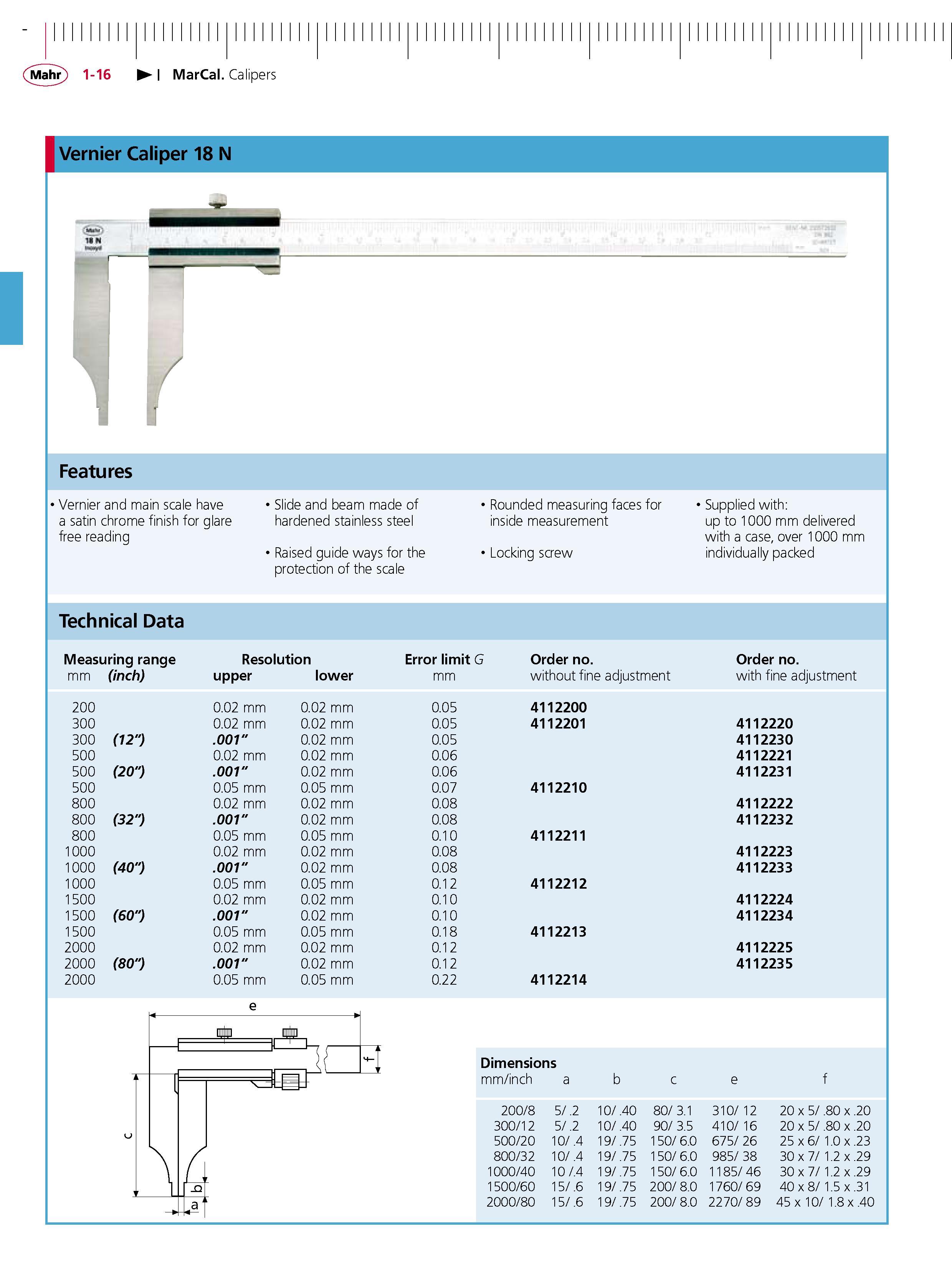

MarCal. Calipers Vernier Caliper 18 N Features Vernier and main scale have a satin chrome finish for glare free reading Slide and beam made of hardened stainless steel Raised guide ways for the protection of the scale Rounded measuring faces for inside measurement Locking screw Supplied with up to 1000 mm delivered with a case over 1000 mm individually packed Technical Data Measuring range Resolution Error limit G Order no. Order no. mm (inch) upper lower mm without fine adjustment with fine adjustment 200 0.02 mm 0.02 mm 0.05 4112200 300 0.02 mm 0.02 mm 0.05 4112201 4112220 300 (12") .001" 0.02 mm 0.05 4112230 500 0.02 mm 0.02 mm 0.06 4112221 500 (20") .001" 0.02 mm 0.06 4112231 500 0.05 mm 0.05 mm 0.07 4112210 800 0.02 mm 0.02 mm 0.08 4112222 800 (32") .001" 0.02 mm 0.08 4112232 800 0.05 mm 0.05 mm 0.10 4112211 1000 0.02 mm 0.02 mm 0.08 4112223 1000 (40") .001" 0.02 mm 0.08 4112233 1000 0.05 mm 0.05 mm 0.12 4112212 1500 0.02 mm 0.02 mm 0.10 4112224 1500 (60") .001" 0.02 mm 0.10 4112234 1500 0.05 mm 0.05 mm 0.18 4112213 2000 0.02 mm 0.02 mm 0.12 4112225 2000 (80") .001" 0.02 mm 0.12 4112235 2000 0.05 mm 0.05 mm 0.22 4112214 Dimensions mm inch a b c e f 200 8 5 .2 10 .40 80 3.1 310 12 20 x 5 .80 x .20 300 12 5 .2 10 .40 90 3.5 410 16 20 x 5 .80 x .20 500 20 10 .4 19 .75 150 6.0 675 26 25 x 6 1.0 x .23 800 32 10 .4 19 .75 150 6.0 985 38 30 x 7 1.2 x .29 1000 40 10 .4 19 .75 150 6.0 1185 46 30 x 7 1.2 x .29 1500 60 15 .6 19 .75 200 8.0 1760 69 40 x 8 1.5 x .31 2000 80 15 .6 19 .75 200 8.0 2270 89 45 x 10 1.8 x .40 e
