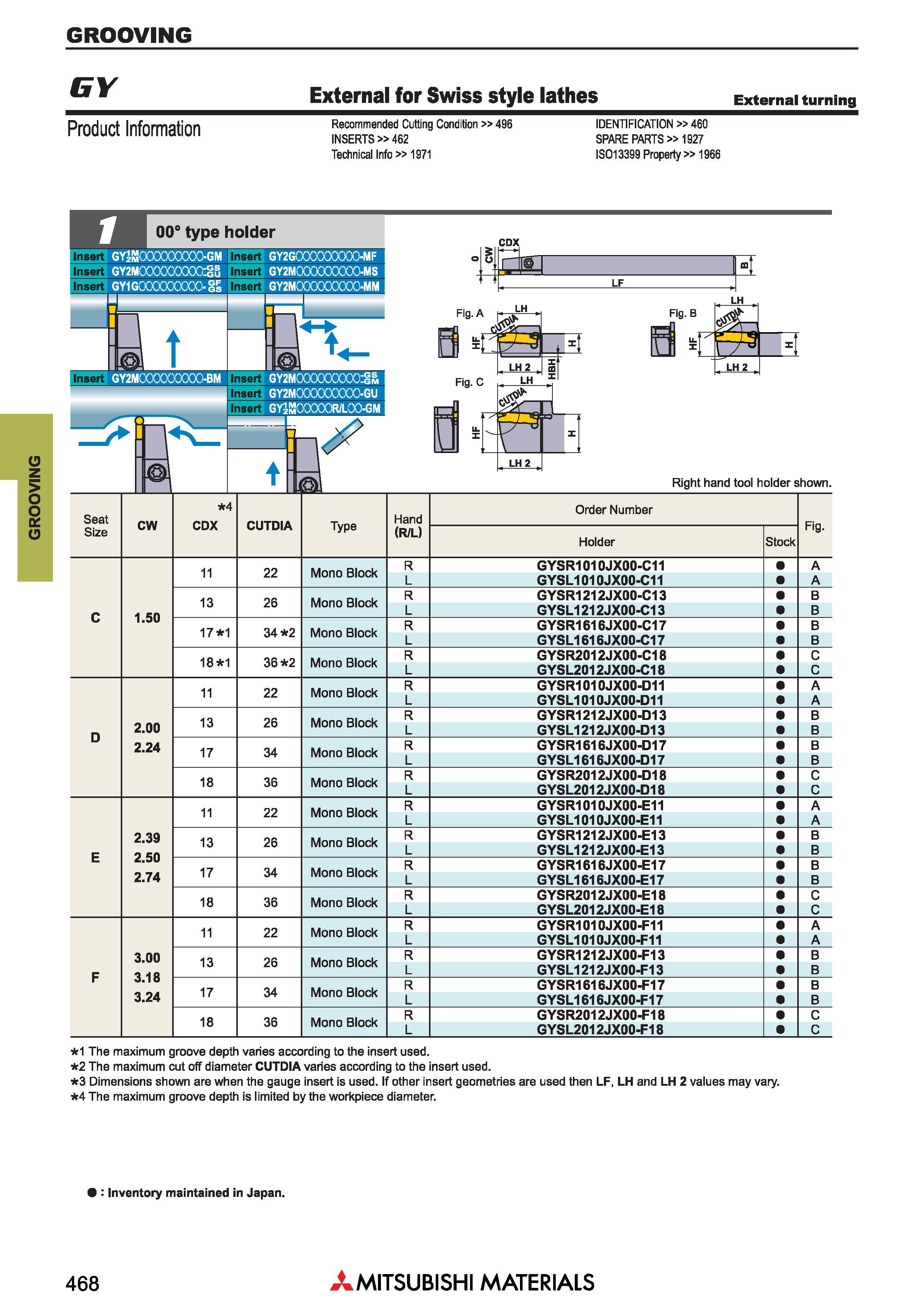

Токарные канавочные резцы Mitsubishi для наружного и внутреннего точения GROOVING _ External for Swiss style lathes External turning Prnrliirt Infnrmatinn Recommended Cutting Condition 496 IDENTIFICATION 460 INSERTS 462 Запасные части для металлорежущего инструмента SPARE PARTS 1927 Technical Info 1971 ISO 13399 Property 1966 00° type holder Insert Insert Insert GYlSJCXXXXXXOO-GM GY2M CXE8S Insert Insert Insert GY2G000000000-MF GY2M000000000-MS GY2M000000000-MM 5 o I W 00 LF T aIVIVAAAAAAAA -GM GY2MOOOOCCCCO-GU GYJmOOOOOR/LOO-GM Fig. B xT , LH2 „ Показан металлорежущий инструмент правого исполнения Right hand tool holder shown. Seat Size CW 4 CDX CUTDIA Type Hand (R/L) Обозначение Order Number Holder Stock Fig- 1.50 11 22 Mono Block R L GYSR1010JX00-C11 GYSL1010JX00-C11 13 26 Mono Block R L GYSR1212JX00-C13 GYSL1212JX00-C13 17 1 34 2 Mono Block R L GYSR1616JX00-C17 GYSL1616JX00-C17 18 1 36 2 Mono Block R L GYSR2012JX00-C18 GYSL2012JX00-C18 A A B B B B A A B B B B A A B B B B A A B B B B 2.00 2.24 11 22 Mono Block R L GYSR1010JX00-D11 GYSL1010JX00-D11 13 26 Mono Block R L G YS R1212 JX00-D13 GYSL1212JX00-D13 17 34 Mono Block R L GYSR1616JX00-D17 GYSL1616JX00-D17 18 36 Mono Block R L GYSR2012JX00-D18 GYSL2012JX00-D18 2.39 2.50 2.74 11 22 Mono Block R L GYSR1010JX00-E11 GYSL1010JX00-E11 13 26 Mono Block R L GYSR1212JX00-E13 GYSL1212JX00-E13 17 34 Mono Block R L GYSR1616JX00-E17 GYSL1616JX00-E17 18 36 Mono Block R L GYSR2012JX00-E18 GYSL2012JX00-E18 3.00 3.18 3.24 11 22 Mono Block R L GYSR1010 JX00-F11 GYSL1010 JX00-F11 13 26 Mono Block R L GYSR1212JX00-F13 GYSL1212JX00-F13 17 34 Mono Block R L GYSR1616 JX00-F17 GYSL1616JX00-F17 18 36 Mono Block R L GYSR2012JX00-F18 GYSL2012 JX00-F18 1 The maximum groove depth varies according to the insert used. 2 The maximum cut off diameter CUTDIA varies according to the insert used. 3 Dimensions shown are when the gauge insert is used. If other insert geometries are used then LF, LH and LH 2 values may vary. 4 The maximum groove depth is limited by the workpiece diameter. Inventory maintained in Japan. 468 Mitsubishi Materials
