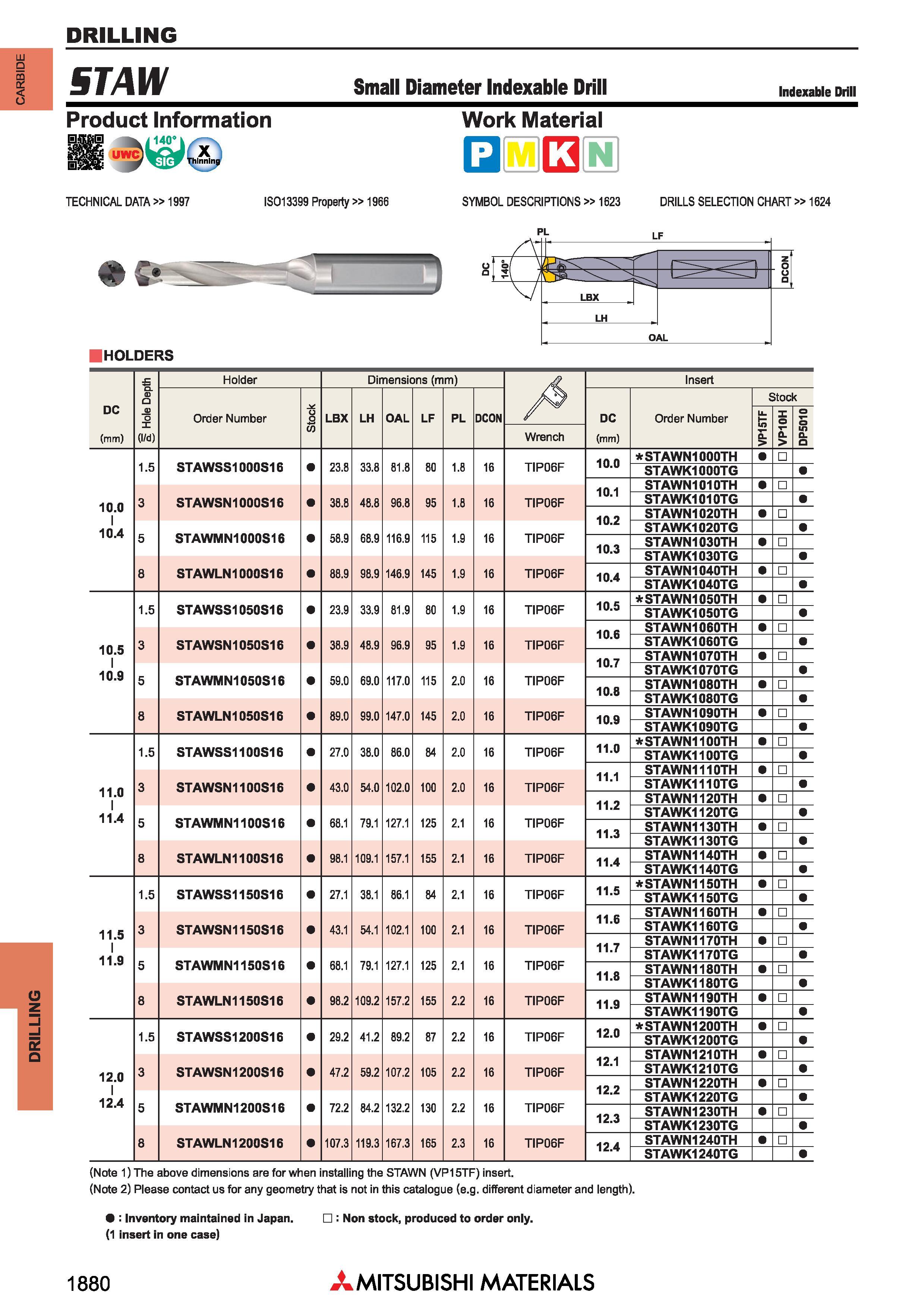

Сверла Митсубиси по металлу Японский осевой режущий инструмент для сверления отверстий DRILLING _ LU Q m o' 5 Сверла Митсубиси по металлу Японский осевой режущий инструмент для сверления отверстий DRILLING _ STAW Small Diameter Indexable Drill Indexable Drill Product Information Effing uwcl TECHNICAL DATA 1997 ISO 13399 Property 1966 Обрабатываемые материалы Work Material SYMBOL DESCRIPTIONS 1623 DRILLS SELECTION CHART 1624 HOLDERS DC (mm) 0/d) Holder Обозначение Order Number Размеры в мм Dimensions (mm) LBX LH OAL LF PL DCON Wrench Insert DC (mm) Обозначение Order Number Stock 10.0 I 10.4 1.5 3 5 8 STAWSS1OOOS16 STAWSN1000S16 STAWMN1000S16 STAWLN1OOOS16 23.8 38.8 58.9 33.8 48.8 68.9 98.9 81.8 96.8 116.9 146.9 80 95 115 145 1.8 1.8 1.9 1.9 16 16 16 16 TIP06F TIP06F TIP06F TIP06F 10.0 STAWN1000TH STAWK1000TG 10.1 STAWN1010TH STAWK1010TG 10.2 STAWN1020TH STAWK1020TG 10.3 STAWN1030TH 10.4 STAWN1040TH STAWK1030TG STAWK1040TG 10.5 I 10.9 1.5 3 5 8 STAWSS1050S16 STAWSN1050S16 STAWMN1050S16 STAWLN1050S16 23.9 38.9 59.0 89.0 33.9 48.9 69.0 99.0 81.9 96.9 117.0 147.0 95 115 145 1.9 1.9 2.0 2.0 16 16 16 16 TIP06F TIP06F TIP06F TIP06F 10.5 STAWN1050TH 10.6 STAWN1060TH 10.7 STAWN1070TH 10.8 STAWN1080TH 10.9 STAWN1090TH STAWK1050TG STAWK1060TG STAWK1070TG STAWK1080TG STAWK1090TG 11.0 I 11.4 1.5 3 5 8 STAWSS1100S16 STAWSN1100S16 STAWMN1100S16 STAWLN1100S16 27.0 43.0 68.1 98.1 38.0 54.0 79.1 109.1 86.0 102.0 127.1 157.1 84 100 125 155 2.0 2.0 2.1 2.1 16 16 16 16 TIP06F TIP06F TIP06F TIP06F 11.0 STAWN1100TH 11.1 STAWN1110TH 11.2 STAWN1120TH 11.3 STAWN1130TH 11.4 STAWN1140TH STAWK1100TG STAWK1110TG STAWK1120TG STAWK1130TG STAWK1140TG 11.5 I 11.9 1.5 3 5 8 STAWSS 1150S16 STAWSN1150S16 STAWMN1150S16 STAWLN1150S16 27.1 43.1 68.1 98.2 38.1 54.1 79.1 109.2 86.1 102.1 127.1 157.2 84 100 125 155 2.1 2.1 2.1 2.2 16 16 16 16 TIP06F TIP06F TIP06F TIP06F 11.5 STAWN1150TH 11.6 STAWN1160TH 11.7 STAWN1170TH 11.8 STAWN1180TH 11.9 STAWN1190TH STAWK1150TG STAWK1160TG STAWK1170TG STAWK1180TG STAWK1190TG 12.0 I 12.4 1.5 3 5 8 STAWSS1200S16 STAWSN1200S16 STAWMN1200S16 STAWLN1200S16 29.2 47.2 72.2 107.3 41.2 59.2 84.2 119.3 89.2 107.2 132.2 167.3 87 105 130 165 2.2 2.2 2.2 2.3 16 16 16 16 TIP06F TIP06F TIP06F TIP06F 12.0 STAWN1200TH STAWK1200TG 12.1 STAWN1210TH 12.2 STAWN1220TH 12.3 STAWN1230TH 12.4 STAWN1240TH STAWK1210TG STAWK1220TG STAWK1230TG STAWK1240TG (Note 1) The above dimensions are for when installing the STAWN (VP15TF) insert. (Note 2) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). Inventory maintained in Japan. Non stock, produced to order only. (1 insert in one case) 1880 Mitsubishi Materials
