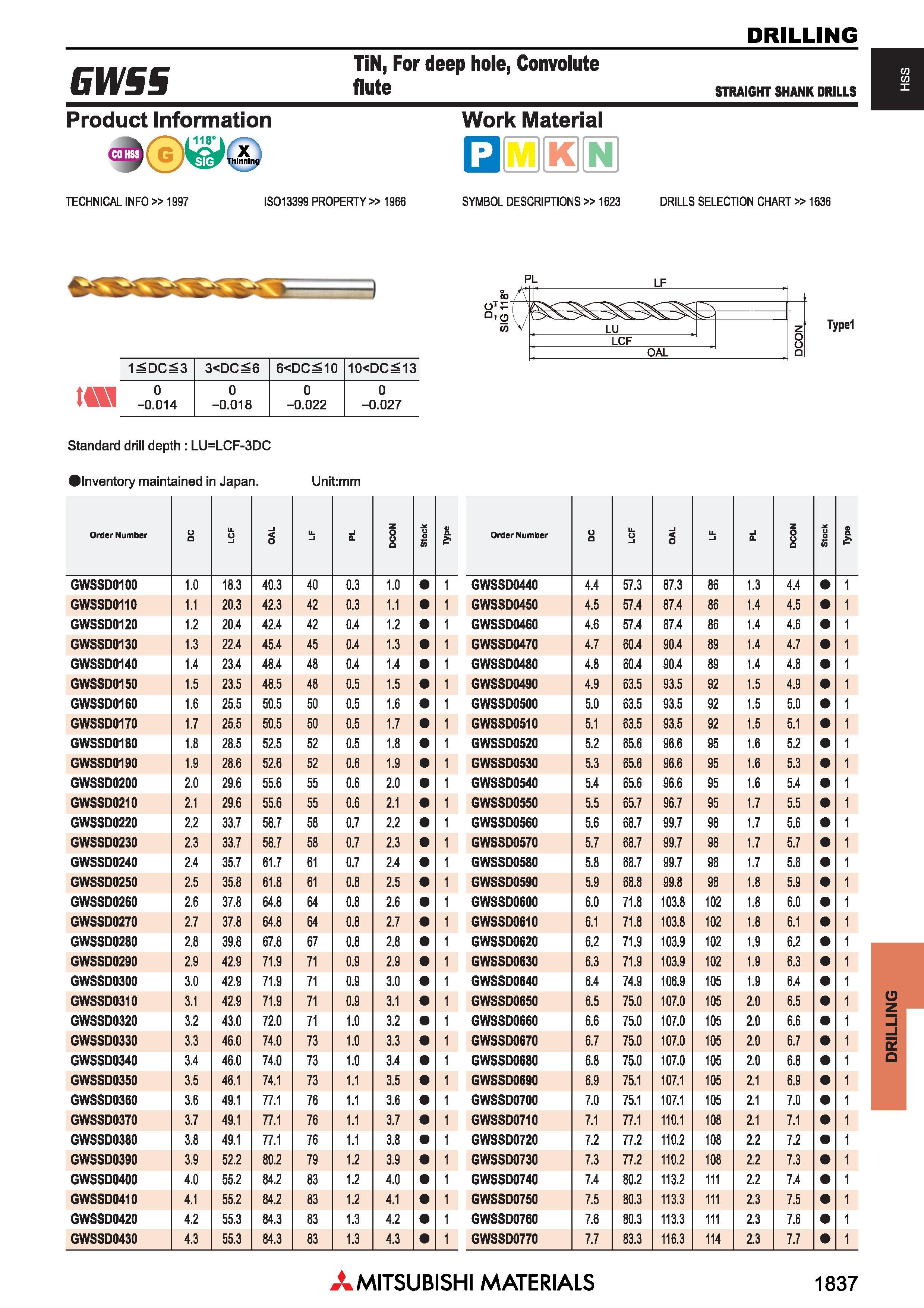

Сверла Митсубиси по металлу Японский осевой режущий инструмент для сверления отверстий DRILLING _ EWSS TiN, For deep hole, Convolute flute STRAIGHT SHANK DRILLS Product Information Обрабатываемые материалы Work Material IE) TECHNICAL INFO 1997 ISO 13399 PROPERTY 1966 SYMBOL DESCRIPTIONS 1623 DRILLS SELECTION CHART 1636 Standard drill depth LU=LCF-3DC inventory maintained in Japan. Unit:mm Обозначение Order Number U a Li. o -1 l S u. l CL DCON Stock n. GWSSD0100 1.0 18.3 40.3 40 0.3 1.0 1 GWSSD0110 1.1 20.3 42.3 42 0.3 1.1 1 GWSSD0120 1.2 20.4 42.4 42 0.4 1.2 1 GWSSD0130 1.3 22.4 45.4 45 0.4 1.3 1 GWSSD0140 1.4 23.4 48.4 48 0.4 1.4 1 GWSSD0150 1.5 23.5 48.5 48 0.5 1.5 1 GWSSD0160 1.6 25.5 50.5 50 0.5 1.6 1 GWSSD0170 1.7 25.5 50.5 50 0.5 1.7 1 GWSSD0180 1.8 28.5 52.5 52 0.5 1.8 1 GWSSD0190 1.9 28.6 52.6 52 0.6 1.9 1 GWSSD0200 2.0 29.6 55.6 55 0.6 2.0 1 GWSSD0210 2.1 29.6 55.6 55 0.6 2.1 1 GWSSD0220 2.2 33.7 58.7 58 0.7 2.2 1 GWSSD0230 2.3 33.7 58.7 58 0.7 2.3 1 GWSSD0240 2.4 35.7 61.7 61 0.7 2.4 1 GWSSD0250 2.5 35.8 61.8 61 0.8 2.5 1 GWSSD0260 2.6 37.8 64.8 64 0.8 2.6 1 GWSSD0270 2.7 37.8 64.8 64 0.8 2.7 1 GWSSD0280 2.8 39.8 67.8 67 0.8 2.8 1 GWSSD0290 2.9 42.9 71.9 71 0.9 2.9 1 GWSSD0300 3.0 42.9 71.9 71 0.9 3.0 1 GWSSD0310 3.1 42.9 71.9 71 0.9 3.1 1 GWSSD0320 3.2 43.0 72.0 71 1.0 3.2 1 GWSSD0330 3.3 46.0 74.0 73 1.0 3.3 1 GWSSD0340 3.4 46.0 74.0 73 1.0 3.4 1 GWSSD0350 3.5 46.1 74.1 73 1.1 3.5 1 GWSSD0360 3.6 49.1 77.1 76 1.1 3.6 1 GWSSD0370 3.7 49.1 77.1 76 1.1 3.7 1 GWSSD0380 3.8 49.1 77.1 76 1.1 3.8 1 GWSSD0390 3.9 52.2 80.2 79 1.2 3.9 1 GWSSD0400 4.0 55.2 84.2 83 1.2 4.0 1 GWSSD0410 4.1 55.2 84.2 83 1.2 4.1 1 GWSSD0420 4.2 55.3 84.3 83 1.3 4.2 1 GWSSD0430 4.3 55.3 84.3 83 1.3 4.3 1 Обозначение Order Number U a u. U L -1 S Li. l CL Z O o a Stock a GWSSD0440 4.4 57.3 87.3 86 1.3 4.4 1 GWSSD0450 4.5 57.4 87.4 86 1.4 4.5 1 GWSSD0460 4.6 57.4 87.4 86 1.4 4.6 1 GWSSD0470 4.7 60.4 90.4 89 1.4 4.7 1 GWSSD0480 4.8 60.4 90.4 89 1.4 4.8 1 GWSSD0490 4.9 63.5 93.5 92 1.5 4.9 1 GWSSD0500 5.0 63.5 93.5 92 1.5 5.0 1 GWSSD0510 5.1 63.5 93.5 92 1.5 5.1 1 GWSSD0520 5.2 65.6 96.6 95 1.6 5.2 1 GWSSD0530 5.3 65.6 96.6 95 1.6 5.3 1 GWSSD0540 5.4 65.6 96.6 95 1.6 5.4 1 GWSSD0550 5.5 65.7 96.7 95 1.7 5.5 1 GWSSD0560 5.6 68.7 99.7 98 1.7 5.6 1 GWSSD0570 5.7 68.7 99.7 98 1.7 5.7 1 GWSSD0580 5.8 68.7 99.7 98 1.7 5.8 1 GWSSD0590 5.9 68.8 99.8 98 1.8 5.9 1 GWSSD0600 6.0 71.8 103.8 102 1.8 6.0 1 GWSSD0610 6.1 71.8 103.8 102 1.8 6.1 1 GWSSD0620 6.2 71.9 103.9 102 1.9 6.2 1 GWSSD0630 6.3 71.9 103.9 102 1.9 6.3 1 GWSSD0640 6.4 74.9 106.9 105 1.9 6.4 1 GWSSD0650 6.5 75.0 107.0 105 2.0 6.5 1 GWSSD0660 6.6 75.0 107.0 105 2.0 6.6 1 GWSSD0670 6.7 75.0 107.0 105 2.0 6.7 1 GWSSD0680 6.8 75.0 107.0 105 2.0 6.8 1 GWSSD0690 6.9 75.1 107.1 105 2.1 6.9 1 GWSSD0700 7.0 75.1 107.1 105 2.1 7.0 1 GWSSD0710 7.1 77.1 110.1 108 2.1 7.1 1 GWSSD0720 7.2 77.2 110.2 108 2.2 7.2 1 GWSSD0730 7.3 77.2 110.2 108 2.2 7.3 1 GWSSD0740 7.4 80.2 113.2 111 2.2 7.4 1 GWSSD0750 7.5 80.3 113.3 111 2.3 7.5 1 GWSSD0760 7.6 80.3 113.3 111 2.3 7.6 1 GWSSD0770 7.7 83.3 116.3 114 2.3 7.7 1 Mitsubishi Materials 1837 DRILLING
