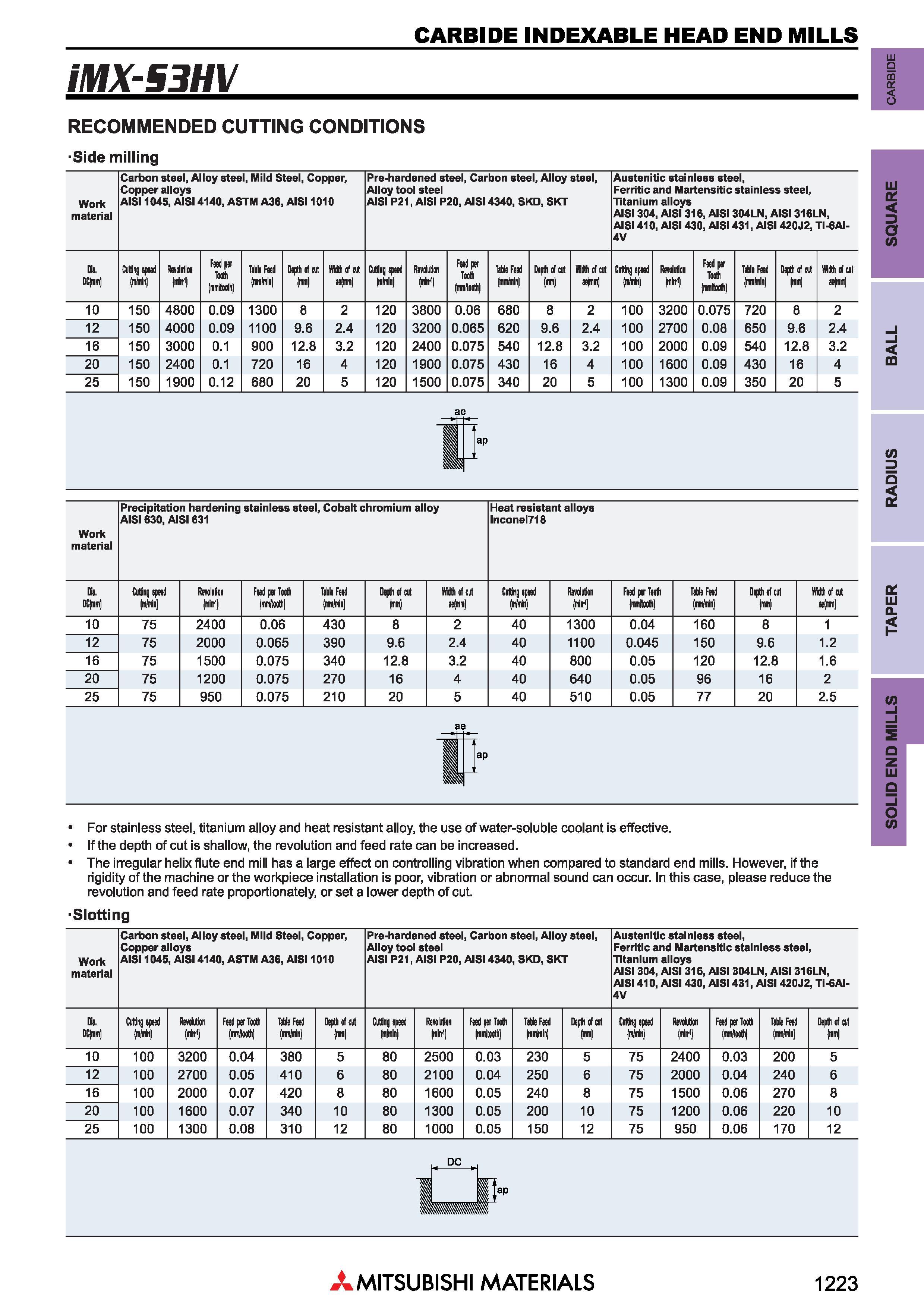

Концевые фрезы Mitsubishi по металлу со сменными режущими твердосплавными головками CARBIDE INDEXABLE HEAD END MILLS _ mX-S3HV Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS Side milling Work material Cartoon steel, Alloy steel, Mild Steel, Copper, Copper alloys AIS11045, AISI 4140, ASTM A36, AIS11010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic stainless steel, Titanium alloys AISI 304, AISI 316, AISI 304LN, AISI 316LN, AISI 410, AISI 430, AISI 431, AISI 420J2, Ti-6AI-4V Dii. DCJnm CuUifig spud mimin) Million (niir'l Feeo psr Tooth (mmM) Tibli Fwl (mm/uiin Depth of cut (mm Widtti of ait M(min Culling quod (m/min Rivdudon (mir') Fnd per IooJi (mmltootli Tibia Fold (mm/min Dipth of cut M Mil of cut ae(mm Cutting spud (mtnin Milton (miir1) FHd per Tooth (rnnftooth) Mil Feed (mmMn) Dipth of cut (mm Width of cut ae(nn 10 150 4800 0.09 1300 8 2 120 3800 0.06 680 8 2 100 3200 0.075 720 8 2 12 150 4000 0.09 1100 9.6 2.4 120 3200 0.065 620 9.6 2.4 100 2700 0.08 650 9.6 2.4 16 150 3000 0.1 900 12.8 3.2 120 2400 0.075 540 12.8 3.2 100 2000 0.09 540 12.8 3.2 20 150 2400 0.1 720 16 4 120 1900 0.075 430 16 4 100 1600 0.09 430 16 4 25 150 1900 0.12 680 20 5 120 1500 0.075 340 20 5 100 1300 0.09 350 20 5 ae 1> Work material Precipitation hardening stainless steel, Cobalt chromium alloy AISI 630, AISI 631 Heat resistant alloys lncone 718 Dii. DCH Cutting spied (m/min Revaludoi (niir'l Feed pit Tooth Imi/Mi Table Fied (mm/min Depth of cut (mm Width of cut ae(mn Cutting spied ttiin Mution (miir1 Feed per Toolli mmM Tibli Fied (mmMn Depth of cut mm Width oif cut ai(imi) 10 75 2400 0.06 430 8 2 40 1300 0.04 160 8 1 12 75 2000 0.065 390 9.6 2.4 40 1100 0.045 150 9.6 1.2 16 75 1500 0.075 340 12.8 3.2 40 800 0.05 120 12.8 1.6 20 75 1200 0.075 270 16 4 40 640 0.05 96 16 2 25 75 950 0.075 210 20 5 40 510 0.05 77 20 2.5 ap For stainless steel, titanium alloy and heat resistant alloy, the use of water-soluble coolant is effective. If the depth of cut is shallow, the revolution and feed rate can be increased. The irregular helix flute end mill has a large effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the workpiece installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. Slotting Work material Carbon steel, Alloy steel, Mild Steel, Copper, Copper alloys AIS11045, AISI 4140, ASTM A36, AIS11010 Pne-hardened steel, Canbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Fennitic and Martensitic stainless steel, Titanium alloys AISI 304, AISI 316, AISI 304LN, AISI 316LN, AISI 410, AISI 430, AISI 431, AISI 420J2, Ti-6AI-4V Dii. Cutting ipeed Mution Feed per To Table Feed DqMh of cut Cutting spied Muboi Fied pir Tootti Table Feed Depth of cut Cuttiig speed Revolution Feed per Tooth Table Feed Depth of cut DC(mm (m(mh (miir1 (mmM (mm/min mm (mMn (min-1 (mm/lootti) (mm/miij (m/min (miir1 mmM (mm/min (mm 10 100 3200 0.04 380 5 80 2500 0.03 230 5 75 2400 0.03 200 5 12 100 2700 0.05 410 6 80 2100 0.04 250 6 75 2000 0.04 240 6 16 100 2000 0.07 420 8 80 1600 0.05 240 8 75 1500 0.06 270 8 20 100 1600 0.07 340 10 80 1300 0.05 200 10 75 1200 0.06 220 10 25 100 1300 0.08 310 12 80 1000 0.05 150 12 75 950 0.06 170 12 DC Mitsubishi Materials 1223 TAPER RADIUS BALL SQUARE carbide
