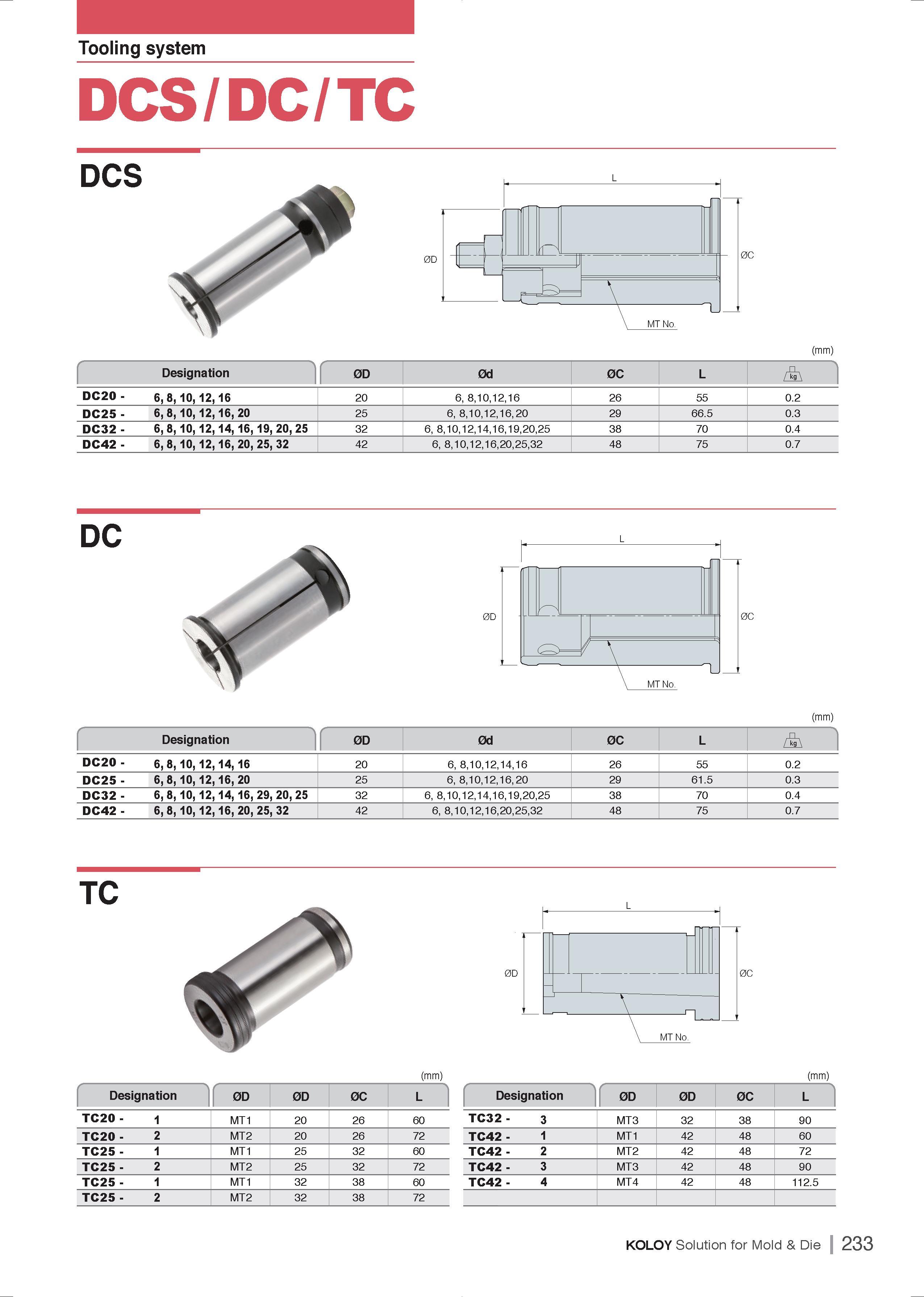

Tooling system DCS/DC/TC DCS (mm) f 'N Designation 0D 0d 0C L DC20 - 6, 8, 10, 12, 16 20 6, 8,10,12,16 26 55 0.2 DC25 - 6, 8, 10, 12, 16, 20 25 6, 8,10,12,16, 20 29 66.5 0.3 DC32 - 6, 8, 10, 12, 14, 16, 19, 20, 25 32 6, 8,10,12,14,16,19,20,25 38 70 0.4 DC42 - 6, 8, 10, 12, 16, 20, 25, 32 42 6, 8,10,12,16,20,25,32 48 75 0.7 DC 0D MT No. (mm) Designation 0D 0d 0C L DC20 - 6, 8, 10, 12, 14, 16 20 6, 8,10,12,14,16 2L6 55 0.2 DC25 - 6, 8, 10, 12, 16, 20 25 6, 8,10,12,16, 20 29 61.5 0.3 DC32 - 6, 8, 10, 12, 14, 16, 29, 20, 25 32 6, 8,10,12,14,16,19,20,25 38 70 0.4 DC42 - 6, 8, 10, 12, 16, 20, 25, 32 42 6, 8,10,12,16,20,25,32 48 75 0.7 L 0C TC (mm) Designation 0D 0D 0C l TC20 - 1 MT1 20 26 60 TC20 - 2 MT2 20 26 72 TC25 - 1 MT1 25 32 60 TC25 - 2 MT2 25 32 72 TC25 - 1 MT1 32 38 60 TC25 - 2 MT2 32 38 72 L (mm) Designation D 0 0D 0C l TC32 - 3 MT3 32 38 90 TC42 - 1 MT1 42 48 60 TC42 - 2 MT2 42 48 72 TC42 - 3 MT3 42 48 90 TC42 - 4 MT4 42 48 112.5 KOLOY Solution for Mold & Die 233
