The ABSOLUTE Digimatic Bore Gages are exclusively designed for ID measurement With the help of four rods (250 mm or 500 mm) can be used it is possible to provide measu

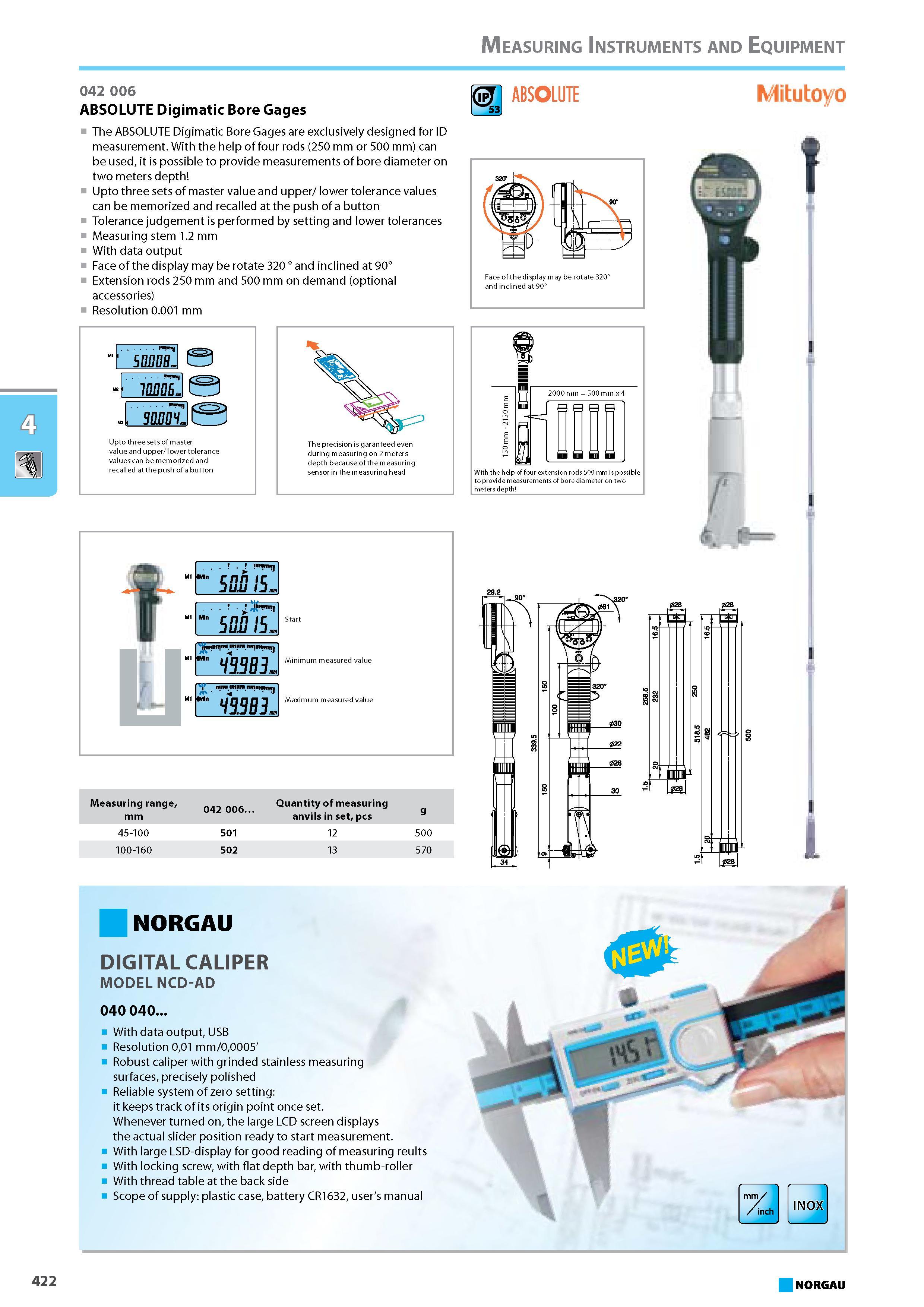

The ABSOLUTE Digimatic Bore Gages are exclusively designed for ID measurement With the help of four rods (250 mm or 500 mm) can be used it is possible to provide measurements of bore diameter on two meters depth Upto three sets of master value and upper lower tolerance values can be memorized and recalled at the push of a button Tolerance judgement is performed by setting and lower tolerances Measuring stem 1.2 mm With data output Face of the display may be rotate 320 and inclined at 90 Extension rods 250 mm and 500 mm on demand (optional accessories) Resolution 0.001 mm mi ABSOLUTE S3 SWOB. WQb. %m. Upto three sets of master value and upper lower tolerance values can be memorized and recalled at the push of a button Minimum measured value Maximum measured value Measuring range mm 042 006 Quantity of measuring anvils in set pcs g 45-100 501 12 500 100-160 502 13 570 NORGAU DIGITAL CALIPER MODEL NCD-AD 040 040 With data output USB Resolution 001 mm 00005' Robust caliper with grinded stainless measuring surfaces precisely polished Reliable system of zero setting it keeps track of its origin point once set. Whenever turned on the large LCD screen displays the actual slider position ready to start measurement. With large LSD-display for good reading of measuring reults With locking screw with flat depth bar with thumb-roller With thread table at the back side Scope of supply plastic case battery CR1632 user's manual NORGAU INOX Measuring Instruments and Equipment 422 042 006 ABSOLUTE Digimatic Bore Gages
