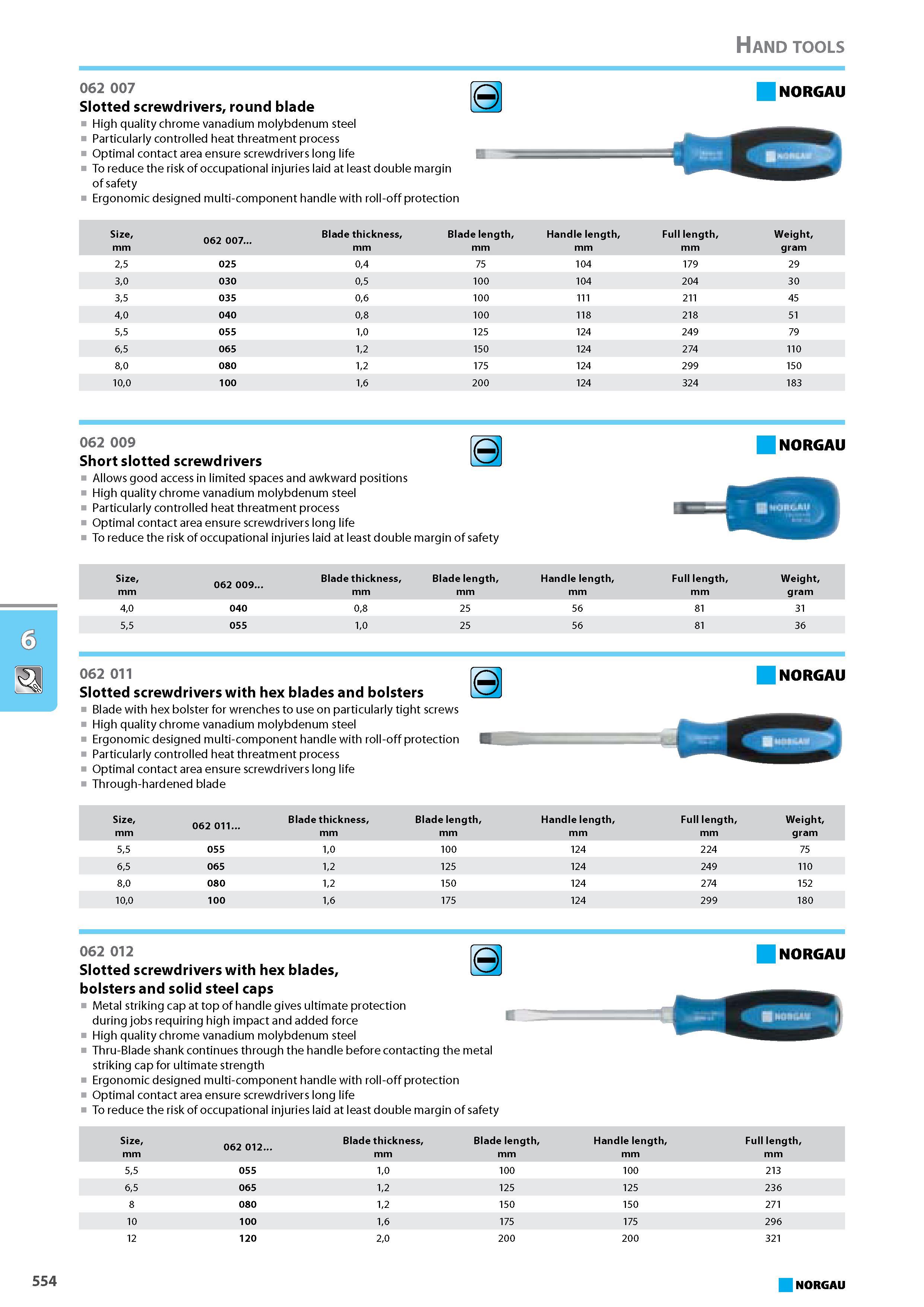

570 Каталог NORGAU 2014 Инструменты Оборудование Стр.554 |
|||||
Slotted screwdrivers round blade High quality chrome vanadium molybdenum steel Particularly controlled heat threatment process Optimal contact area ensure screwdriversSlotted screwdrivers round blade High quality chrome vanadium molybdenum steel Particularly controlled heat threatment process Optimal contact area ensure screwdrivers long life To reduce the risk of occupational injuries laid at least double margin of safety Ergonomic designed multi-component handle with roll-off protection Size mm 062 007 Blade thickness mm Blade length mm Handle length mm Full length mm Weight gram 25 025 04 75 104 179 29 30 030 05 100 104 204 30 35 035 06 100 111 211 45 40 040 08 100 118 218 51 55 055 10 125 124 249 79 65 065 12 150 124 274 110 80 080 12 175 124 299 150 100 100 16 200 124 324 183 062 009 Short slotted screwdrivers Allows good access in limited spaces and awkward positions High quality chrome vanadium molybdenum steel Particularly controlled heat threatment process Optimal contact area ensure screwdrivers long life To reduce the risk of occupational injuries laid at least double margin of safety NORGAU Size 062 009 Blade thickness Blade length Handle length Full length Weight mm gram 40 040 08 25 56 81 31 55 055 10 25 56 81 36 062 011 Slotted screwdrivers with hex blades and bolsters Blade with hex bolster for wrenches to use on particularly tight screws High quality chrome vanadium molybdenum steel Ergonomic designed multi-component handle with roll-off protection Particularly controlled heat threatment process Optimal contact area ensure screwdrivers long life Through-hardened blade Size mm 062 011 Blade thickness mm Blade length mm Handle length mm Full length mm Weight gram 55 055 10 100 124 224 75 65 065 12 125 124 249 110 80 080 12 150 124 274 152 100 100 16 175 124 299 180 062 012 Slotted screwdrivers with hex blades bolsters and solid steel caps Metal striking cap at top of handle gives ultimate protection during jobs requiring high impact and added force High quality chrome vanadium molybdenum steel Thru-Blade shank continues through the handle before contacting the metal striking cap for ultimate strength Ergonomic designed multi-component handle with roll-off protection Optimal contact area ensure screwdrivers long life To reduce the risk of occupational injuries laid at least double margin of safety Size mm 062 012 Blade thickness mm Blade length mm Handle length mm Full length mm 55 055 10 100 100 213 65 065 12 125 125 236 8 080 12 150 150 271 10 100 16 175 175 296 12 120 20 200 200 321 Hand tools 554 062 007 |
|||||
