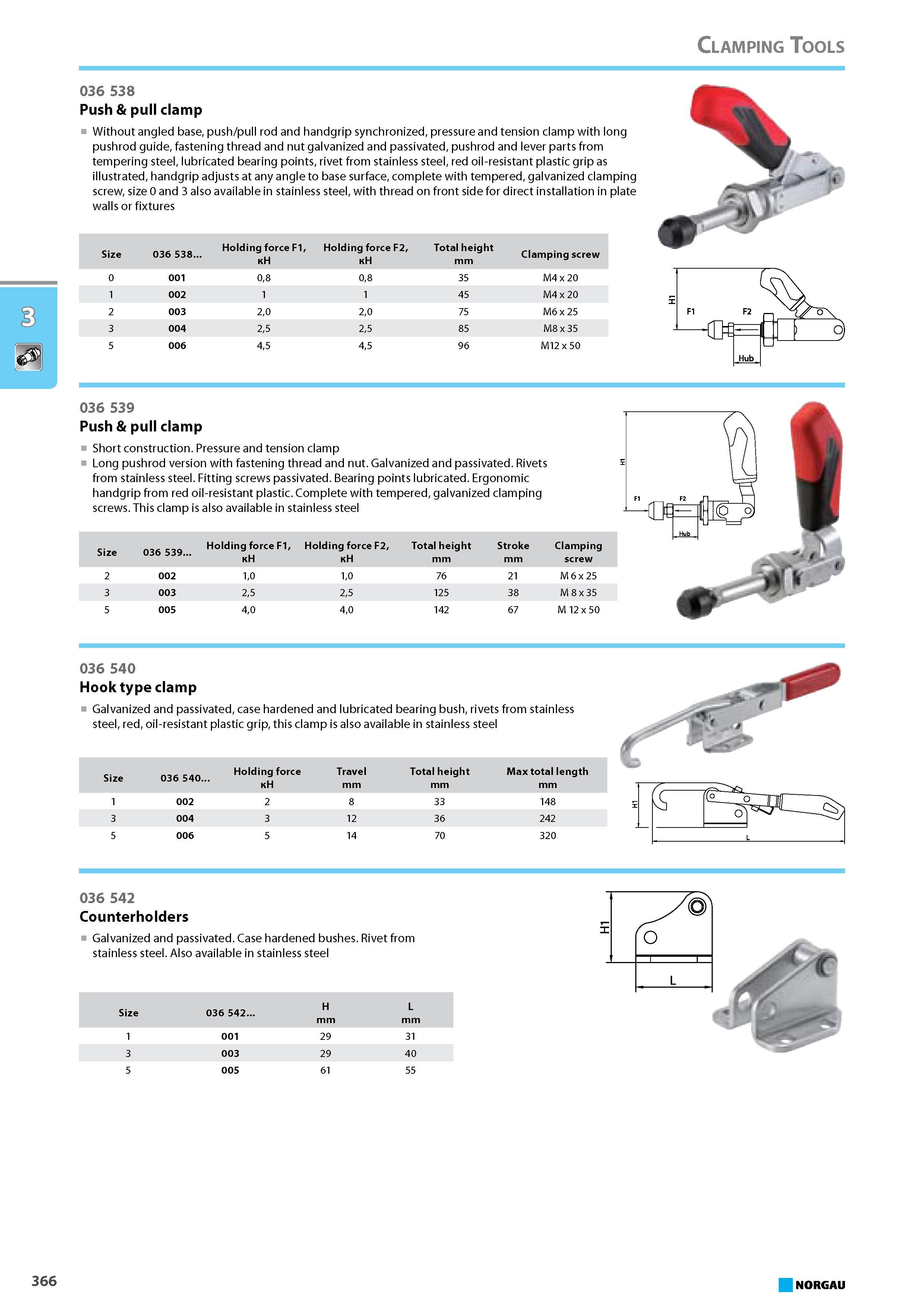

Push & pull clamp Without angled base push pull rod and handgrip synchronized pressure and tension clamp with long pushrod guide fastening thread and nut galvanized and passivated pushrod and lever parts from tempering steel lubricated bearing points rivet from stainless steel red oil-resistant plastic grip as illustrated handgrip adjusts at any angle to base surface complete with tempered galvanized clamping screw size 0 and 3 also available in stainless steel with thread on front side for direct installation in plate walls or fixtures Size 036 538 Holding force F1 kH Holding force F2 kH Total height mm Clamping screw 0 001 08 08 35 M4 x 20 1 002 1 1 45 M4 x 20 2 003 20 20 75 M6 x 25 3 004 25 25 85 M8 x 35 5 006 45 45 96 M12 x 50 036 539 Push & pull clamp Short construction. Pressure and tension clamp Long pushrod version with fastening thread and nut. Galvanized and passivated. Rivets from stainless steel. Fitting screws passivated. Bearing points lubricated. Ergonomic handgrip from red oil-resistant plastic. Complete with tempered galvanized clamping screws. This clamp is also available in stainless steel Size 036 539 Holding force F1 kH Holding force F2 kH Total height mm Stroke mm Clamping screw 2 002 10 10 76 21 M 6 x 25 3 003 25 25 125 38 M 8 x 35 5 005 40 40 142 67 M 12 x 50 036 540 Hook type clamp Galvanized and passivated case hardened and lubricated bearing bush rivets from stainless steel red oil-resistant plastic grip this clamp is also available in stainless steel Size 036 540 Holding force kH Travel Total height Max total length mm 1 002 2 8 33 148 X 3 004 3 12 36 242 5 006 5 14 70 320 L 036 542 Counterholders Galvanized and passivated. Case hardened bushes. Rivet from stainless steel. Also available in stainless steel H L Size 036 542 mm 1 001 29 31 3 003 29 40 L 5 005 61 55 366 NORGAU Clamping Tools 036 538
