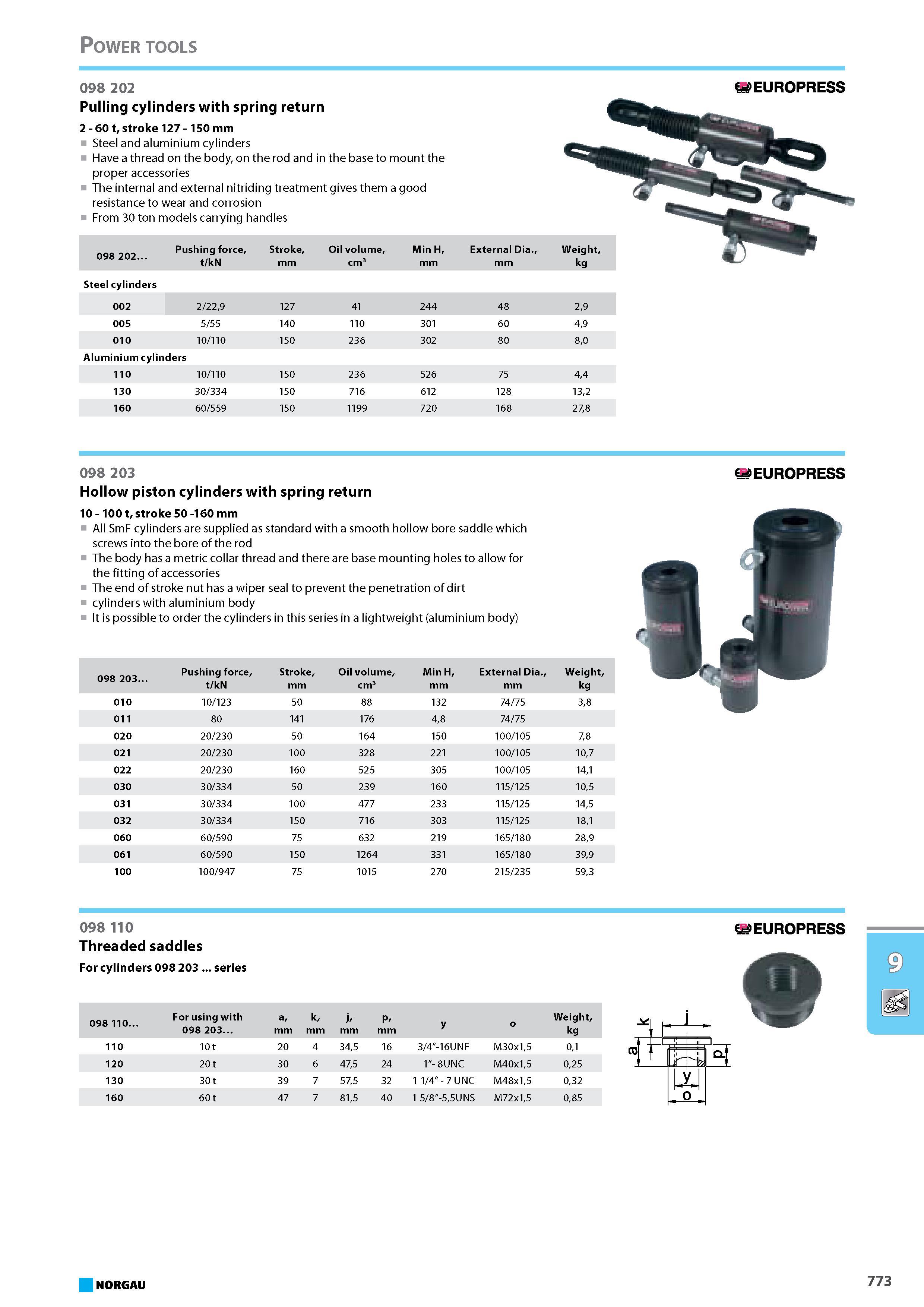

Pulling cylinders with spring return 2 - 60 t stroke 127 - 150 mm Steel and aluminium cylinders Have a thread on the body on the rod and in the base to mount the proper accessories The internal and external nitriding treatment gives them a good resistance to wear and corrosion From 30 ton models carrying handles G3EUROPRESS Pushing force 098 22" t gN Stroke mm Oil volume cm3 Min H mm External Dia. mm Weight kg Steel cylinders 002 2 229 127 41 244 48 29 005 5 55 140 110 301 60 49 010 10 110 150 236 302 80 80 Aluminium cylinders 110 10 110 150 236 526 75 44 130 30 334 150 716 612 128 132 160 60 559 150 1199 720 168 278 098 203 Hollow piston cylinders with spring return 10 - 100 t stroke 50 -160 mm All SmF cylinders are supplied as standard with a smooth hollow bore saddle which screws into the bore of the rod The body has a metric collar thread and there are base mounting holes to allow for the fitting of accessories The end of stroke nut has a wiper seal to prevent the penetration of dirt cylinders with aluminium body It is possible to order the cylinders in this series in a lightweight (aluminium body) EUROPRESS 098 203. Pushing force t kN Stroke mm Oil volume cm3 Min H mm External Dia. mm Weight kg 010 10 123 50 88 132 74 75 38 011 80 141 176 48 74 75 020 20 230 50 164 150 100 105 78 021 20 230 100 328 221 100 105 107 022 20 230 160 525 305 100 105 141 030 30 334 50 239 160 115 125 105 031 30 334 100 477 233 115 125 145 032 30 334 150 716 303 115 125 181 060 60 590 75 632 219 165 180 289 061 60 590 150 1264 331 165 180 399 100 100 947 75 1015 270 215 235 593 098 110 Threaded saddles For cylinders 098 203 series 098 110. For using with 098 203. a mm k mm j mm P mm y Weight kg 110 10 t 20 4 345 16 3/4"-16UNF M30x15 01 120 20 t 30 6 475 24 1"- 8UNC M40x15 025 130 30 t 39 7 575 32 1 1/4" - 7 UNC M48x15 032 160 60 t 47 7 815 40 1 5/8"-55UNS M72x15 085 PEUROPRESS co NORGAU 773 Power tools 098 202
