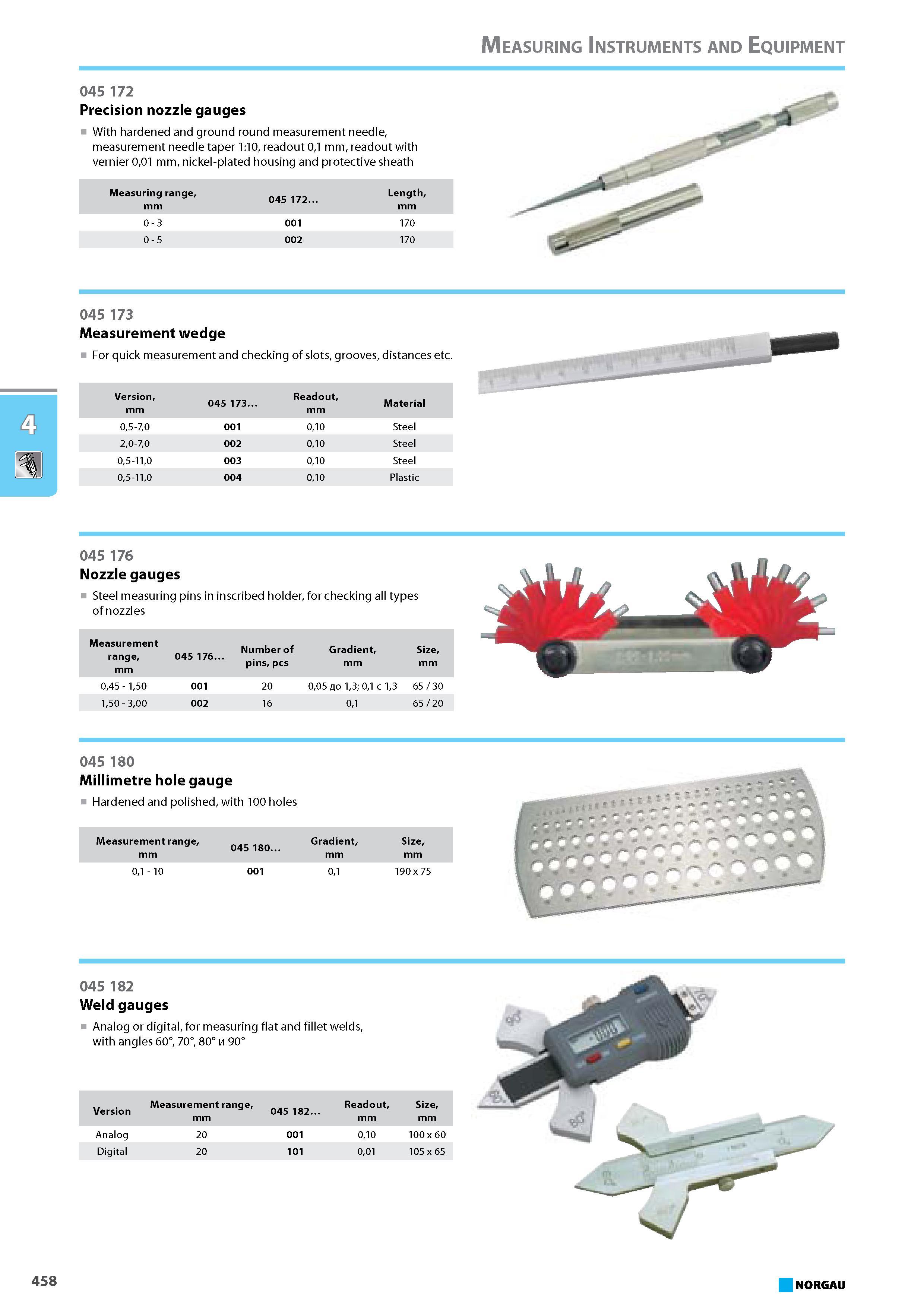

Precision nozzle gauges With hardened and ground round measurement needle measurement needle taper 1 10 readout 01 mm readout with vernier 001 mm nickel-plated housing

Precision nozzle gauges With hardened and ground round measurement needle measurement needle taper 1 10 readout 01 mm readout with vernier 001 mm nickel-plated housing and protective sheath Measuring range 045 172. Length mm 3 0 001 170 5 0 002 170 045 173 Measurement wedge For quick measurement and checking of slots grooves distances etc. Version mm 045 173. Readout mm Material 05-70 001 010 Steel 20-70 002 010 Steel 05-110 003 010 Steel 05-110 004 010 Plastic 045 176 Nozzle gauges Steel measuring pins in inscribed holder for checking all types of nozzles Measurement range 045 176. mm Number of Gradient Size pins pcs mm 045 - 150 001 20 005 flo 13 01 c 13 65 30 150 - 300 002 16 01 65 20 045 180 Millimetre hole gauge Hardened and polished with 100 holes Measurement range 045 180. Gradient Size mm 01 - 10 001 01 190 x 75 045 182 Weld gauges Analog or digital for measuring flat and fillet welds with angles 60 70 80 hi 90 Version Measurement range mm 045 182. Readout mm Size mm Analog 20 001 010 100 x 60 Digital 20 101 001 105 x 65 Measuring Instruments and Equipment 458 045 172
