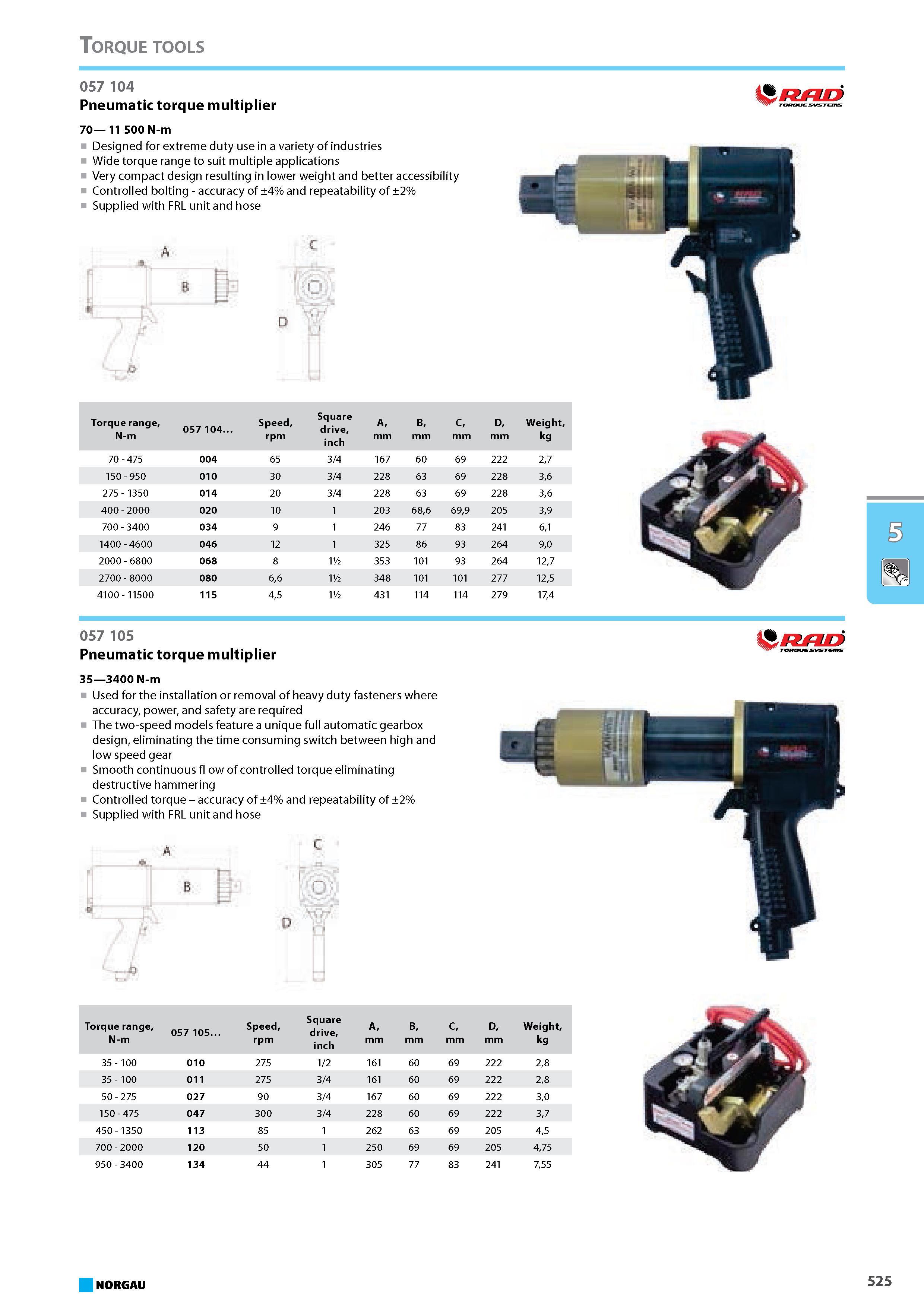

Pneumatic torque multiplier 70 11 500 N-m Designed for extreme duty use in a variety of industries Wide torque range to suit multiple applications Very compact design

Pneumatic torque multiplier 70 11 500 N-m Designed for extreme duty use in a variety of industries Wide torque range to suit multiple applications Very compact design resulting in lower weight and better accessibility Controlled bolting - accuracy of 4% and repeatability of 2% Supplied with FRL unit and hose Torque range N-m 057 104. Speed rpm Square drive inch A mm B mm C mm D mm Weight kg 70 - 475 004 65 3 4 167 60 69 222 27 150 - 950 010 30 3 4 228 63 69 228 36 275 - 1350 014 20 3 4 228 63 69 228 36 400 - 2000 020 10 1 203 686 699 205 39 700 - 3400 034 9 246 77 83 241 61 1400 - 4600 046 12 1 325 86 93 264 90 2000 - 6800 068 8 1 353 101 93 264 127 2700 8000 080 66 1 348 101 101 277 125 4100 - 11500 115 45 1 431 114 114 279 174 057 105 Pneumatic torque multiplier 35 3400 N-m Used for the installation or removal of heavy duty fasteners where accuracy power and safety are required The two-speed models feature a unique full automatic gearbox design eliminating the time consuming switch between high and low speed gear Smooth continuous fl ow of controlled torque eliminating destructive hammering Controlled torque - accuracy of 4% and repeatability of 2% Supplied with FRL unit and hose Torque range N-m 057 105. Speed rpm Square drive inch A mm B mm C mm D mm Weight kg 35 - 100 010 275 1 2 161 60 69 222 28 35 - 100 011 275 3 4 161 60 69 222 28 50 - 275 027 90 3 4 167 60 69 222 30 150 - 475 047 300 3 4 228 60 69 222 37 450 - 1350 113 85 1 262 63 69 205 45 700 - 2000 120 50 1 250 69 69 205 475 950 - 3400 134 44 1 305 77 83 241 755 NORGAU 525 Torque tools 057 104
