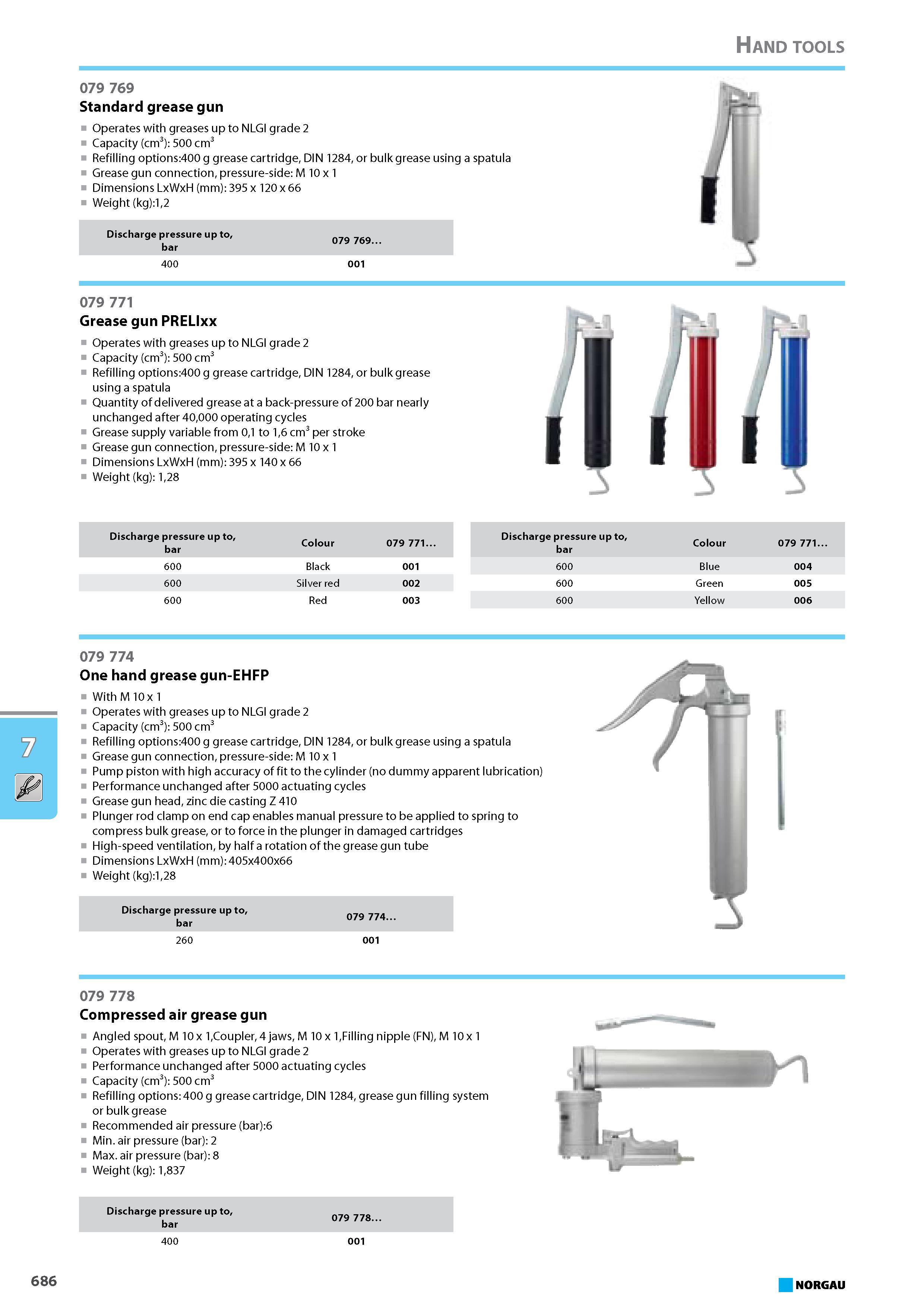

One hand grease gun-EHFP With M 10 x 1 Operates with greases up to NLGI grade 2 Capacity (cm3) 500 cm3 Refilling options 400 g grease cartridge DIN 1284 or bulk grease

One hand grease gun-EHFP With M 10 x 1 Operates with greases up to NLGI grade 2 Capacity (cm3) 500 cm3 Refilling options 400 g grease cartridge DIN 1284 or bulk grease using a spatula Grease gun connection pressure-side M 10 x 1 Pump piston with high accuracy of fit to the cylinder (no dummy apparent lubrication) Performance unchanged after 5000 actuating cycles Grease gun head zinc die casting Z 410 Plunger rod clamp on end cap enables manual pressure to be applied to spring to compress bulk grease or to force in the plunger in damaged cartridges High-speed ventilation by half a rotation of the grease gun tube Dimensions LxWxH (mm) 405x400x66 Weight (kg) 128 Discharge pressure up to bar 260 001 079 778 Compressed air grease gun Angled spout M 10 x 1Coupler 4 jaws M 10 x 1Filling nipple (FN) M 10 x 1 Operates with greases up to NLGI grade 2 Performance unchanged after 5000 actuating cycles Capacity (cm3) 500 cm3 Refilling options 400 g grease cartridge DIN 1284 grease gun filling system or bulk grease Recommended air pressure (bar) 6 Min. air pressure (bar) 2 Max. air pressure (bar) 8 Weight (kg) 1837 Discharge pressure up to bar 400 001 686 NORGAU Hand tools 079 769 Standard grease gun Operates with greases up to NLGI grade 2 Capacity (cm3) 500 cm3 Refilling options 400 g grease cartridge DIN 1284 or bulk grease using a spatula Grease gun connection pressure-side M 10 x 1 Dimensions LxWxH (mm) 395 x 120 x 66 Weight (kg) 12 Discharge pressure up to bar 079 769 079 771 Grease gun PRELIxx Operates with greases up to NLGI grade 2 Capacity (cm3) 500 cm3 Refilling options 400 g grease cartridge DIN 1284 or bulk grease using a spatula Quantity of delivered grease at a back-pressure of 200 bar nearly unchanged after 40000 operating cycles Grease supply variable from 01 to 16 cm3 per stroke Grease gun connection pressure-side M 10 x 1 Dimensions LxWxH (mm) 395 x 140 x 66 Weight (kg) 128 Discharge pressure up to bar Colour 079 771. Discharge pressure up to bar Colour 079 771. 600 Black 001 600 Blue 004 600 Silver red 002 600 Green 005 600 Red 003 600 Yellow 006 001 079 774
