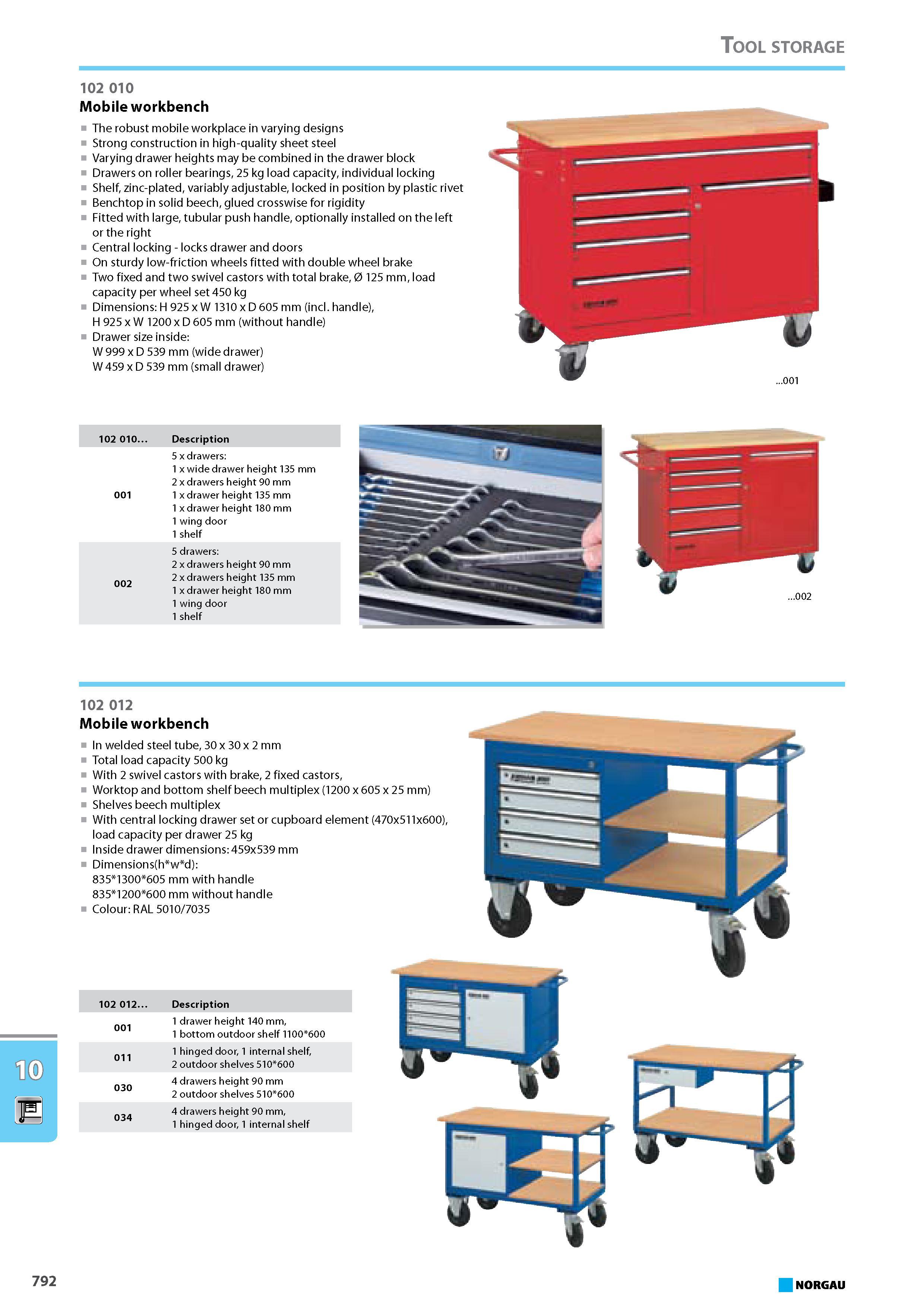

808 Каталог NORGAU 2014 Инструменты Оборудование Стр.792 |
|||||
Mobile workbench The robust mobile workplace in varying designs Strong construction in high-quality sheet steel Varying drawer heights may be combined in the drawer blMobile workbench The robust mobile workplace in varying designs Strong construction in high-quality sheet steel Varying drawer heights may be combined in the drawer block Drawers on roller bearings 25 kg load capacity individual locking Shelf zinc-plated variably adjustable locked in position by plastic rivet Benchtop in solid beech glued crosswise for rigidity Fitted with large tubular push handle optionally installed on the left or the right Central locking - locks drawer and doors On sturdy low-friction wheels fitted with double wheel brake Two fixed and two swivel castors with total brake 0 125 mm load capacity per wheel set 450 kg Dimensions H 925 x W 1310 x D 605 mm (incl. handle) H 925 x W 1200 x D 605 mm (without handle) Drawer size inside W 999 x D 539 mm (wide drawer) W 459 x D 539 mm (small drawer) 001 102 010. Description 001 5 x drawers 1 x wide drawer height 135 mm 2 x drawers height 90 mm 1 x drawer height 135 mm 1 x drawer height 180 mm 1 wing door 1 shelf 002 5 drawers 2 x drawers height 90 mm 2 x drawers height 135 mm 1 x drawer height 180 mm 1 wing door 1 shelf 10 102 012 Mobile workbench In welded steel tube 30 x 30 x 2 mm Total load capacity 500 kg With 2 swivel castors with brake 2 fixed castors Worktop and bottom shelf beech multiplex (1200 x 605 x 25 mm) Shelves beech multiplex With central locking drawer set or cupboard element (470x511x600) load capacity per drawer 25 kg Inside drawer dimensions 459x539 mm Dimensions(h w d) 835 1300 605 mm with handle 835 1200 600 mm without handle Colour RAL 5010 7035 102 012. Description 001 1 drawer height 140 mm 1 bottom outdoor shelf 1100 600 011 1 hinged door 1 internal shelf 2 outdoor shelves 510 600 030 4 drawers height 90 mm 2 outdoor shelves 510 600 034 4 drawers height 90 mm 1 hinged door 1 internal shelf 792 NORGAU Tool storage 102 010 |
|||||
