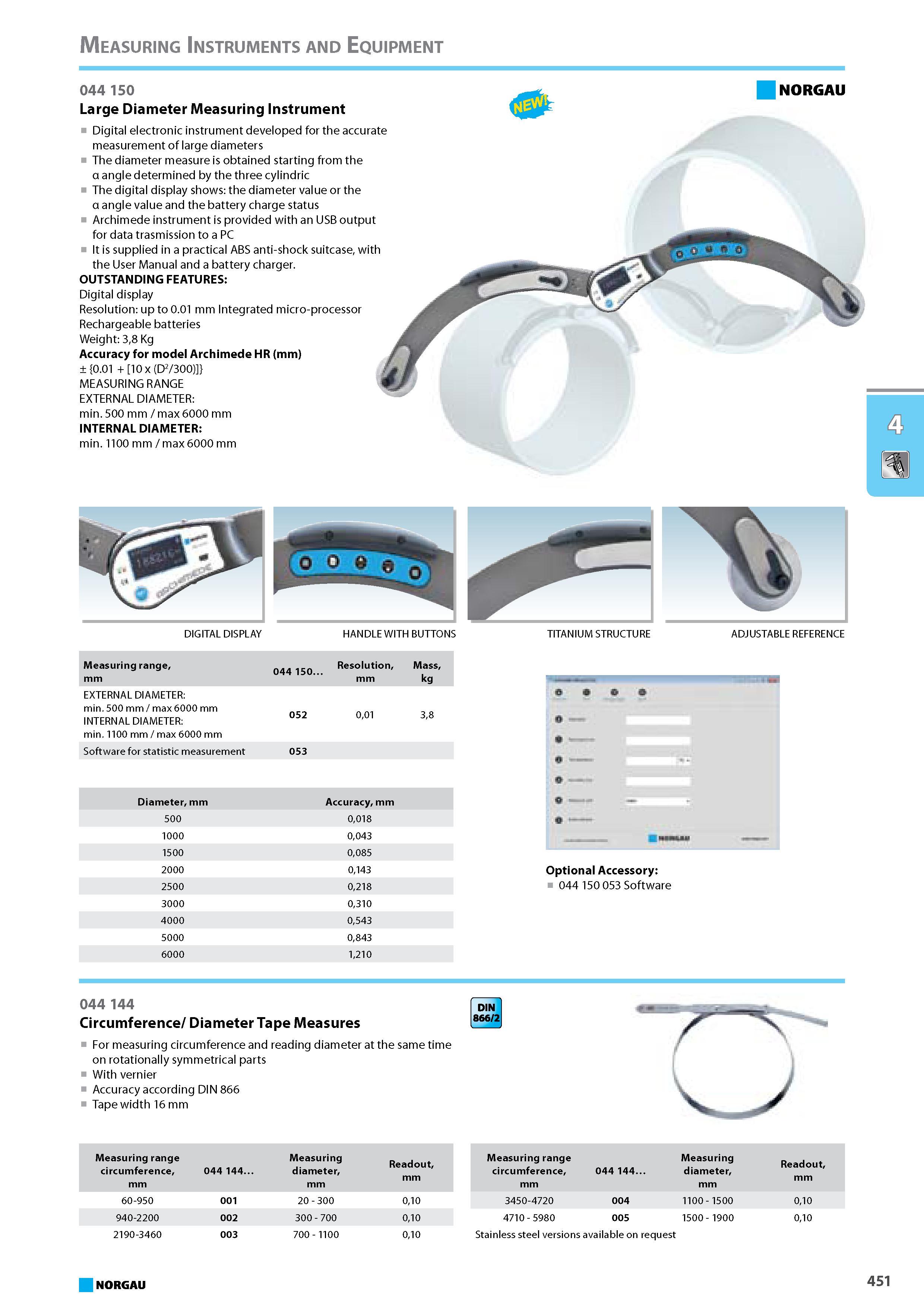

Large Diameter Measuring Instrument Digital electronic instrument developed for the accurate measurement of large diameters The diameter measure is obtained starting from the a angle determined by the three cylindric The digital display shows the diameter value or the a angle value and the battery charge status Archimede instrument is provided with an USB output for data trasmission to a PC It is supplied in a practical ABS anti-shock suitcase with the User Manual and a battery charger. OUTSTANDING FEATURES Digital display Resolution up to 0.01 mm Integrated micro-processor Rechargeable batteries Weight 38 Kg Accuracy for model Archimede HR (mm) 0.01 10 X (D2 300) J MEASURING RANGE EXTERNAL DIAMETER min. 500 mm max 6000 mm INTERNAL DIAMETER min. 1100 mm max 6000 mm NORGAU DIGITAL DISPLAY HANDLE WITH BUTTONS TITANIUM STRUCTURE ADJUSTABLE REFERENCE Measuring range mm 044 150 Resolution mm Mass kg EXTERNAL DIAMETER min. 500 mm max 6000 mm INTERNAL DIAMETER min. 1100 mm max 6000 mm 052 001 38 Software for statistic measurement 053 Diameter mm Accuracy mm 500 0018 1000 0043 1500 0085 2000 0143 2500 0218 3000 0310 4000 0543 5000 0843 6000 1210 Optional Accessory 044 150 053 Software 044 144 Circumference Diameter Tape Measures For measuring circumference and reading diameter at the same time on rotationally symmetrical parts With vernier Accuracy according DIN 866 Tape width 16 mm Measuring range circumference mm 044 144. Measuring diameter mm Readout mm 60-950 001 20 - 300 010 940-2200 002 300 - 700 010 2190-3460 003 700 - 1100 010 Measuring range circumference mm 044 144. Measuring diameter mm Readout mm 3450-4720 004 1100 - 1500 010 010 Stainless steel versions available on request 005 NORGAU 451 Measuring Instruments and Equipment 044 150
