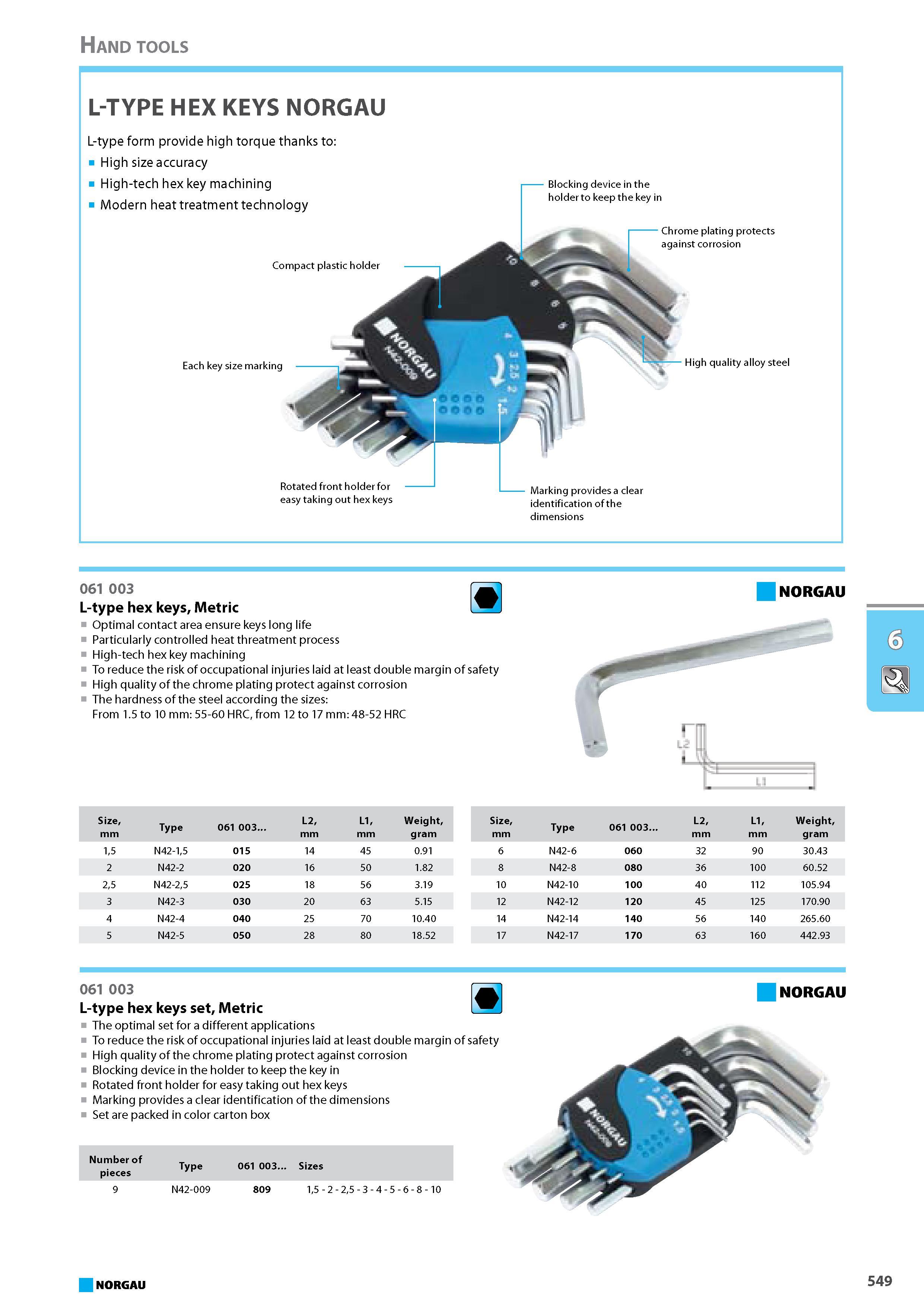

565 Каталог NORGAU 2014 Инструменты Оборудование Стр.549 |
|||||
L-type hex keys Metric Optimal contact area ensure keys long life Particularly controlled heat threatment process High-tech hex key machining To reduce the risk of occL-type hex keys Metric Optimal contact area ensure keys long life Particularly controlled heat threatment process High-tech hex key machining To reduce the risk of occupational injuries laid at least double margin of safety High quality of the chrome plating protect against corrosion The hardness of the steel according the sizes From 1.5 to 10 mm 55-60 HRC from 12 to 17 mm 48-52 HRC Size mm Type 061 003 L2 mm L1 mm Weight gram 15 N42-15 015 14 45 0.91 2 N42-2 020 16 50 1.82 25 N42-25 025 18 56 3.19 3 N42-3 030 20 63 5.15 4 N42-4 040 25 70 10.40 5 N42-5 050 28 80 18.52 Size mm Type 061 003 L2 mm L1 mm Weight gram 6 N42-6 060 32 90 30.43 8 N42-8 080 36 100 60.52 10 N42-10 100 40 112 105.94 12 N42-12 120 45 125 170.90 14 N42-14 140 56 140 265.60 17 N42-17 170 63 160 442.93 NORGAU Number of Type 061 003 Sizes pieces 061 003 L-type hex keys set Metric The optimal set for a different applications To reduce the risk of occupational injuries laid at least double margin of safety High quality of the chrome plating protect against corrosion Blocking device in the holder to keep the key in Rotated front holder for easy taking out hex keys Marking provides a clear identification of the dimensions Set are packed in color carton box N42-009 809 15 - 2 - 25 - 3 - 4 - 5 - 6 - 8 - 10 NORGAU NORGAU 549 Hand tools LTYPE HEX KEYS NORGAU L-type form provide high torque thanks to High size accuracy High-tech hex key machining Modern heat treatment technology Compact plastic holder Rotated front holder for easy taking out hex keys High quality alloy steel Marking provides a clear identification of the dimensions Each key size marking Blocking device in the holder to keep the key in Chrome plating protects against corrosion 061 003 |
|||||
