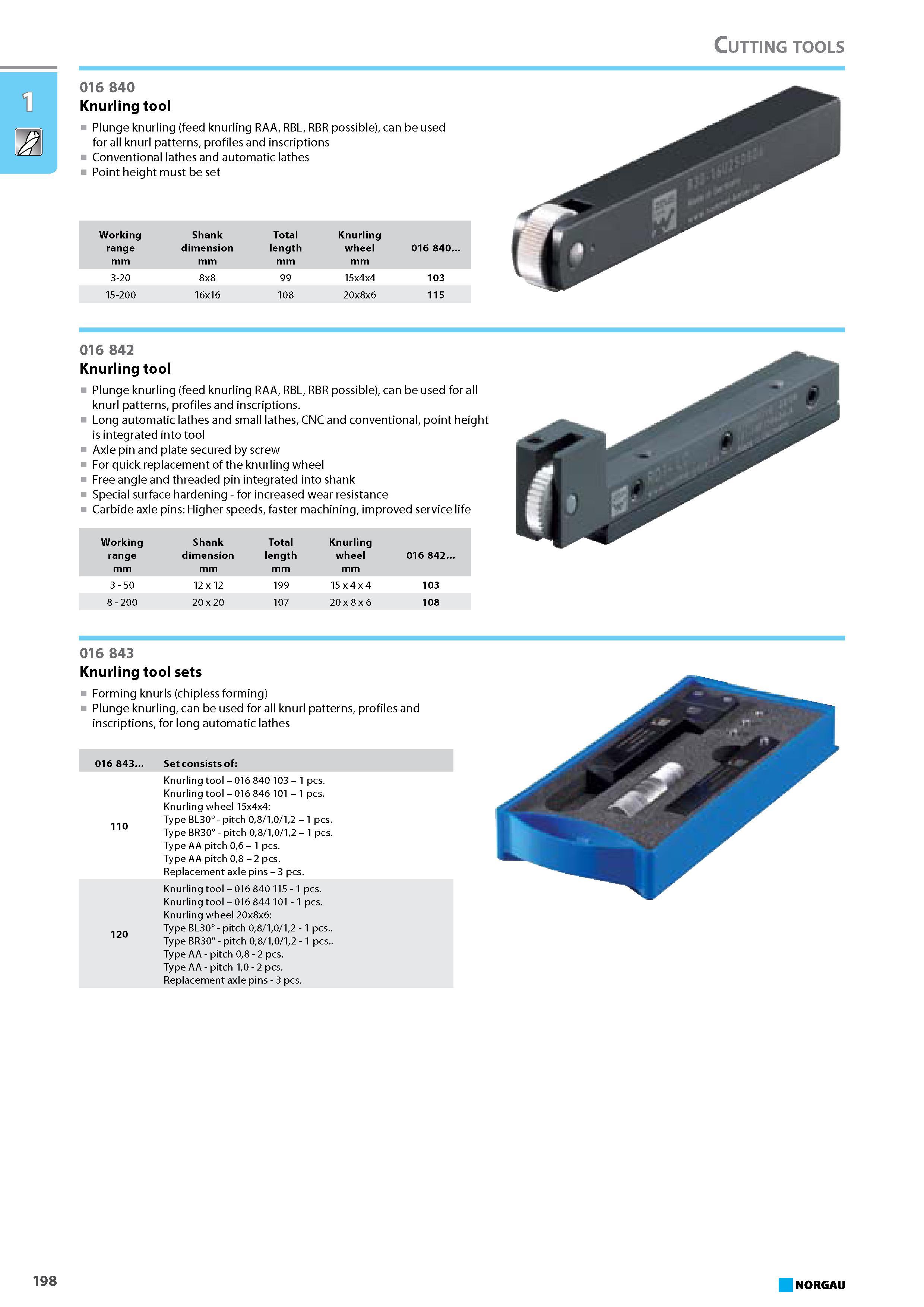

Knurling tool Plunge knurling feed knurling RAA RBL RBR possible can be used for all knurl patterns profiles and inscriptions Conventional lathes and automatic lathes

Knurling tool Plunge knurling feed knurling RAA RBL RBR possible can be used for all knurl patterns profiles and inscriptions Conventional lathes and automatic lathes Point height must be set Working Shank Total Knurling range dimension length wheel 016 840 mm 3-20 8x8 99 15x4x4 103 15-200 16x16 108 20x8x6 115 016 842 Knurling tool Plunge knurling (feed knurling RAA RBL RBR possible) can be used for all knurl patterns profiles and inscriptions. Long automatic lathes and small lathes CNC and conventional point height is integrated into tool Axle pin and plate secured by screw For quick replacement of the knurling wheel Free angle and threaded pin integrated into shank Special surface hardening - for increased wear resistance Carbide axle pins Higher speeds faster machining improved service life Working Shank Total Knurling range dimension length wheel 016 842 mm 3 - 50 12 x 12 199 15 x 4 x 4 103 8 - 200 20 x 20 107 20 x 8 x 6 108 016 843 Knurling tool sets Forming knurls (chipless forming) Plunge knurling can be used for all knurl patterns profiles and inscriptions for long automatic lathes 016 843 110 120 Set consists of Knurling tool - 016 840 103 - 1 pcs. Knurling tool - 016 846 101 - 1 pcs. Knurling wheel 15x4x4 Type BL30 - pitch 08 10 12 - 1 pcs. Type BR30 - pitch 08 10 12 - 1 pcs. Type AA pitch 06 - 1 pcs. Type AA pitch 08 - 2 pcs. Replacement axle pins - 3 pcs. Knurling tool - 016 840 115 - 1 pcs. Knurling tool - 016 844 101 - 1 pcs. Knurling wheel 20x8x6 Type BL30 - pitch 08 10 12 - 1 pcs Type BR30 - pitch 08 10 12 - 1 pcs Type AA - pitch 08 - 2 pcs. Type AA - pitch 10 - 2 pcs. Replacement axle pins - 3 pcs. 198 NORGAU Cutting tools 016 840
