| Каталог NORGAU 2015 Инструмент (Всего 832 стр.)

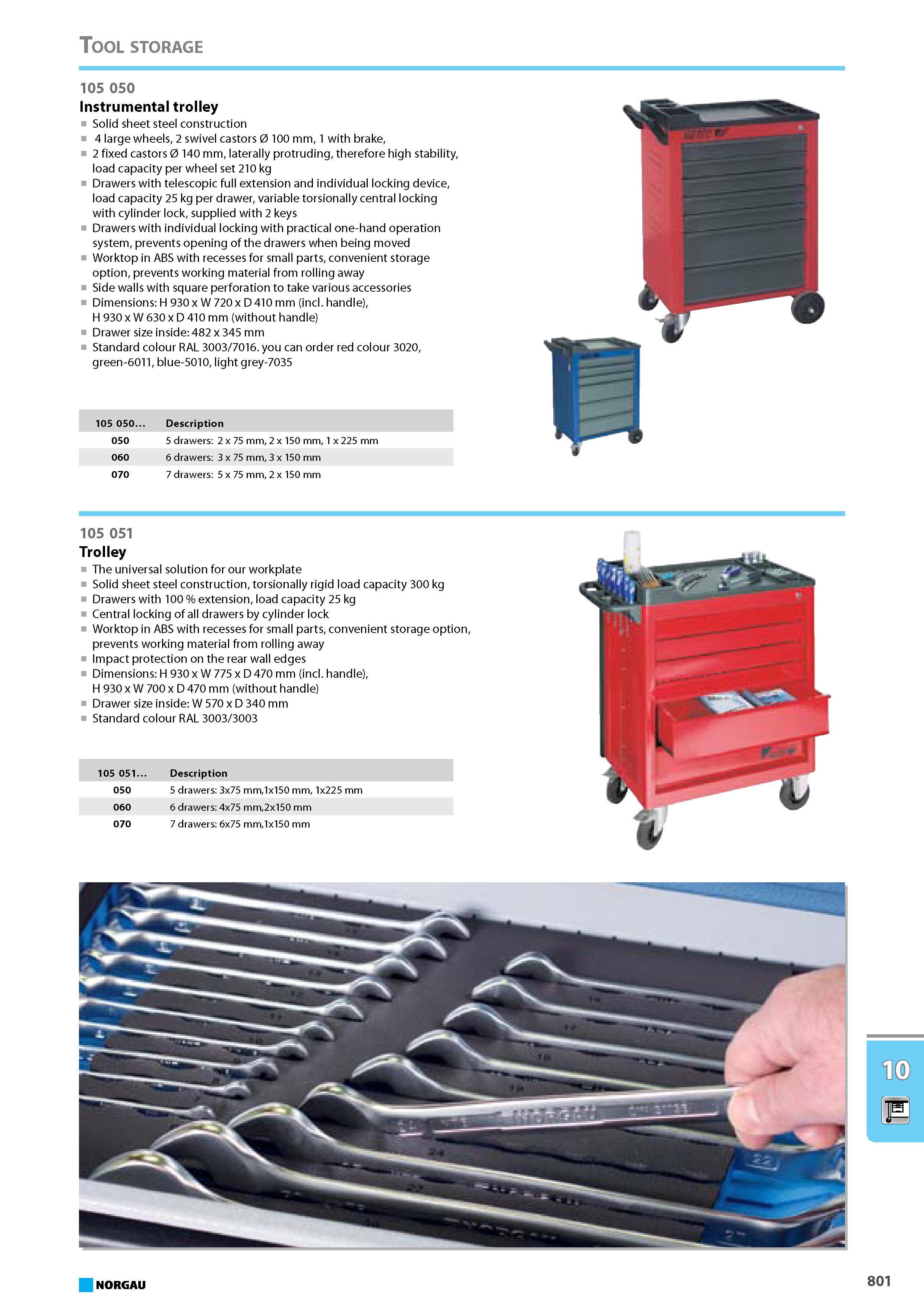

817 Каталог NORGAU 2014 Инструменты Оборудование Стр.801

817 Instrumental trolley Solid sheet steel construction 4 large wheels 2 swivel castors 0 100 mm 1 with brake 2 fixed castors 0 140 mm laterally protruding therefore high Каталог NORGAU 2015 Инструмент режущий измерительный слесарно-монтажный Стр. 801

Instrumental trolley Solid sheet steel construction 4 large wheels 2 swivel castors 0 100 mm 1 with brake 2 fixed castors 0 140 mm laterally protruding therefore high

Instrumental trolley Solid sheet steel construction 4 large wheels 2 swivel castors 0 100 mm 1 with brake 2 fixed castors 0 140 mm laterally protruding therefore high stability load capacity per wheel set 210 kg Drawers with telescopic full extension and individual locking device load capacity 25 kg per drawer variable torsionally central locking with cylinder lock supplied with 2 keys Drawers with individual locking with practical one-hand operation system prevents opening of the drawers when being moved Worktop in ABS with recesses for small parts convenient storage option prevents working material from rolling away Side walls with square perforation to take various accessories Dimensions H 930 x W 720 x D 410 mm (incl. handle) H 930 x W 630 x D 410 mm (without handle) Drawer size inside 482 x 345 mm Standard colour RAL 3003 7016. you can order red colour 3020 green-6011 blue-5010 light grey-7035 Description 050 5 drawers 2 x 75 mm 2 x 150 mm 1 x 225 mm 060 6 drawers 3 x 75 mm 3 x 150 mm 070 7 drawers 5 x 75 mm 2 x 150 mm 105 051 Trolley The universal solution for our workplate Solid sheet steel construction torsionally rigid load capacity 300 kg Drawers with 100 extension load capacity 25 kg Central locking of all drawers by cylinder lock Worktop in ABS with recesses for small parts convenient storage option prevents working material from rolling away Impact protection on the rear wall edges Dimensions H 930 x W 775 x D 470 mm (incl. handle) H 930 x W 700 x D 470 mm (without handle) Drawer size inside W 570 x D 340 mm Standard colour RAL 3003 3003 105 051 Description 050 5 drawers 3x75 mm1x150 mm 1x225 mm 060 6 drawers 4x75 mm2x150 mm 070 7 drawers 6x75 mm1x150 mm NORGAU 801 Tool storage 105 050
