| Обновлено 2020-05-02 16:41:30 |
|
NORGAU | Каталог NORGAU 2015 Инструмент (Всего 832 стр.) |
|||||
|

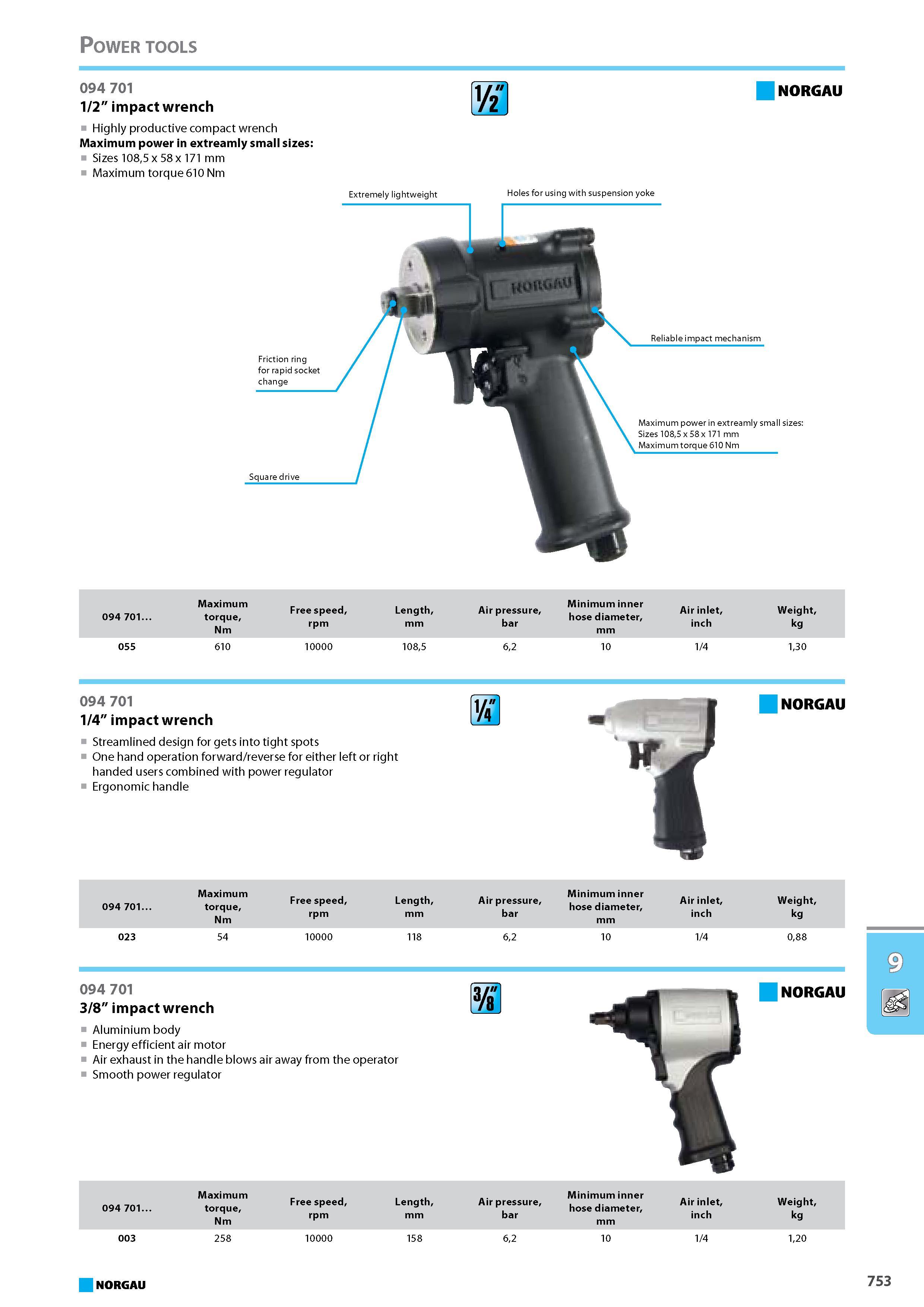

769 Каталог NORGAU 2014 Инструменты Оборудование Стр.753 |
|||||
impact wrench 1/2 Highly productive compact wrench Maximum power in extreamly small sizes Sizes 1085 x 58 x 171 mm Maximum torque 610 Nm Extremely lightweight Holes foimpact wrench 1/2" Highly productive compact wrench Maximum power in extreamly small sizes Sizes 1085 x 58 x 171 mm Maximum torque 610 Nm Extremely lightweight Holes for using with suspension yoke NORGAU Friction ring for rapid socket change Square drive Reliable impact mechanism Maximum power in extreamly small sizes Sizes 1085 x 58 x 171 mm Maximum torque 610 Nm 094 701. Maximum torque Nm Free speed rpm Length mm Air pressure bar Minimum inner hose diameter mm Air inlet inch Weight kg 055 610 10000 1085 62 10 1 4 130 094 701 1/4" impact wrench Streamlined design for gets into tight spots One hand operation forward reverse for either left or right handed users combined with power regulator Ergonomic handle 094 701. Maximum torque Nm Free speed rpm Length mm Air pressure bar Minimum inner hose diameter mm Air inlet inch Weight kg 023 54 10000 118 62 10 1 4 088 094 701 3/8" impact wrench Aluminium body Energy efficient air motor Air exhaust in the handle blows air away from the operator Smooth power regulator 094 701. Maximum torque Nm Free speed rpm Length mm Air pressure bar Minimum inner hose diameter mm Air inlet inch Weight kg 003 258 10000 158 62 10 1 4 120 m NORGAU NORGAU 753 Power tools 094 701 |
|||||
