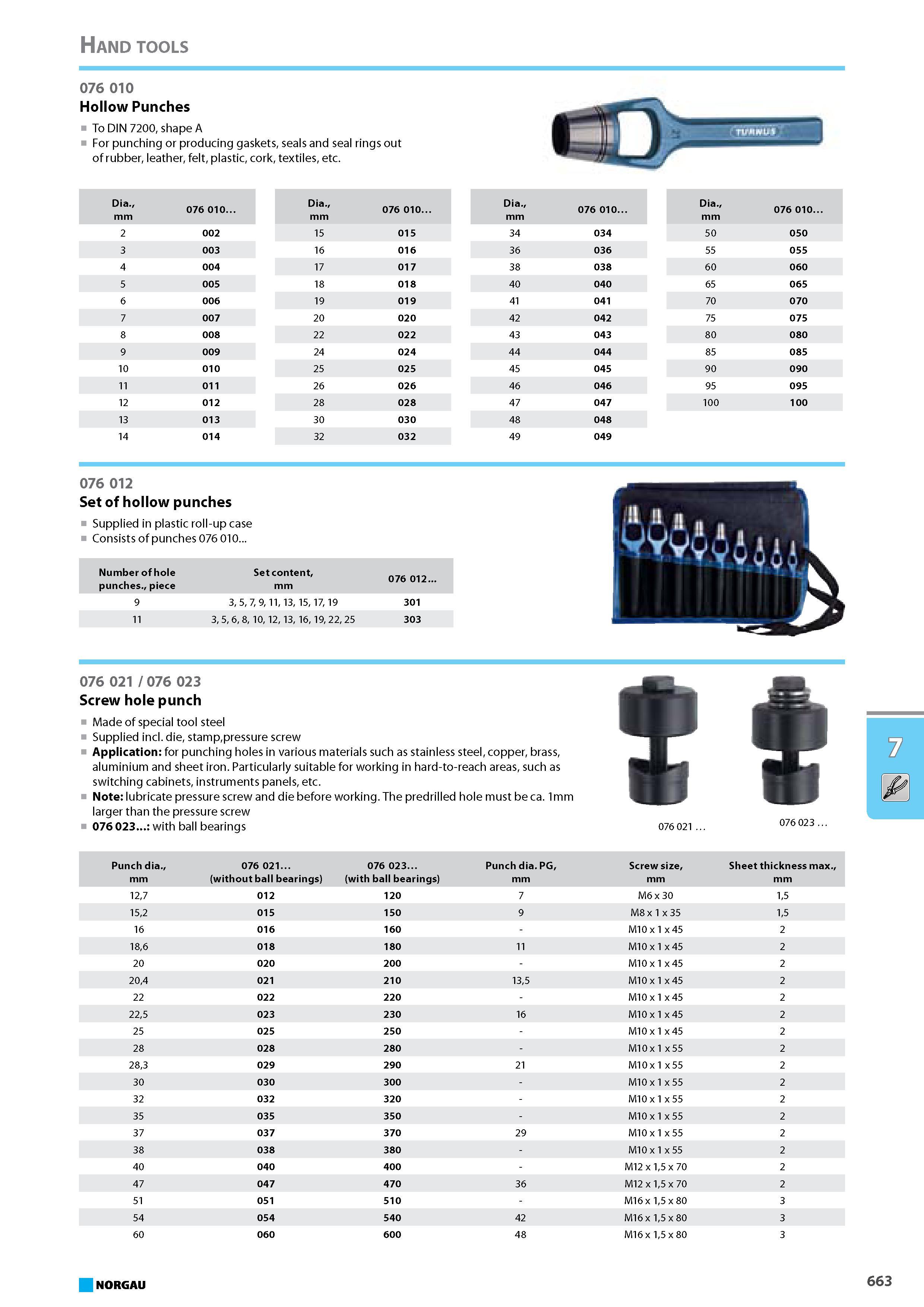

Hollow Punches To DIN 7200 shape A For punching or producing gaskets seals and seal rings out of rubber leather felt plastic cork textiles etc. 076 012 Set of hollow punches Supplied in plastic roll-up case Consists of punches 076 010 Number of hole Set content 076 012 punches. piece mm 9 3 5 7 9 11 13 15 17 19 301 11 3 5 6 8 10 12 13 16 19 22 25 303 076 021 076 023 Screw hole punch Made of special tool steel Supplied incl. die stamppressure screw Application for punching holes in various materials such as stainless steel copper brass aluminium and sheet iron. Particularly suitable for working in hard-to-reach areas such as switching cabinets instruments panels etc. Note lubricate pressure screw and die before working. The predrilled hole must be ca. 1mm larger than the pressure screw 076 023 with ball bearings 076 021 Punch dia. mm 076 021 (without ball bearings) 076 023. (with ball bearings) Punch dia. PG mm Screw size mm Sheet thickness max. mm 127 012 120 7 M6 x 30 15 152 015 150 9 M8 x 1 x 35 15 16 016 160 - M10 x 1 x 45 2 186 018 180 11 M10 x 1 x 45 2 20 020 200 - M10 x 1 x 45 2 204 021 210 135 M10 x 1 x 45 2 22 022 220 - M10 x 1 x 45 2 225 023 230 16 M10 x 1 x 45 2 25 025 250 - M10 x 1 x 45 2 28 028 280 - M10 x 1 x 55 2 283 029 290 21 M10 x 1 x 55 2 30 030 300 - M10 x 1 x 55 2 32 032 320 - M10 x 1 x 55 2 35 035 350 - M10 x 1 x 55 2 37 037 370 29 M10 x 1 x 55 2 38 038 380 - M10 x 1 x 55 2 40 040 400 - M12 x 15 x 70 2 47 047 470 36 M12 x 15 x 70 2 51 051 510 - M16 x 15 x 80 3 54 054 540 42 M16 x 15 x 80 3 60 060 600 48 M16 x 15 x 80 3 NORGAU 663 Hand tools 076 010
