NORGAU | Каталог NORGAU 2015 Инструмент (Всего 832 стр.) |
|||||
|
729 Каталог NORGAU 2014 Инструменты Оборудование Стр.713 |
|||||

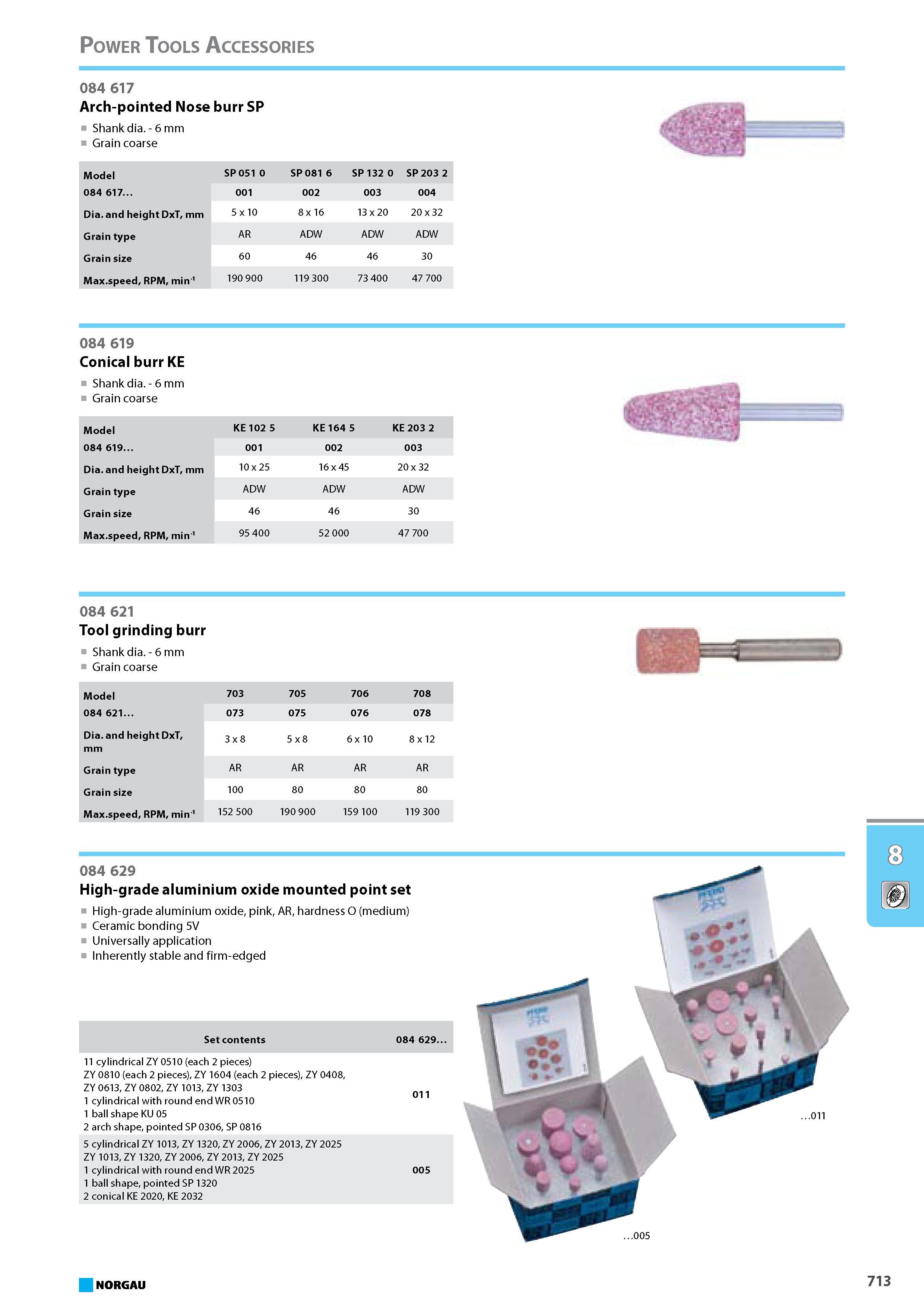

High-grade aluminium oxide mounted point set High-grade aluminium oxide pink AR hardness (medium) Ceramic bonding 5V Universally application Inherently stable and firmHigh-grade aluminium oxide mounted point set High-grade aluminium oxide pink AR hardness (medium) Ceramic bonding 5V Universally application Inherently stable and firm-edged Set contents 11 cylindrical ZY 0510 (each 2 pieces) ZY 0810 (each 2 pieces) ZY 1604 (each 2 pieces) ZY 0408 ZY 0613 ZY 0802 ZY 1013 ZY 1303 1 cylindrical with round end WR 0510 1 ball shape KU 05 2 arch shape pointed SP 0306 SP 0816 5 cylindrical ZY 1013 ZY 1320 ZY 2006 ZY 2013 ZY 2025 ZY 1013 ZY 1320 ZY 2006 ZY 2013 ZY 2025 1 cylindrical with round end WR 2025 1 ball shape pointed SP 1320 2 conical KE 2020 KE 2032 011 005 NORGAU 713 Power Tools Accessories 084 617 Arch-pointed Nose burr SP Shank dia. - 6 mm Grain coarse Model SP 051 0 SP 081 6 SP 132 0 SP 203 2 084 617. 001 002 003 004 Dia. and height DxT mm 5 x 10 8 x 16 13 x 20 20 x 32 Grain type AR ADW ADW ADW Grain size 60 46 46 30 Max.speed RPM min-1 190 900 119 300 73 400 47 700 084 619 Conical burr KE Shank dia. - 6 mm Grain coarse Model KE102 5 KE164 5 KE 203 2 084 619. 001 002 003 Dia. and height DxT mm 10 x 25 16 x 45 20 x 32 Grain type ADW ADW ADW Grain size 46 46 30 Max.speed RPM min-1 95 400 52 000 47 700 084 621 Tool grinding burr Shank dia. - 6 mm Grain coarse Model 703 705 706 708 084 621. 073 075 076 078 Dia. and height DxT mm 3 x 8 5 x 8 6 x 10 8 x 12 Grain type AR AR AR AR Grain size 100 80 80 80 Max.speed RPM min-1 152 500 190 900 159 100 119 300 084 629 |
|||||
