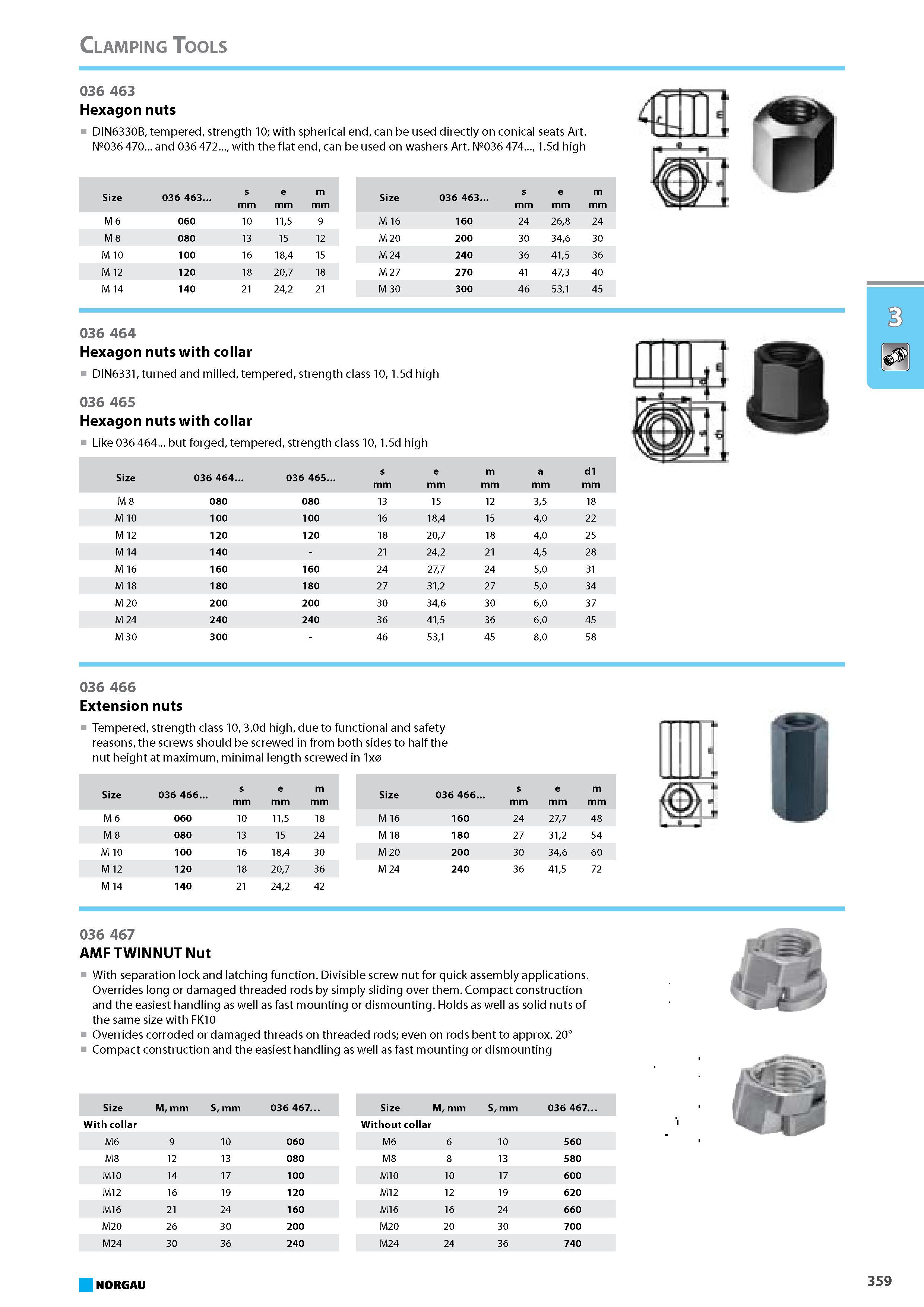

Hexagon nuts DIN6330B tempered strength 10 with spherical end can be used directly on conical seats Art. N036 470. and 036 472 with the flat end can Size 036 463 s mm

Hexagon nuts DIN6330B tempered strength 10 with spherical end can be used directly on conical seats Art. N036 470. and 036 472 with the flat end can Size 036 463 s mm e mm m mm M 6 060 10 115 9 M 8 080 13 15 12 M 10 100 16 184 15 M 12 120 18 207 18 M 14 140 21 242 21 Size 036 463 s mm e mm m mm M 16 160 24 268 24 M 20 200 30 346 30 M 24 240 36 415 36 M 27 270 41 473 40 M 30 300 46 531 45 036 464 Hexagon nuts with collar DIN6331 turned and milled tempered strength class 10 1.5d high 036 465 Hexagon nuts with collar Like 036 464 but forged tempered strength class 10 1.5d high Size 036 464 036 465 s mm e mm m mm a mm d1 mm M 8 080 080 13 15 12 35 18 M 10 100 100 16 184 15 40 22 M 12 120 120 18 207 18 40 25 M 14 140 - 21 242 21 45 28 M 16 160 160 24 277 24 50 31 M 18 180 180 27 312 27 50 34 M 20 200 200 30 346 30 60 37 M 24 240 240 36 415 36 60 45 M 30 300 - 46 531 45 80 58 036 466 Extension nuts Tempered strength class 10 3.0d high due to functional and safety reasons the screws should be screwed in from both sides to half the nut height at maximum/minimal length screwed in 1x0 Size 036 466 s mm e mm m mm M 6 060 10 115 18 M 8 080 13 15 24 M 10 100 16 184 30 M 12 120 18 207 36 M 14 140 21 242 42 Size 036 466 s mm e mm m mm M 16 160 24 277 48 M 18 180 27 312 54 M 20 200 30 346 60 M 24 240 36 415 72 036 467 AMF TWINNUT Nut With separation lock and latching function. Divisible screw nut for quick assembly applications. Overrides long or damaged threaded rods by simply sliding over them. Compact construction and the easiest handling as well as fast mounting or dismounting. Holds as well as solid nuts of the same size with FK10 Overrides corroded or damaged threads on threaded rods even on rods bent to approx. 20 Compact construction and the easiest handling as well as fast mounting or dismounting Size M mm S mm 036 467. With collar M6 9 10 060 M8 12 13 080 M10 14 17 100 M12 16 19 120 M16 21 24 160 M20 26 30 200 M24 30 36 240 Size M mm S mm 036 467. Without collar M6 6 10 560 M8 8 13 580 M10 10 17 600 M12 12 19 620 M16 16 24 660 M20 20 30 700 M24 24 36 740 NORGAU 359 Clamping Tools 036 463
