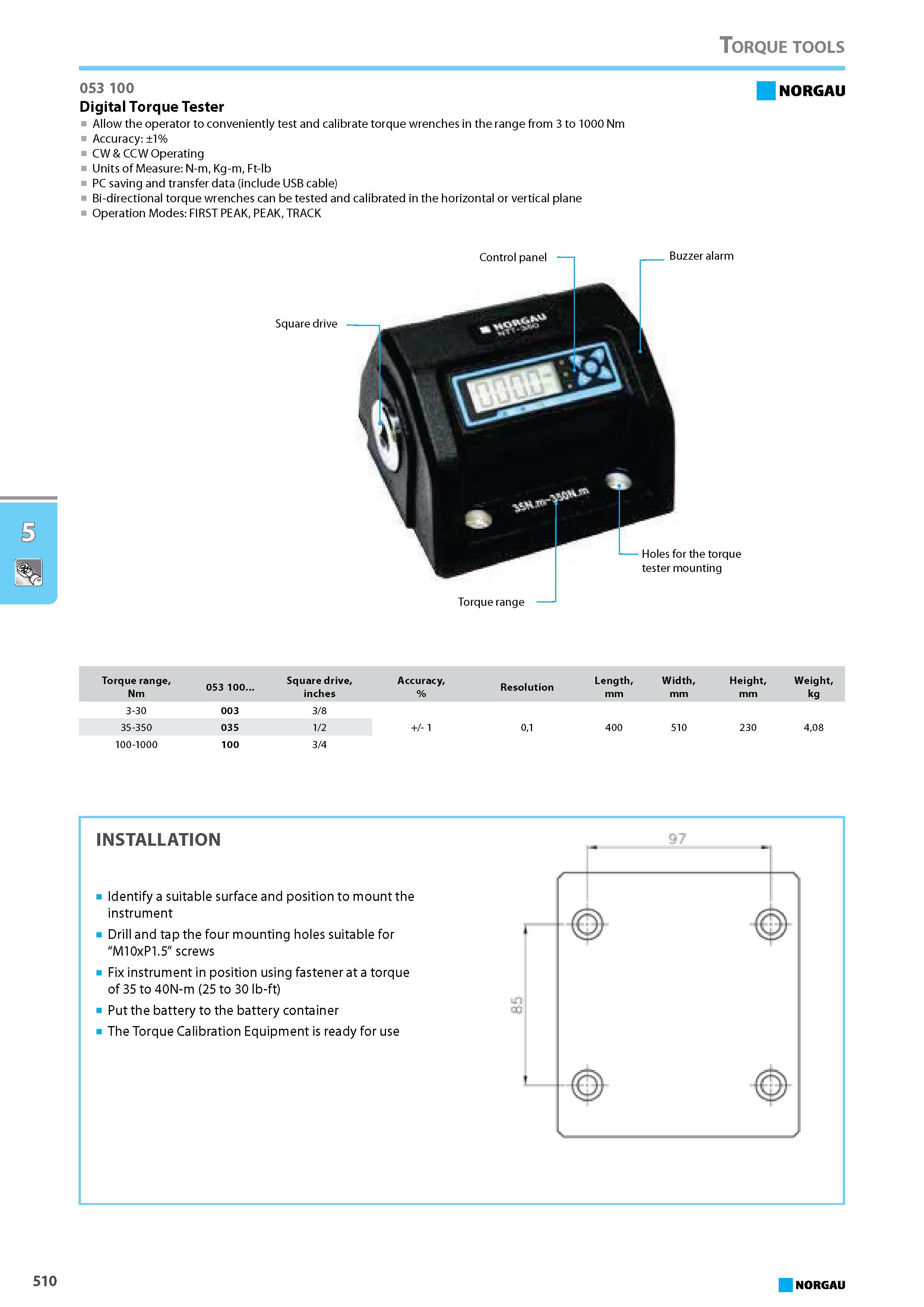

Digital Torque Tester Allow the operator to conveniently test and calibrate torque wrenches in the range from 3 to 1000 Nm Accuracy 1% CW & CCW Operating Units of Measure N-m Kg-m Ft-lb PC saving and transfer data (include USB cable) Bi-directional torque wrenches can be tested and calibrated in the horizontal or vertical plane Operation Modes FIRST PEAK PEAK TRACK Control panel Square drive Buzzer alarm Holes for the torque tester mounting Torque range Torque range Nm 053 100 Square drive inches Accuracy Resolution Length mm Width mm Height mm Weight kg 3-30 003 3 8 35-350 035 1 2 - 1 01 400 510 230 408 3 4 100-1000 100 INSTALLATION Identify a suitable surface and position to mount the instrument Drill and tap the four mounting holes suitable for "M10xP1.5" screws Fix instrument in position using fastener at a torque of 35 to 40N-m (25 to 30 lb-ft) Put the battery to the battery container The Torque Calibration Equipment is ready for use &7 510 NORGAU Torque tools 053 100
