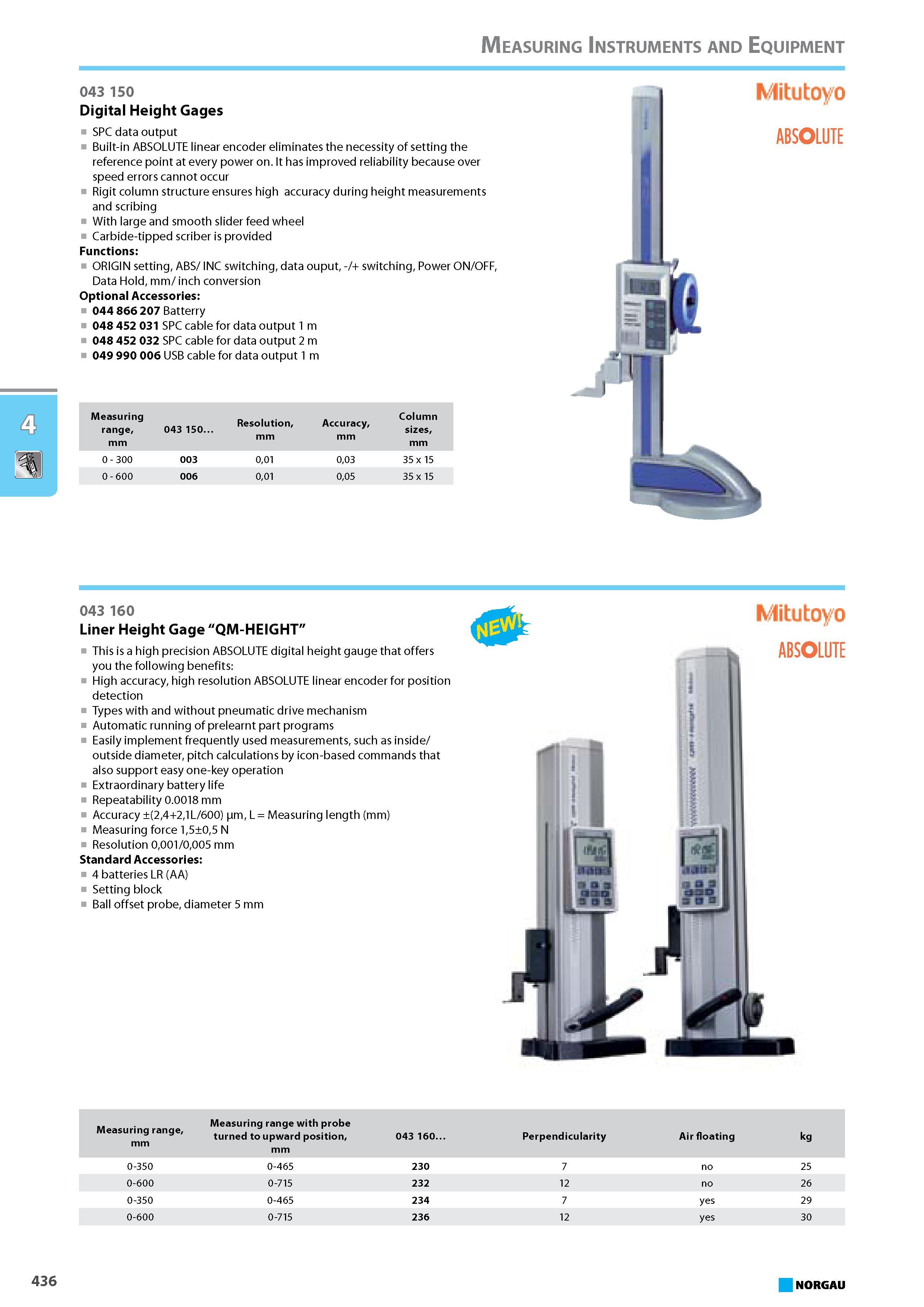

Digital Height Gages SPC data output Built-in ABSOLUTE linear encoder eliminates the necessity of setting the reference point at every power on. It has improved reliability because over speed errors cannot occur Rigit column structure ensures high accuracy during height measurements and scribing With large and smooth slider feed wheel Carbide-tipped scriber is provided Functions ORIGIN setting ABS INC switching data ouput - switching Power ON OFF Data Hold mm inch conversion Optional Accessories 044 866 207 Batterry 048 452 031 SPC cable for data output 1 m 048 452 032 SPC cable for data output 2 m 049 990 006 USB cable for data output 1 m Measuring range mm 043 150. Resolution mm Accuracy mm Column sizes mm 0 - 300 003 0(01 003 35 x 15 0 - 600 006 0(01 005 35 x 15 043 160 Liner Height Gage "QM-HEIGHT" This is a high precision ABSOLUTE digital height gauge that offers you the following benefits High accuracy high resolution ABSOLUTE linear encoder for position detection Types with and without pneumatic drive mechanism Automatic running of prelearnt part programs Easily implement frequently used measurements such as inside outside diameter pitch calculations by icon-based commands that also support easy one-key operation Extraordinary battery life Repeatability 0.0018 mm Accuracy (24+21L 600) pm L Measuring length (mm) Measuring force 1505 N Resolution 0001 0005 mm Standard Accessories 4 batteries LR (AA) Setting block Ball offset probe diameter 5 mm Measuring range mm Measuring range with probe turned to upward position mm 043 160. Perpendicularity Air floating kg 0-350 0-465 230 7 no 25 0-600 0-715 232 12 no 26 0-350 0-465 234 7 yes 29 0-600 0-715 236 12 yes 30 Measuring Instruments and Equipment 436 043 150
