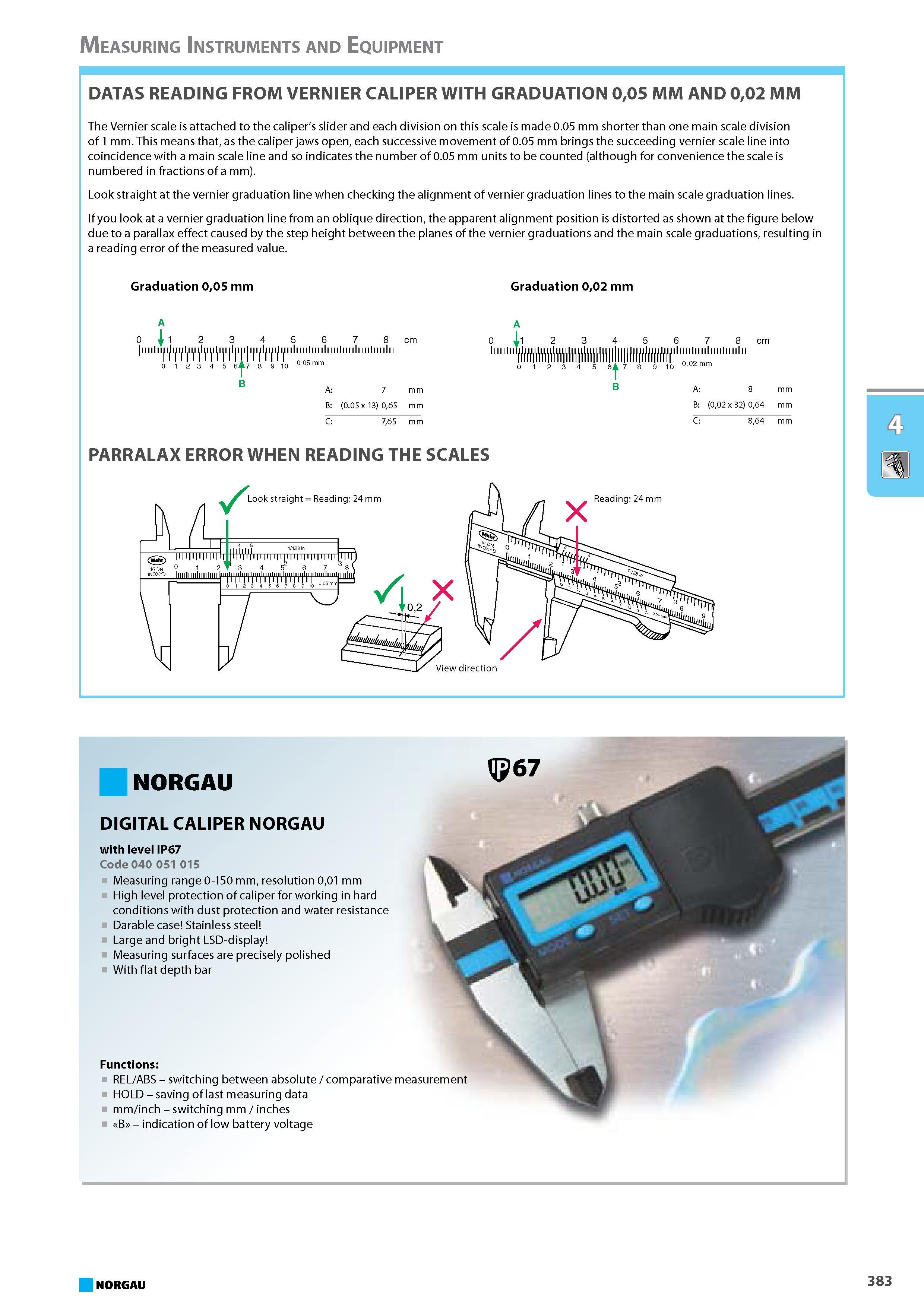

DATAS READING FROM VERNIER CALIPER WITH GRADUATION 005 MM AND 002 MM The Vernier scale is attached to the caliper's slider and each division on this scale is made 0.05 mm shorter than one main scale division of 1 mm. This means that as the caliper jaws open each successive movement of 0.05 mm brings the succeeding vernier scale line into coincidence with a main scale line and so indicates the number of 0.05 mm units to be counted (although for convenience the scale is numbered in fractions of a mm). Look straight at the vernier graduation line when checking the alignment of vernier graduation lines to the main scale graduation lines. If you look at a vernier graduation line from an oblique direction the apparent al ig nment position is distorted as shown at the figure below due to a parallax effect caused by the step height between the planes of the vernier graduations and the main scale graduations resulting in a reading error of the measured value. Graduation 005 mm g 0 1 2 3 4 5 6 7 8 cm 0 1 2 3 4 5 6 7 8 9 10 0 05 mm Graduation 002 mm g 0 1 2345678 cm 0 1 23456789 10 002 mm A 7 mm B A 8 mm B (0.05 x 13) 065 mm B (002 x 32) 064 mm C 765 mm C 864 mm PARRALAX ERROR WHEN READING THE SCALES NORGAU DIGITAL CALIPER NORGAU with level IP67 Code 040 051 015 Measuring range 0-150 mm resolution 001 mm High level protection of caliper for working in hard conditions with dust protection and water resistance Darable case Stainless steel Large and bright LSD-display Measuring surfaces are precisely polished With flat depth bar Functions REL ABS - switching between absolute comparative measurement HOLD - saving of last measuring data mm inch - switching mm inches B - indication of low battery voltage B NORGAU 383 Measuring Instruments and Equipment
