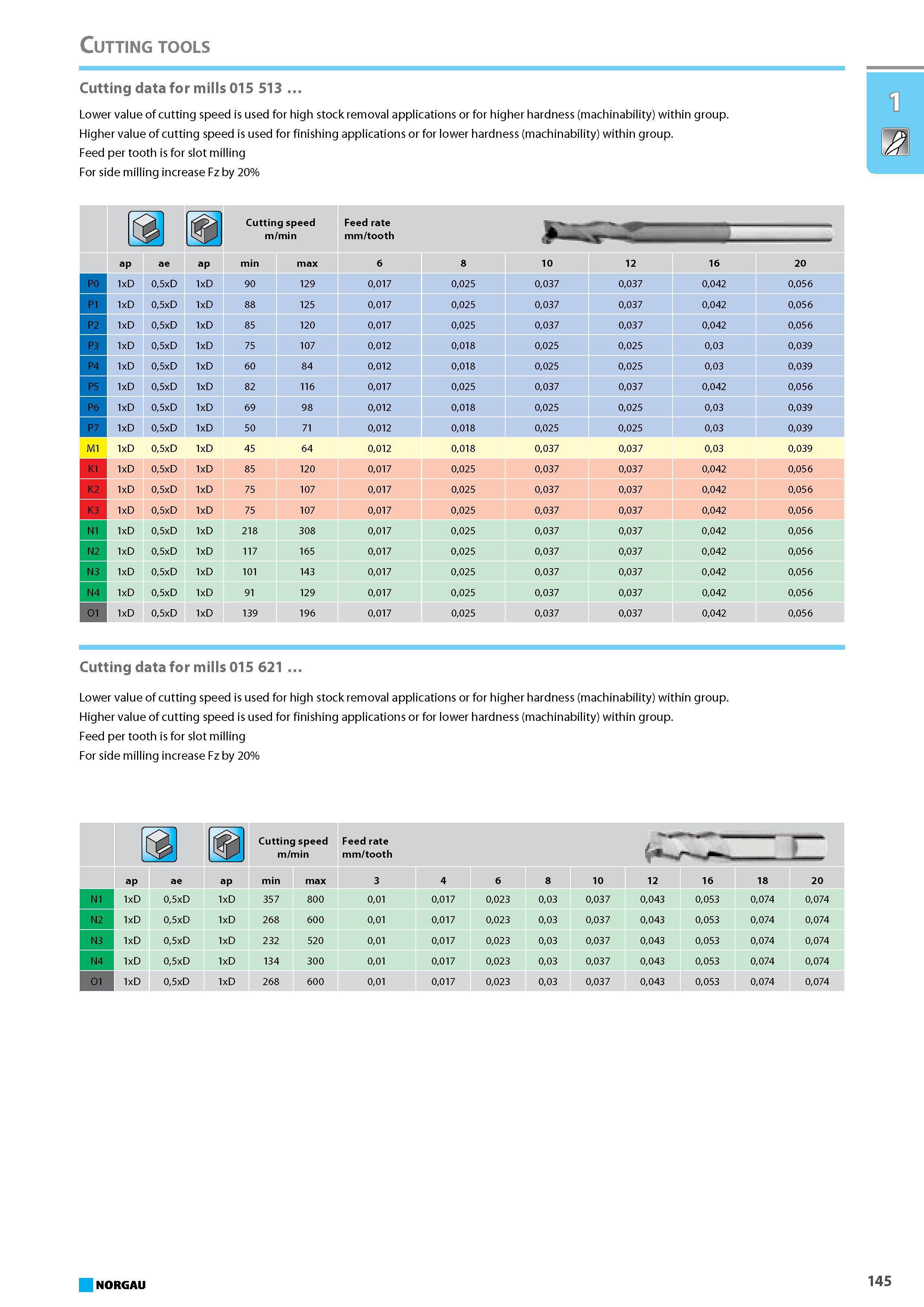

Cutting data for mills 015 513 Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Feed per tooth is for slot milling For side milling increase Fz by 20% 1 m Cutting speed m/min Feed rate mm tooth J ap ae ap min max 6 8 10 12 16 20 P0 1xD 05xD 1xD 90 129 0017 0025 0037 0037 0042 0056 P1 1xD 05xD 1xD 88 125 0017 0025 0037 0037 0042 0056 P2 1xD 05xD 1xD 85 120 0017 0025 0037 0037 0042 0056 P3 1xD 05xD 1xD 75 107 0012 0018 0025 0025 003 0039 P4 1xD 05xD 1xD 60 84 0012 0018 0025 0025 003 0039 P5 1xD 05xD 1xD 82 116 0017 0025 0037 0037 0042 0056 P6 1xD 05xD 1xD 69 98 0012 0018 0025 0025 003 0039 P7 1xD 05xD 1xD 50 71 0012 0018 0025 0025 003 0039 M1 1xD 05xD 1xD 45 64 0012 0018 0037 0037 003 0039 K1 1xD 05xD 1xD 85 120 0017 0025 0037 0037 0042 0056 K2 1xD 05xD 1xD 75 107 0017 0025 0037 0037 0042 0056 K3 1xD 05xD 1xD 75 107 0017 0025 0037 0037 0042 0056 N1 1xD 05xD 1xD 218 308 0017 0025 0037 0037 0042 0056 N2 1xD 05xD 1xD 117 165 0017 0025 0037 0037 0042 0056 N3 1xD 05xD 1xD 101 143 0017 0025 0037 0037 0042 0056 N4 1xD 05xD 1xD 91 129 0017 0025 0037 0037 0042 0056 O1 1xD 05xD 1xD 139 196 0017 0025 0037 0037 0042 0056 Cutting data for mills 015 621 Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Feed per tooth is for slot milling For side milling increase Fz by 20% Cutting speed m/min Feed rate mm tooth ap ap 10 12 16 18 20 N1 1xD 05xD 1xD 357 800 001 0017 0023 003 0037 0043 0053 0074 0074 N2 1xD 05xD 1xD 268 600 001 0017 0023 003 0037 0043 0053 0074 0074 N3 1xD 05xD 1xD 232 520 001 0017 0023 003 0037 0043 0053 0074 0074 N4 1xD 05xD 1xD 134 300 001 0017 0023 003 0037 0043 0053 0074 0074 01 1xD 05xD 1xD 268 600 001 0017 0023 003 0037 0043 0053 0074 0074 3 4 6 8 ae NORGAU 145 Cutting tools
