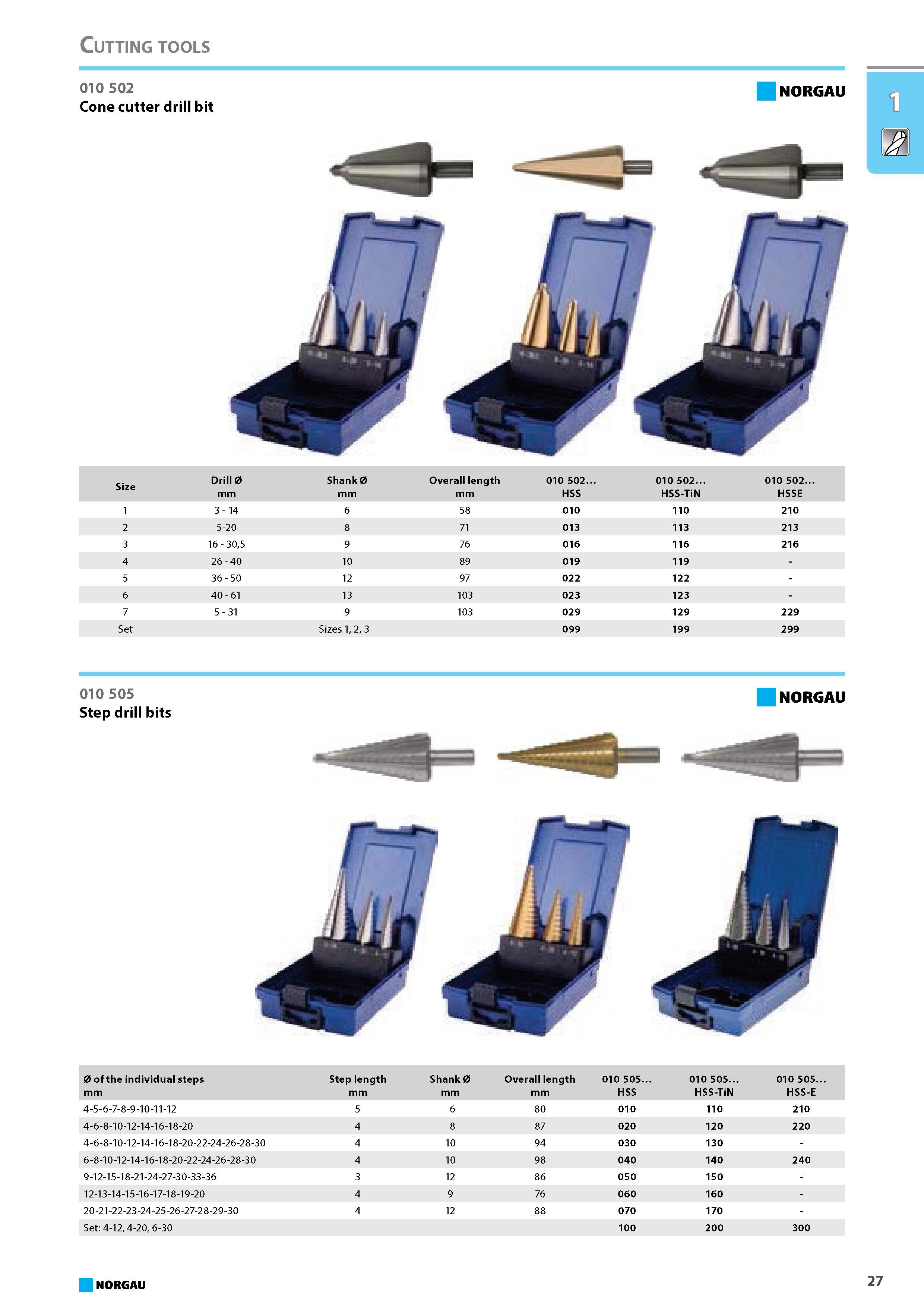

Cone cutter drill bit NORGAU 1 Size Drill 0 mm Shank0 mm Overall length mm 010 502. HSS 010 502. HSS-TiN 010 502. HSSE 1 3 - 14 6 58 010 110 210 2 5-20 8 71 013 113 213 3 16 - 305 9 76 016 116 216 4 26 - 40 10 89 019 119 - 5 36 - 50 12 97 022 122 - 6 40 - 61 13 103 023 123 - 7 5 - 31 9 103 029 129 229 Set Sizes 1 2 3 099 199 299 010 505 Step drill bits NORGAU 0 of the individual steps mm Step length mm Shank 0 mm Overall length mm 010 505. HSS 010 505. HSS-TiN 010 505. HSS-E 4-5-6-7-8-9-10-11-12 5 6 80 010 110 210 4-6-8-10-12-14-16-18-20 4 8 87 020 120 220 4-6-8-10-12-14-16-18-20-22-24-26-28-30 4 10 94 030 130 - 6-8-10-12-14-16-18-20-22-24-26-28-30 4 10 98 040 140 240 9-12-15-18-21-24-27-30-33-36 3 12 86 050 150 - 12-13-14-15-16-17-18-19-20 4 9 76 060 160 - 20-21-22-23-24-25-26-27-28-29-30 4 12 88 070 170 - Set 4-12 4-20 6-30 100 200 300 NORGAU 27 Cutting tools 010 502
