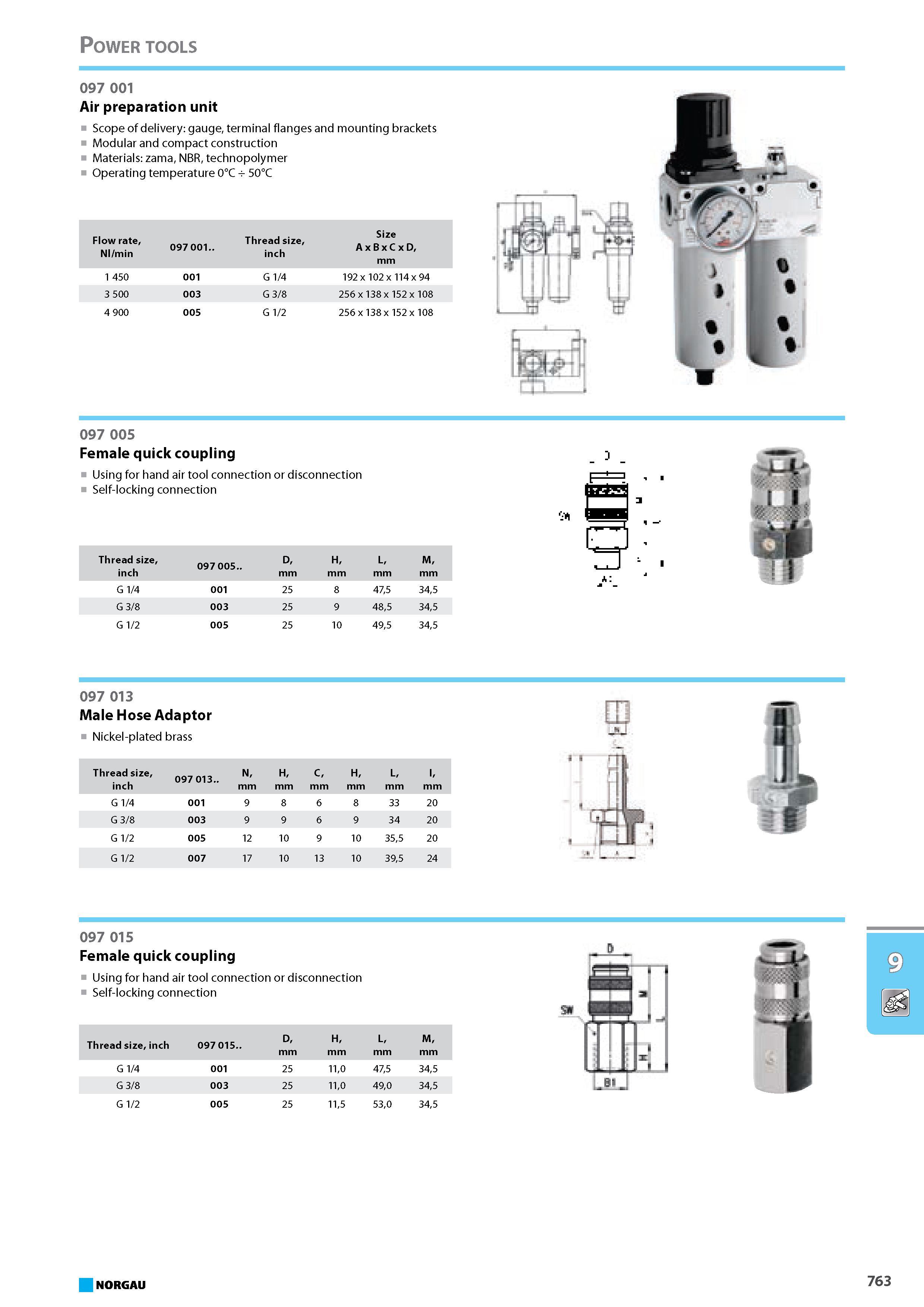

Air preparation unit Scope of delivery gauge terminal flanges and mounting brackets Modular and compact construction Materials zama NBR technopolymer Operating temperature 0C 50C Flow rate Nl min 097 001 Thread size inch Size A x B x C x D mm 1 450 001 G 1 4 192 x 102 x 114 x 94 3 500 003 G 3 8 256 x 138 x 152 x 108 4 900 005 G 1 2 256 x 138 x 152 x 108 097 005 Female quick coupling Using for hand air tool connection or disconnection Self-locking connection Thread size inch 097 005 D mm H mm L mm M mm G 1 4 001 25 8 475 345 G 3 8 003 25 9 485 345 G 1 2 005 25 10 495 345 097 013 Male Hose Adaptor Nickel-plated brass Thread size inch 097 013 N mm H mm C mm H mm L mm G 1 4 001 9 8 6 8 33 20 G 3 8 003 9 9 6 9 34 20 G 1 2 005 12 10 9 10 355 20 G 1 2 007 17 10 13 10 395 24 097 015 Female quick coupling Using for hand air tool connection or disconnection Self-locking connection Thread size inch 097 015 D mm H mm L mm M mm G 1 4 001 25 110 475 345 G 3 8 003 25 110 490 345 G 1 2 005 25 115 530 345 NORGAU 763 Power tools 097 001
