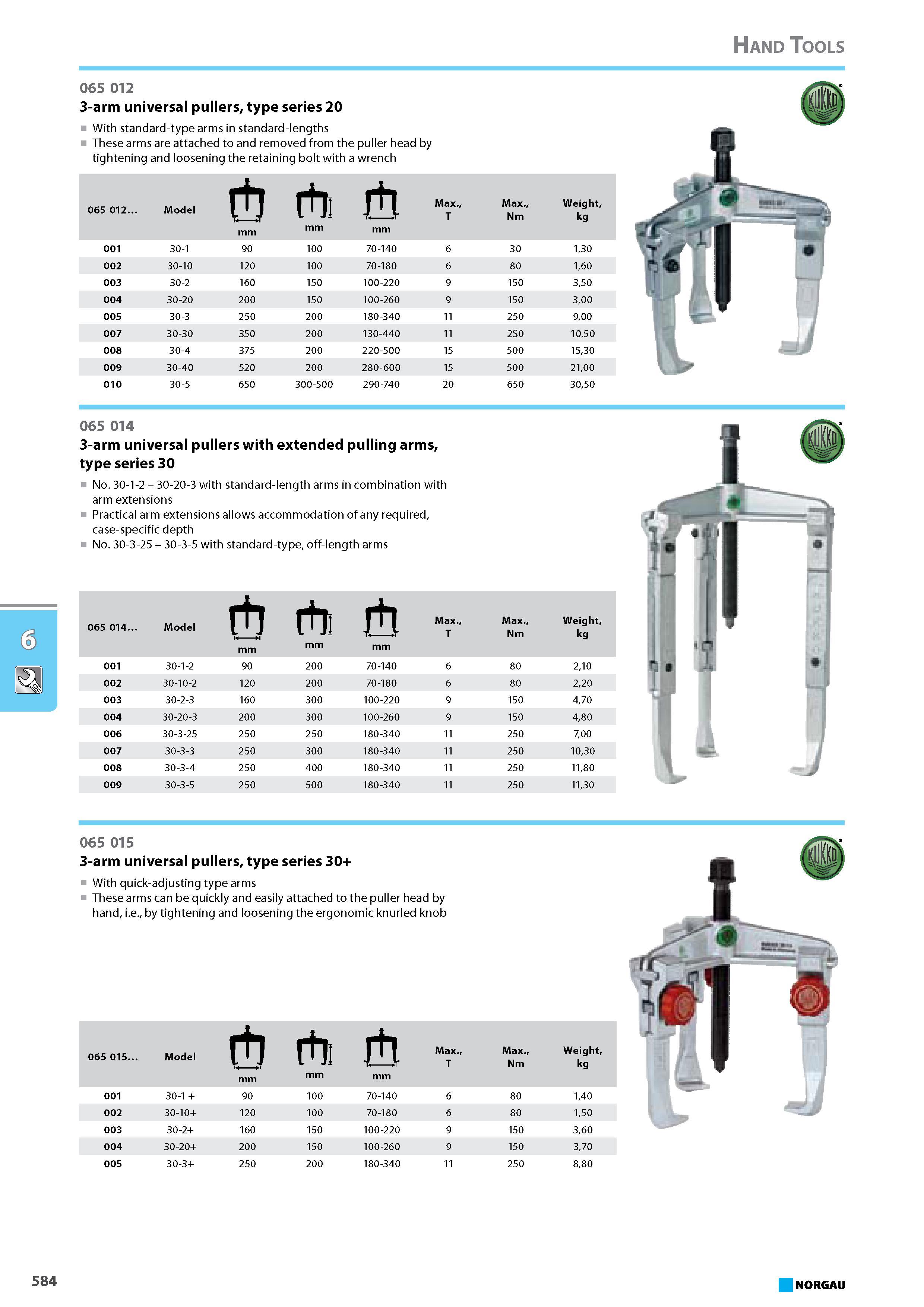

3-arm universal pullers type series 20 With standard-type arms in standard-lengths These arms are attached to and removed from the puller head by tightening and loosening the retaining bolt with a wrench 065 012 Model rt th Max. T Max. Weight Nm kg mm 001 30-1 90 100 70-140 6 30 130 002 30-10 120 100 70-180 6 80 160 003 30-2 160 150 100-220 9 150 350 004 30-20 200 150 100-260 9 150 300 005 30-3 250 200 180-340 11 250 900 007 30-30 350 200 130-440 11 2S0 1050 008 30-4 375 200 220-500 15 500 1530 009 30-40 520 200 280-600 15 500 2100 010 30-5 650 300-500 290-740 20 650 3050 065 014 3-arm universal pullers with extended pulling arms type series 30 No. 30-1-2 - 30-20-3 with standard-length arms in combination with arm extensions Practical arm extensions allows accommodation of any required case-specific depth No. 30-3-25 - 30-3-5 with standard-type off-length arms 065 014. Model rh ft Max. Max. Weight Nm kg mm 001 30-1-2 90 200 70-140 6 8 0 210 002 30-10-2 120 200 70-180 6 80 220 003 30-2-3 160 300 100-220 9 150 470 004 30-20-3 200 300 100-260 9 150 480 006 30-3-25 250 250 180-340 11 250 700 007 30-3-3 250 300 180-340 11 250 1030 008 30-3-4 250 400 180-340 11 250 1180 009 30-3-5 250 500 180-340 11 250 1130 065 015 3-arm universal pullers type series 30+ With quick-adjusting type arms These arms can be quickly and easily attached to the puller head by hand i.e. by tightening and loosening the ergonomic knurled knob rh rti 6 Max. Max. Weight Model 1 11 J 1 T Nm kg mm 001 30-1 90 100 70-140 6 80 140 002 30-10+ 120 100 70-180 6 80 150 003 30-2+ 160 150 100-220 9 150 360 004 30-20+ 200 150 100-260 9 150 370 005 30-3+ 250 200 180-340 11 250 880 NORGAU Hand Tools 584 065 012
